| Markets: |
North America,South America,Eastern Europe,Africa,Oceania,Mid East,Western Europe |
| Certificate: |
CE, SGS, Eurofins, ISO, Gts, BV |
| International Standard: |
Bs En124-1994 |
| Logo: |
Free Design According to The Customer's Request |
| Color: |
Black, Grey, Green, Blue, Yellow, etc. |
Product Description

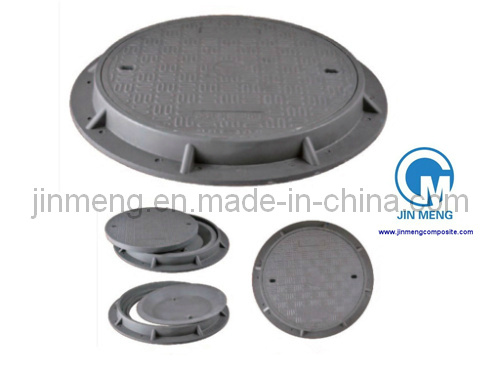

Jinmeng SMC composite manhole covers are strictly produced according to the BS EN124 standard.
Jinmeng SMC composite manhole covers own CE, Eurofins, SGS, BV, ISO9001: 2008, ISO14001 certificates.
The manhole covers can be lockable, watertight / waterproof, hinged.
Testing load can match A15, B125, C250, D400, E600, F900.
Jinmeng manhole covers are mainly exported to Europe, American, etc.
JINMENG SMC/FRP plastic manhole covers Advantages:
1. Against theft
JINMENG SMC manhole covers are non-metallic, non-conductive and non-sparking. It has no value of recycling, thus completely solving the problems caused by theft.
2. High load capacity
SMC manhole cover main components are fibreglass and unsaturated resin. JINMENG's patent is W-SMC which is the whole and the most hard material. It is strong enough to support any load. There's no problem for its load capacity as strong as ductile iron. JINMENG's existing moulds load capacity are A15, B125, C250, D400, E600.
3. Free design
It can be designed according to the user's demands, including color, logo, surface pattern, and any other specification.
4. Long life
Range of UV stable colours available that will not flake or crack. Minimum lifespan of 30 maintenance free years.
5. Well sealed
It can be used hermetically, and effectively prevent those poisonous gases leaking out from cesspool. Well sealled, no noise pollution or rebound.
6. Good wear and corrosion resistance
It will never rust because it has good wear and corrosion resistance.
7. High and low temperature resistance
Excellent insulator against heat ( from -40 degree to 300 degree)
8. Lighter weight and more competitive price
Compared with cast iron manhole covers, the weight of composite manhole cover especially SMC manhole cover is lighter. The result is composite manhole cover is more convenient to transport, install and repair.
In all, the price of composite manhole cover is much lower than the same specification cast iron covers.
JINMENG Manhole Covers Description
FRP Composite Manhole Covers
Standard: EN 124-1994
Loading capability: A15+, B125, C250, D400, E600
Material: Sheet Moulding Compound ( SMC )
SMC Manhole Cover in EN 124 with A15+, B125, C250, D400, E600, F900
Application:
Gas
Water
Main Road
TElecommunications
Petrochemical Installations
Underground Electrical Installations
Access to Pipework Chambers and Petroleum Storage Tanks.
JINMENG Composite Manhole Covers Sizes--Round SMC Composite Manhole Covers:
|
Sizes |
Remarks |
|
Clear Open 315mm A15+, B125, C250 |
Cover Dia 360mm |
|
|
Clear Open 450mm A15+, B125, C250 |
Cover Dia 500mm |
|
|
Clear Open 550mm C250, D400 |
Cover Dia 600mm |
Watertight with lock |
|
Clear Open 560mm A15+, B125 |
Cover Dia 600mm |
|
|
Clear Open 600mm A15+, B125, C250, D400 |
Cover Dia 650mm |
Watertight with lock |
|
Clear Open 600mm B125, C250, D400 |
Cover Dia 690mm |
Hinged, antistatic, watertight with lock |
|
Clear Open 630mm A15+ |
Cover Dia 700mm |
|
|
Clear Open 630mm B125, C250, D400 |
Cover Dia 750mm |
|
|
Clear Open 640mm C250, D400, E600 |
Cover Dia 700mm |
|
|
Clear Open 645mm A15+, B125 |
Cover Dia 700mm |
|
|
Clear Open 650mm B125, C250, D400 |
Cover Dia 700mm |
|
|
Clear Open 660mm B125 |
Cover Dia 700mm |
|
|
Clear Open 695mm B125, C250 |
Cover Dia 750mm |
|
|
Clear Open 715mm C250, D400 |
Cover Dia 756mm |
|
|
Clear Open 840mm A15+, B125, C250, D400 |
Cover Dia 900mm |
Antistatic, watertight, for Gas Station |
Founded for "Safer Road" and tradition of Quality & Innovation, Hangzhou Jinmeng Road Establishment Co., Ltd has been at the forefront of composite products more than 10 years.
Jinmeng owns a 70 thousand square meter plant, including 4 standard raw material workshops, 2 material lines and 2 production workshops and warehouse. There are 41 hydraulic machine ranges from 200 tons to 1, 600 tons and more than 500 molds for different products, a 100 tons' load capacity testing facility.
We have a experienced engineering team consisting of Raw Material Analysis and Developing, Structure Designing, Mold Engineering, Quality Controlling and Testing. Jinmeng Technical Consultancy team is available to offer technical advice, support and integrated solution according to customer individual demand.
Jinmeng composite product lines including Composite Manhole Cover, Gully Grating, Water Meter Box, Environmental Dustbin and other infrastructure products. Featured with Anti-theft owing to the natural "0" recycle value, High loading & strength structure, Light-weighted, Anti-corrosion and good lifespan, Flexible customized such as Logo, Inscription and Color.
Jinmeng strives for excellence and wins ISO9001, ISO14001, CE, SGS, BV, Eurofins certificate owing to the strict production standard and excellent product performance. Today, Jinmeng is a leader in designing and marketing composite infrastructure solutions. Our products are exported to most of the European and American Countries and win global reputation for high quality and superior after sales service.
Hope and believe Jinmeng can be you reliable partner to create a double-win cooperation.
