| Prod Model: |
GW-JJ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Furnace Name: |
Electric Induction Furnace |
| Furnace Type: |
Induction Furnace |
| Furnace Capacity Range: |
10 Kg to 5 Ton or as Buyer's Request |
| Furnace Power Range: |
100~4000 Kw or as Buyer's Request |
| Power Supply Frequency: |
50 or 60 Hz |
| Power Supply Voltage: |
380,415,440,660,690,950,1000,1500V |
| Working Frequency: |
2500,1000,500,250,150 Hz |
| Furnace Application: |
Melt Iron,Steel,Stainless Steel,Copper,Brass |
| Furnace Tilting Type: |
Electromechanical Tilting or Hydraulic Tilting |
| Furnace Enclosure Type: |
Aluminum Enclosure or Magnet Yoke Steel |
| Type: |
Crucible Melting Furnace |
| Fuel: |
Furnace |
| Usage: |
Scrap Metals Melting |
Product Description

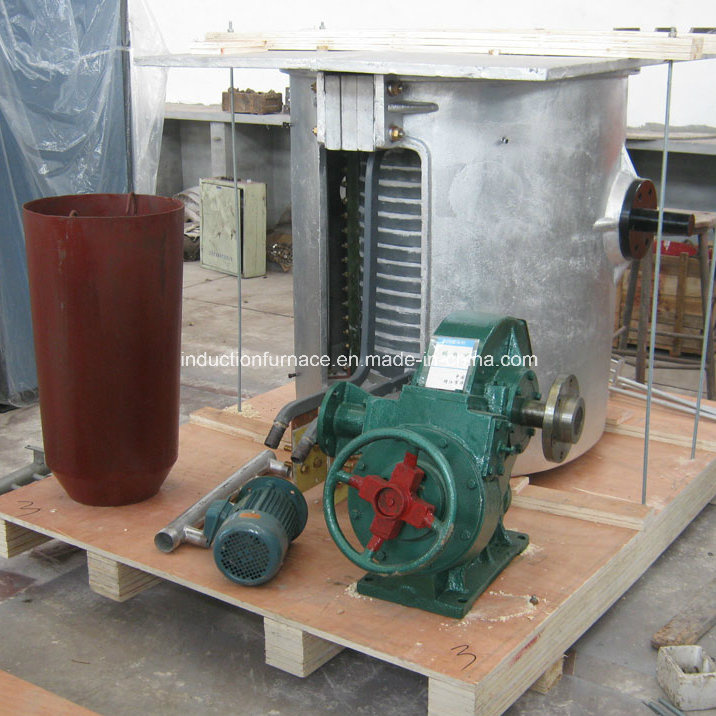

Smelting Electric Induction Furnace
Application
This GW-JJ Series Smelting Electric Induction Furnace, aluminum shell mechanical tilt, is for melting cast steel, cast iron, stainless steel, copper, aluminum and other metals or its alloy. It can also be used together with self-heated furnaces and electric arc furnace for heating or keeping warm/holding the molten iron and molten steel.
It is particularly suited to small and medium-size enterprises, or as Precision Casting Material Test.
Electrical Feature:
1. Digital CMOS chip (U. S. ASIC-2-12), with the highest degree of integration at home, is used in control circuit, the overall machine controlled through one single panel;
2. Frequency-sweep zero voltage start, high success rate, no shock;
3. Automatic resistance adjustment, permanent power output, 10-20% energy saved in comparison with domestic traditional machine of the type;
4. Auto phase sequence adaptation, free of synchronization;
5. Good performance in reload staring, auto recovery;
6. Highly integrated in controlling circuit, free of use of high-rate starter and relay loop, fairly low failure rate;
7. Wholly digital design, strong in anti-interference, no temperature shift when in continuous working;
8. Multi-protection functions (for over current, over voltage, insufficient water pressure, power failure, or phase absence), and mishandling will not cause damage to machine
Model explanation ( GW-1-750/1JJ for example}
GW--------Aluminum Shell Smelting Electric Induction Furnace
-1-------Rated Capacity 1 Ton (1000kg)
-750-------Rated Power 750Kw
/1--------1000Hz (1KHz)
-JJ-------Mechanical tilting (by electric motor and gear)
Data sheet for 10 kg to 5 ton Smelting Electric Induction Furnaces
| Model | Input Power | Input Volt. (6pulse) | Incoming Curr. | Rated Power | DC Curr. | DC Volt. | Melting Rate | Working Freq. | Working Volt. | Rated Capacity | Power Consumption |
|
| Kw | V | A | Kw | A | V | T/H | Hz | V | T | KWH/T |
| GW-0.01-50/1JJ | 60 | 380 | 76 | 50 | 140 | 400 | 0.06 | 1000 | 750 | 0.01 | 850 |
| GW-0.03-100/1JJ | 100 | 380 | 160 | 100 | 200 | 500 | 0.09 | 1000 | 750 | 0.03 | 850 |
| GW-0.05-100/1JJ | 100 | 380 | 160 | 100 | 200 | 500 | 0.12 | 1000 | 750 | 0.05 | 800 |
| GW-0.08-100/1JJ | 100 | 380 | 160 | 100 | 200 | 500 | 0.12 | 1000 | 750 | 0.08 | 800 |
| GW-0.15-100/1JJ | 100 | 380 | 160 | 100 | 200 | 500 | 0.15 | 1000 | 750 | 0.15 | 820 |
| GW-0.25-160/1JJ | 180 | 380 | 256 | 160 | 320 | 500 | 0.24 | 1000 | 750 | 0.25 | 790 |
| GW-0.5-250/1JJ | 280 | 380 | 400 | 250 | 500 | 500 | 0.4 | 1000 | 1500 | 0.5 | 770 |
| GW-0.75-400/1JJ | 400 | 380 | 650 | 400 | 800 | 500 | 0.6 | 1000 | 1500 | 0.75 | 770 |
| GW-1-500/1JJ | 550 | 380 | 800 | 500 | 1000 | 500 | 0.8 | 1000 | 1500 | 1 | 750 |
| GW-1-750/1JJ | 800 | 380 | 1200 | 750 | 1500 | 500 | 0.9 | 1000 | 1500 | 1 | 720 |
| 690 | 700 | 850 | 880 | 500 | 2600 | 660 |
| GW-1.5-1000/0.5JJ | 1100 | 690 | 912 | 1000 | 1140 | 880 | 1.2 | 500 | 2600 | 1.5 | 700 |
| GW-2-1500/0.5JJ | 1650 | 690 | 1360 | 1500 | 1700 | 880 | 1.7 | 500 | 2600 | 2 | 675 |
| GW-2-2000/0.5JJ | 2200 | 690 | 1400 | 2000 | 2275 | 880 | 1.9 | 500 | 2600 | 2 | 650 |
| GW-3-2500/0.5JJ | 2750 | 690 | 2275 | 2500 | 2840 | 880 | 2.56 | 500 | 2600 | 3 | 610 |
| 950 | 1700 | 2080 | 1250 | 3200 | 560 |
| GW-5-4000/0.5JJ | 4400 | 690 | 2300 | 4000 | 4540 | 880 | 4.5 | 500 | 2600 | 5 | 550 |
| 950 | 2700 | 3330 | 1250 | 3200 | 500 |
