| Prod Model: |
1/2"-72" ASNI, JIS, DIN, GOST, BS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Carbon Steel |
| Manufacturing Way: |
Forging |
| Standard: |
JIS |
| Type: |
Welding Flange |

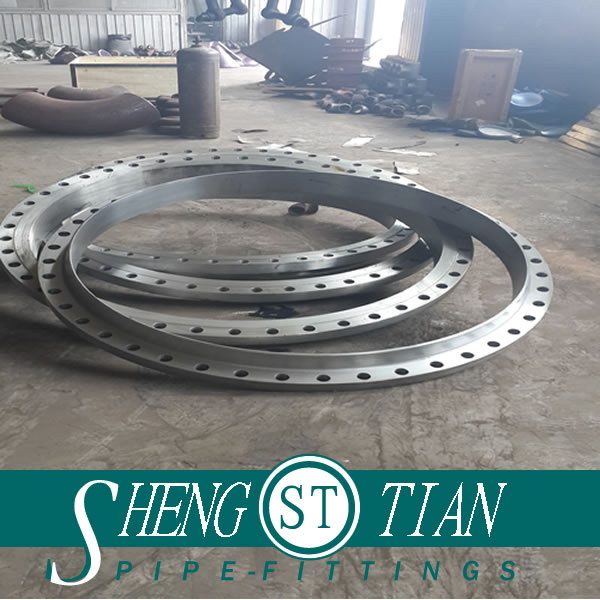

Product Description
Quick detail
Size: DN15--DN2000, DN15--DN1500
Material: Carbon Steel, A105, P250GH, P245GH, C22.8, SS400, SF440A, S235JR
Standard: DIN, ANSI B16.5. EN1092-1. DIN. JIS. GOST
Place of Origin: Hebei China (Mainland)
Model Number: Forged flange
Brand Name: ST
Standard or Nonstandard: Standard
Shape: Roundsurface treatment: Antirust oil
Packing: Wooden pallets
Superiority: TUV. PED. CE / ISO9001: 2008
Flange Type: SO Flange, WN Flange, BLD Flange, W Flange, H Flange
1) ANSI B16.5, ASME B16.47 FLANGE
Size range: 1/2" to 80" DN15 to DN2000
Design: Welding neck, slip on, blind, socket welding, threaded, lap-joint
Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#
Wall thickness for welding neck flange: STD, SCH40, SCH80, SCH160. SCHXXS
Material: Carbon steel A105, stainless steel 304/304L, 316/316L
Coating: Black paint, yellow transparent paint, cold and hot DIP galvanize
Package: Seaworthy plywooden case, wooden pallet
2) EN1092-1 FLANGE
Size range: DN15 to DN2000
Design: Type01 plate flange, type02 loose flange, type05 blind flange, type11 welding necking
Type12 slip on flange, type 13 threaded flange
Pressure: PN6, PN10, PN16, PN25, PN40, PN64, PN100
Material: Carbon steel C22.8, S235, S235JR, P235GH, stainless steel: 304/304L, 316/316L
Coating: Black paint, yellow transparent paint, cold and hot DIP galvanize
Package: Sea worthy plywooden case, wooden pallet
3) DIN FLANGE
Size range: DN15 to DN2000
Design: Slip on flange DIN2573, 2576, 2502, 2503, 2543, 2545
Welding neck falnge DIN2631, 2632, 2633, 2634, 2635
Blind flange DIN 2527 PN6, PN10, PN16, PN25, PN40
Threaded falnge DIN2565, 2566, 2567, 2567
Loose flange DIN 2641, 2642, 2656, 2673
Material: Carbon steel ST37.2, stainless steel 1.4301, 1.4404
Coating: Rust-proof oil, transparent paint, cold and hot galvanize
Package: Sea worthy plywooden case, wooden pallet
4) GOST FLANGE
Size range: DN15 to DN 2000
Design: Plate falnge 12820-80, welding neck flange 12821-80
Pressure: PN6, PN10, PN16, PN25, PN40
Material: Carbon steel CT-20, stainless steel 304/304L, 316/316L
Coating: Rust-proof oil, cold and hot galvanize
Package: Sea worthy plywooden case, wooden pallet
5) JIS FALNGE
Size ragne: 15A to 2000A
Design: SOP, BIND, SOH,
Puressure: 1K, 2K, 5K, 10K, 16K, 20K, 30K, 40K
Material: Carbon steel SS400, stainless steel SUS304, SUS316
Coating: Rust-proof oil, cold and hot galvanize
Packing: Sea worthy plywooden case, wooden pallet
|
Quick detail |
|
STANDARDS: |
. ANSI B16.5/MSS.SP 44,JIS B2220,DIN AND BS NORMS. ASME, ANSI, API, JIS, JPI, DIN, UNI, BS, AS.JIS Weld Neck
|
|
Production size(NPS): |
1/2 inch - 98inch |
|
Type: |
Slip-On, Welding Neck flange, Blind flange, Socket Welding flange, Threaded flange, Lap Joint flange and Plate flange etc.
|
|
Material: |
316L, 316Ti, 304L, 321, 321H, Rst37.2, C22.8,A105
|
Pressure Ratings:
|
Class 150, 300, 600, 900, 1500 and 2500
|
Pressure Ratings:
|
PN 6, PN 10, PN16, PN25, PN40 and PN64 |
Pressure Ratings:
|
JIS 5K, 10K, 16K and 20K |
Materials:
|
Carbon steel, Stainless steel and Alloy steel etc. |
|
Flange |
threaded flange,industrial flange,Carbon steel flanges)
JIS B 2220Weld neckflange standard, JIS B 2220-2004(Steel pipe flanges |
|
|
Item |
Standard No. |
Size |
Pressure Rating |
Types |
Material |
|
1 |
ANSI B16.5 |
1/2"--24" |
150,300,400,600,900,1500,2500LBS |
BL,SO,SW,LJ,WN,THD |
A105, A350LF2, A182 F11A182 F304/F304L,F316/F316L |
|
2 |
RING JOINT FLANGES |
1/2"--24" |
150,300,400,600,900,1500,2500LBS |
Ring type joint,Oval ring,Octagonal ring |
A105, A350LF2, A182 F11A182 F304/F304L,F316/F316L |
|
3 |
LONG WN |
1/2"--24" |
150,300,400,600,900,1500,2500LBS |
Long welding-neck |
A105, A350LF2,A182 F304/F304L,F316/F316L |
|
4 |
ASME B16.47 A(MSS SP-44) |
26"--60" |
150,300,400,600,900LBS |
BL,WN,RTJ |
A105, A350LF2, A694,A182 F304/F304L,F316/F316L |
|
5 |
ASME B16.47 A&B |
26"--36" |
300,400,600,900LBS |
Ring joint facing |
A105, A350LF2, A694,A182 F304/F304L,F316/F316L |
|
6 |
ASME B16.48 |
1/2"--24" |
150,300,600,900,1500,2500LBS |
Spectacle raised face figure-8 blanks |
A105, A350LF2, A694,A182 F304/F304L,F316/F316L |
|
7 |
BS3293-1960 STANDARD |
26"--48" |
150-600LBS |
SO,WN |
A105, A350LF2,A182 F304/F304L,F316/F316L |
|
8 |
ASME B16.47 B(API605) |
26"--60" |
75,150,300,400,600,900LBS |
BL,WN,RTJ |
A105, A350LF2,A182 F304/F304L,F316/F316L |
|
9 |
ANSI B16.36 STANDARD |
1"--24" |
300,400,600,900,1500,2500LBS |
SO,WN,THD,Ring type joint,Raised face |
A105, A350LF2,A182 F304/F304L,F316/F316L |
|
10 |
AWWA C207 |
4"--144" |
Class B,D,E,F T/1 |
PL,BL |
A105,A181 A36,A516Gr.60,65,70 |
|
11 |
EN1092-1:20002 STANDARD |
DN10-3600 |
PN6,10,16,25,40,63,100 |
TYPE01,02,04,05,11,12,13,21,32,33,34,35,36,37 |
EN10025(S235JRG2),EN10222-2AND3(P245GH ANDP280GH),EN10222-5(1.4303,1.4306,1.4307,1.4401,1.4404,1.4435,1.4541,1.4571)A105/C21/1.0432 C22.8/P150GH/1.0460 |
|
12 |
BS4504 SEC.3.1/1989 STANDARD |
NS15-2000 |
PN2.5,6,10,16,25,40 |
CODE101,102,104,105,111,112,113,121,132,133,134 |
BS970 070M20 BS4360GR.43A BS1503-164 GR.490 BS 1503-224 GR.410 BS 1503-304S11304S31 321S31 316S31 316S11 |
|
13 |
BS10-1962 STANDARD |
NB10-3000 |
TABLE D/ E /F/H/J |
SO THD BL WN |
BS1501-161 GR.B AND C BS1633GR.B BS 1503-240GR.240 BS 1503-620 BS3604 |
|
14 |
ISO 7005-1 STANDARD |
DN10-4000 |
PN2.5,6,10,16,20,25,40,50,110,150,260,420 |
TYPE01,02,03,04,05,11,12,13,14,15,21,32,33,34 |
ISO2604-1 F8 F9 F13 F18 F22 F49 F62 F46 F59 |
|
15 |
NFE29203 STANDARD |
DN10-600 |
PN2.5,6,10,16,20,25,40,50,100,150,250,420 |
TYPE01,02,03,04,05,11,12,13,14,15,21,32,33,34,35 |
NFE29204 BF 42 BF42NBF48 BF48N |
|
16 |
KS B1503 JIS B2220 |
10A-1500A |
PN5K,10K,16K,20K,30K |
SOP(PL) SOH(SO A B C ) WN |
JIS G3101 SS41 JIS G3201 SF40A(S20C) AND SF45A(S25C) JIS G3202 SFVC1AND SFVC 2A |
|
17 |
DIN FLANGES (DIN2527,2573,2576,2630,2631,2632,2633,2634,2635,2636,2637,2641,2642) |
DN10-4000 |
PN2.5,6,10,16,25,40,64,100 |
SO,BL,PL,WN,LOOSE,THD |
|
Hebei Shengtian Pipe-Fitting Group Co., Ltd. Was established in 1989. We are located in MengcunCounty in Hebei Province, covering an area of 100, 000 square meters, with a workshop of 25, 000 square meters and registered capital of $7, 500, 000. Our company has a strong staff team. There are over 360 employees, including over 30 professionals and technicians.
We are capable of manufacturing various pipe fittings. Our main products are elbows, tees, bends, reducers, caps, flanges and sockets. We have been in this line for about 20 years. Our products are exported to many countries and regions in Southeast Asia, the Middle East, Europe and America. Our products enjoy a good reputation in domestic and foreign markets. Every year, our company receives hundreds of foreign visitors and innumerable domestic visitors.
We have first-class inspection devices, perfect detecting means and well-trained specialists. And we stick to ISO9000: 2000 quality system and efficiently control procedure in production. We have confidence that we can supply the best quality products. We would like to take responsibility for any quality uncertainty. Even so, our price is competitive. Besides, we can provide the best service to you.
In order to avoid the policy of the anti-dumping duties imposed on pipe&fittings from the Europe, United States and other countries, We can re-export through other countries like Malaysia, etc, to circumvent the anti-dumping duties, which could make you to win more competitive price.
