| Prod Model: |
15-4000mm Socket Welded Flange |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Carbon Steel |
| Manufacturing Way: |
Forging |
| Standard: |
DIN |
| Type: |
Welding Flange |
Product Description

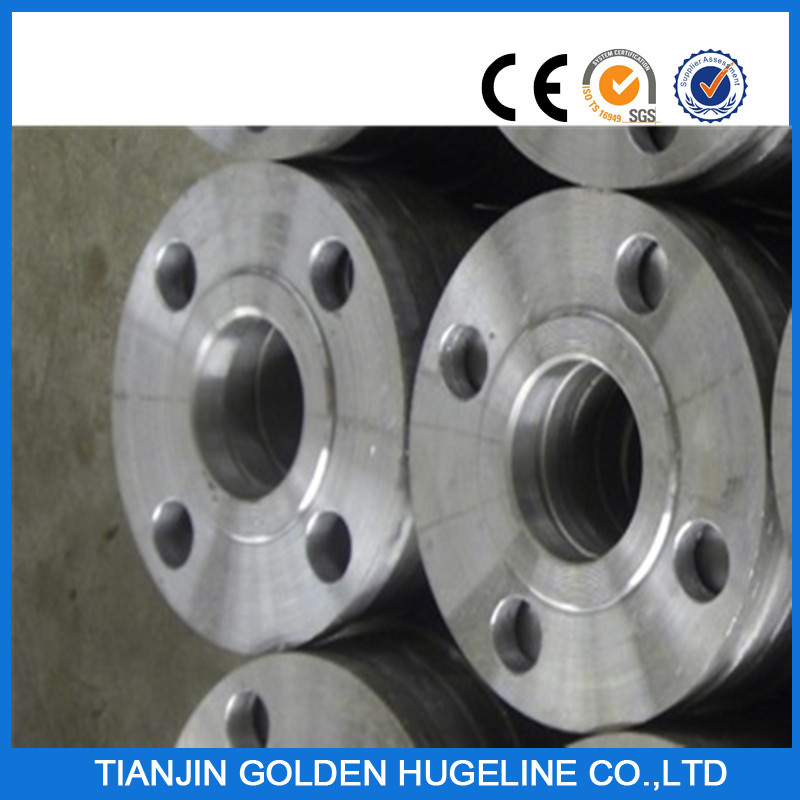

Forged Flanges:
1. Size: 15mm-4000mm
2. Type: Weck Neck
3. Standard: ANSI b16.5, DIN, JIS, GOST, bs, en and so on
4. Material: F304/F304L/F316/F316L/F321/F347H/F316Ti/s3275/904L/S31803/2205/F51.
5. Class: 150# to 2500#
| Product Name | Flange |
| Items | Plate, Welding Neck, Slip on, Blind, Lap joint, Threaded Flange |
| Standard | ANSI | ANSI B16.5 ASME B16.47 series A/B |
| DIN | DIN |
| GOST | GOST 12820-80 |
| EN | EN1092-1:2002 |
| JIS | JIS B2220-2004, KS D3576, KS B6216 KS B1511-2007 JIS B2261; JIS B8210 |
| BS | BS4504 BS10 Table D/E |
| Material | ANSI | CS A105/SA 105NSS 304/304L, 316/316L Alloy Steel: WHPY45/52/65/80 |
| DIN | CS RST37.2;S235JR SS 304/304L,316/316L |
| GOST | CS CT20;16MN;SS 304/304L,316/316L |
| EN | CS RST37.2;S235JR;C22.8SS 304/304L,316/316L |
| JIS | SS400,SF440 SS 304/304L, 316/316L |
| BS | CSRST37.2;S235JR;C22.8;Q235SS 304/304L,316/316L |
| Pressure | ANSI | Class 150, 300, 600, 900, 1500 2500lbs |
| DIN | PN6,PN10,PN16,PN25,PN40,PN64,PN100 |
| GOST | PN6,PN10,PN16,PN25 |
| EN | PN6,PN10,PN16,PN25,PN40,PN64,PN100 |
| JIS | 1K,2K,5K,10K,16K,20K,30K,40K |
| BS | PN6,PN10,PN16,PN25,PN40,PN64,PN100 |
| Size | ANSI | 1/2" – 60" |
| DIN | DN15-DN2000 |
| GOST | DN15-DN1600 |
| EN | DN15-DN2000 |
| JIS | 15A-1500A |
| BS | DN15-DN2000 |
| Coating | varnish, yellow paint, anti-rust oil, galvanizing etc |
| Usage | Used for the connection of all kinds of pipeline. |
| to convey the water, steam, air, gas and oil |
| Package | Wooden cases/pallets |
| Delivery | Within 30 days |
| Certificate | TUV, ISO9001:2008 |
Tianjin Golden Hugeline Co., Ltd., located in Tianjin city, is one of the biggest steel groups. Golden Hugeline Group are specialized in producing and exporting all kinds of steel pipe and fittings, flanges, valves in China. Our group is established in 1995 and We have over 15 years' Experience in steel market.
Our group have four branches. The factories of steel pipe and pipe fitting are located in Hebei Province, one flange factory is located in Shanxi Province, and the last one is our sea shipping company in Tianjin. Our main products are pipe fittings, pipes, flanges, valves and so on. We can manufacture according to ANSI/ASTM, JIS, DIN, API, GOST and non-standard. The sizes are 1/2" up to 72" for pipe fittings, 1/2" up to 32" for flanges, 1/2" up to 24" for pipes, 1/2"up to 24" for valves.
Our products have been widely used in many projects. Also we are a good supplier of SGS and have passed ISO, API, TUV, EC and so on. Till now, we have exported to Vietnam, British, Sweden, Japanese, Korea, India, Brazil, Germany, Africa and Middle East counties. We have good reputation from our customers and have long term cooperation with them.
We sincerely hope to cooperate with new and old friends and warmly welcome you to visit our factory.
