North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:
Sewage Pump
Material:
Cast Iron
Power:
Electric
Structure:
Single-stage Pump
Theory:
Electromagnetic Pump
Performance:
Blockage-Free Pump
Type:
Submersible Pump
Product Description

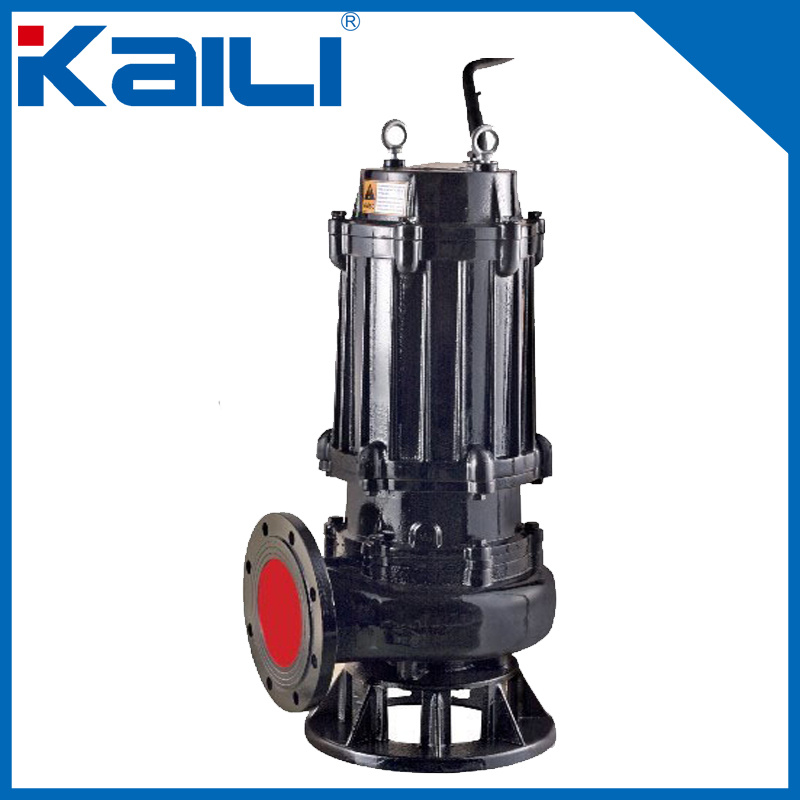

WQ non-clog submersible sewage pump/drainage pump (hereinafter called "pump") is integrative motor and pump. Which is manufactured based on absorbing domestic and foreign advanced technology and advantages. Impellor, designed with hydraulic model and made by precision casting, has the advantages of energy-saving, anti-winding and non-clogging, etc. At the same time, this sewage pump has a unique effect in the carriage of solid particles and long fibers garbage. Single or dual impellor structure ensures the sewage pump has the higher efficiency when it has bigger flow. So this kind of sewage pump is an ideal drainage pumps for industries and cities.
Main Application: 1 Living waste water discharging 2 Sewage systems of municipal works 3 Sewage systems in factory and mine corporation 4 Other transportation of non-corrosive and diluted medium 5 Temporary floodwater discharging 6 Waste water discharging of public facility 7 Various watered is charging system

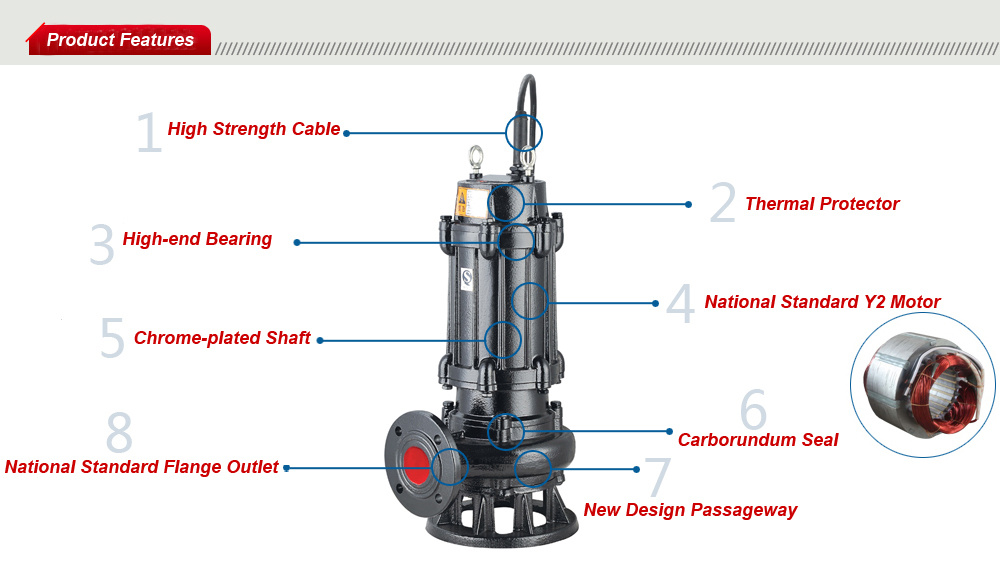

Operating Conditions 1. Capacity scope: 2~1500 m³/h; 2. System pressure: ≤0.6mpa; 3. Medium consistency: ≤1.3×10³kg/m³; 4. Motor insulation class: IP68; 5. Rotation: clockwise rotation viewed from motor; 6. Rated Speed: 970-2900r/min; 7. Head scope: 3-45; 8. Medium temperature: -15°C~+60°C; 9. Medium PH scope: 5-9; 10. Motor insulation class: E Grade; Features of Kaili Sewage Pump 1. 100% copperwire 2. Chrome-plated pump rotor (moreresistanttowearandcorrode) 3. Thermal protector 4. High-end bearing and mechanical seal 5. Flange or Elbow for the water outlet 6. Available for 60HZ
Material:
Structure of pump
Material
Can be selected
Pump body
Cast-Iron
Stainless steel
Impellor
Cast-Iron
Pump shaft
45 # Steel
Stainless steel
Cable
Arbitrary length
Appellation
Model
Flow
Head (m)
Power (kW)
HP
Voltage (V)
Velocity (r/min)
Pipe size
m³/h
l/min
mm
Inch
WQ Non-Clogging Sewage Submersible Pump
WQ10-10-0.75
10
166.7
10
0.75
1
220/380
2860/3000
50
2
WQ15-10-1.1
15
250
10
1.1
1.5
50
2
WQ15-15-1.5
15
250
15
1.5
2
50/63
2/2.5
WQ16-18-2.2
16
267
18
2.2
3
380
3000
50
2
WQ16-18-2.2
16
267
18
2.2
3
50
2
WQ15-30-3
15
250
30
3
4
50
2
WQ25-17-3
25
417
17
3
4
75
3
WQ15-36-4
15
250
36
4
5.5
65
2.5
WQ60-10-4
60
1000
10
4
5.5
100
4
WQ30-20-5.5
30
500
20
5.5
7.5
75
3
WQ55-15-5.5
55
917
15
5.5
7.5
100
4
WQ45-22-7.5
45
750
22
7.5
10
100
4
WQ100-10-7.5
100
1667
10
7.5
10
150
6
WQ100-15-11
100
1667
15
11
15
1450
100
4
WQ140-10-11
140
2333
10
11
15
150
6
WQ130-15-11
130
2167
15
11
15
150
6
WQ300-7-15
300
500
7
15
20
150
8
WQ200-10-15
200
3334
10
15
20
150
6
WQ100-20-15
100
1667
20
15
20
100
4
WQ180-15-15
180
3000
15
15
20
150
6
WQ250-11-15
250
4167
11
15
20
200
8
WQ100-22-18.5
100
1667
22
18.5
25
100
4
WQ140-15-18.5
140
2333
15
18.5
25
150
6
WQ200-12-18.5
200
3334
12
18.5
25
200
8
WQ100-30-22
100
1667
30
22
30
100
4
WQ300-10-22
300
5000
10
22
30
150
6
WQ400-7-22
400
6667
7
22
30
200
8
WQ180-30-30
180
3000
30
30
40
150
6
WQ250-22-30
250
4167
22
30
40
200
8
WQ600-9-30
600
10000
9
30
40
250
10
WQ900-7-30
900
15000
7
30
40
300
12
WQ180-37-37
180
3000
37
37
50
1000
150
6
WQ350-25-37
350
5833
25
37
50
200
8
WQ600-12-37
600
10000
12
37
50
250
10
WQ900-8-37
900
15000
8
37
50
300
12
WQ180-45-45
180
3000
45
45
60
150
6
WQ400-25-45
400
6667
25
45
60
200
8
WQ600-15-45
600
10000
15
45
60
250
10
WQ800-12-45
800
13333
12
45
60
300
12
WQ400-30-55
400
6667
30
55
75
200
8
WQ600-20-55
600
10000
20
55
75
250
10
WQ800-15-55
800
13333
15
55
75
300
12
WQ350-40-75
350
5833
40
75
100
200
8
WQ600-25-75
600
10000
25
75
100
250
10
WQ800-20-75
800
13333
20
75
100
300
12
WQ400-45-90
400
6667
45
90
120
200
8
WQ600-30-90
600
10000
30
90
120
250
10
WQ950-20-90
950
15833
20
90
120
300
12
Established in 1994, Taizhou Kaili Pumps Co., Ltd is one of the largest pump manufacturers in Zhejiang China, which has its own running rights of export and import.
And combines design, exploiture, sale and service of pumps. Located in Daxi town praised as experimental small town by the United Nations, which is near the Wenzhou airport, Haimen port. The company has a strong technological team, modernized productive and examinatorial facilities, and also introduced international standard CAD system, etc.
Since established, The "XIONGLI" water pumps have been honored as "the famous product of Zhejiang Province", "new millennium high quality science and technology symbol product of Zhejiang" and "Reliable and credible enterprise" etc.
Taizhou Kaili Pumps Co., Ltd won the production license of the national industrial products in 1999, gained the popularizing license from the Ministry of Agriculture in 2000 and past the international quality system ISO9001 and CCC authentication in the same year. People's Insurance Company of China has taken the Quality Assurance in 2002.
The leading products of company have 30 series, such as QDX, QX, WQ, QY, QD, ZB, QG, SG, LRS, QGD, QJ, FDM, FBD, NL, QS more than 500 varieties. The pumps of "Xiongli" series have advantages of unique design, novel style, scientific structure, high efficiency, airproofing performance, etc.
The products sell well in all parts of our country and various countries of the world.
The manager Shenlian Xie with the staff insist on the policy "Offering the advanced and reliable products to the customers is our responsibility " all the time.
Taizhou Kaili Pumps Co., Ltd will repay your support and the deep affection with advanced technology and high quality product.
Features of Kaili Sewage Pump
