Prod Model: |
solid steel round bar 42crmo4v |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Ultrasonic Test: |
Sep1921-84 Class C/C, D/D |
Materials: |
Solid Steel Round Bar 42CrMo4V |
Place Of Origin: |
Wuxi,China |
Rang Of Size: |
130mm-1200mm |
Tolerance: |
-0/+2mm for Size and -0/+10mm for Length |
Range Of Length: |
Customized |
Weight Of Per Bar: |
by Request |
Delivery Condition: |
Optional |
Property: |
by Specifications of Customers |
Payment: |
Tt or LC |
Type: |
Alloy Steel Bar |
Standard: |
BS |
Technique: |
Forged |
Application: |
Shipbuilding Industry |
Alloy: |
Alloy |
Special Use: |
Cold Heading Steel |
Surface Treatment: |
Shipbuilding Industry |
Product Description
Steel Grade: 42CrMo4V
Grade:42CrMo4V
Process: Forged from vacuum degassed ingots.
Shape: Round /Square/Plat/shaft/block
Chemical composition:
C | Si | Mn | P | S | Cr | Ni | Mo | Cu | V | Al |
0.38/0.45 | 0.15/0.35 | 0.6/0.8 | <=0.025 | <=0.025 | 0.9/1.2 | <=0.2 | 0.15/0.3 | <=0.2 | <=0.05 | 0.02/0.04 |

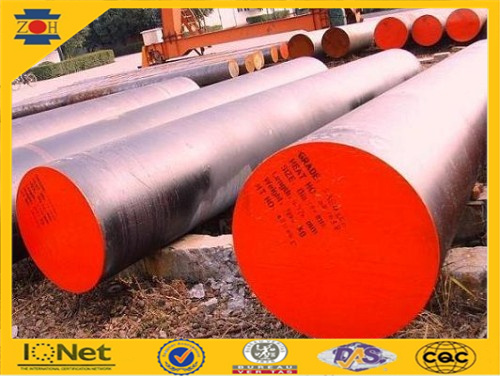

Material: | 42CrMo4V forged steel round bar Or square bar |
Process: | Forged from vacuum degassed ingots. |
Diameter: | 130mm-1000mm (optional) |
Length: | 1000mm-12000mm Straightness: 3mm/M max(optional) |
Process: | EAF + LF + VD + Forged + Heat Treatment (optional) |
Delivery condition: | Hot forged +Rough machined (black surface after Q/T)+ Turned (optional) |
Delivery Time: | 30-45 days |
MOQ: | 20 tons |
Heat treatment: | Normalized / Annealed / Quenched / tempered (optional) |
Technical Data: | According to the customer's requirement of Chemical Composition, Physical Properties and Mechanical Testing |
Properties: | As your request |
Test: | Ultrasonic test according to SEP 1921-84 Class C/c and D/d (optional) |
Marking: | Grade, heat NO. length will be stamped one each bar with required color |
Payment: | 30% advance by T\T; Balance pay before the shipment against shipping documents or irrevocable LC at sight |
similar steel grade | 42CrMo/42CrMoS4/En19/4140/SAE4140/SCM440 |
Application: | Statically and dynamically stressed components for vehicles, engines and machines. For parts of larger cross-sections, crankshafts, gears. |
