Soluble Glass Precision Casting Auto Parts

Name: Soluble Glass Precision Casting Auto Parts
Brand: china-castingforging.com
SKU: 700350922
Availability: InStock
Rating: 4.8 (71 reviews)

Price:	US $ 1-2.2Kg
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Gaomi Hengxin Machinery Technology Co., Ltd.

Showroom Product Company Profile

Prod Model:	OEM
Markets:	North America,South America,Eastern Europe,Oceania,Mid East,Eastern Asia,Western Europe
Report:	SGS
Casting Method:	Thermal Gravity Casting
Material:	Cast Steel
Surface Preparation:	Sand Blast

Product Description

Product description:

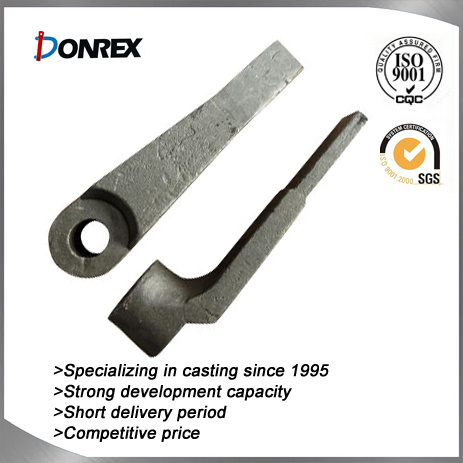

This is used as accessories for autos, consider the quality and production cost, finally we choose water glass precision casting process as the manufacture process for mass production. This product is made out of ZG310-570. Which with this material we can do heat treatment according to your product details.

Investment casting process describing:

We offer customers two types of investment cast processes

Materials that can be used in our investment casting process:

Plain Carbon Cast Steel

Standard-Spec.No.& Grade			Chemical Composition≤%			Mechanical Properties≥				NOTE:(1)S,P≤0.04% (2)C,Mn%can also be agreed upon by manufacturer and purchaser. (3)Heat Treat:Normalize(N)+Temper(T) or Quench(Q)+T,selected by Foundry
GB China	JIS Japan	ASTM U.S.A.	C	Si	Mn	T.S. σb N/mm2	Y.S. σs N/mm2	EL δ%	R.A. ψ%
ZG200-400	SC420	A27 60-30	0.2	0.5	0.8	400	200	25	40
ZG230-450	SC450	65-35	0.3		0.9	450	230	22	32
ZG270-500	SC480	70-40	0.4			500	270	18	25
ZG340-640	SCC3B	A148 80-50	0.6	0.6		640	240	10	18

High Alloy Cast Steel

Standard-Spec.No			Chemical Composition%						Mechanical Properties≥
GB China	JIS Japan	ASTM(AISI) U.S.A.	C	Si	Mn	Cr	Ni	Others	T.S. σb N/mm2	Y.S. σs N/mm2	EL σ%
ZG1Cr13	SCSI	CA-15(410)	≤0.15	≤1.50	≤1.00	11.5-14.0	≤1.00	Mo≤0.05	620	450	16
ZG0Cr18Ni9	SCS13	CF8(304)	≤0.08	≤2.00	≤1.50	18.0-21.0	8.0-11.0		440	185	30
ZG1Cr18Ni9	SCS12	CF20(302)	≤0.20	≤2.00	≤1.50	18.0-21.0	8.0-11.0		480	205	28
ZG0Cr18Ni12Mo2Ti	SUS316	CF-8M(316)	≤0.08	≤1.50	≤1.50	18.0-21.0	9.0-12.0	Mo 2.0-3.0 Ti0.7	490	216	30
ZG0Cr17Ni4Cu4Nb	SUS630	CB-7Cu 17-4PH	≤0.07	≤1.00	≤1.00	15.5-17.0	3.0-5.0	Cu2.3-3.0 Nb0.14-0.45	980	785	5
ZGMN13-3	SCMnH2	A128 B-1	0.90-1.30	0.30-0.80	11.0-14.0			S≤0.05, P≤0.08	686		35
ZG3Cr18Ni25Si2	SCH19	A297 HN	0.20-0.50	≤2.00	≤2.00	19.0-23.0	23.0-27.0	Mo≤0.50	435	230	8
ZG4Cr25Ni20Si2	SCH22	A351 HK-40	0.35-0.45	≤1.75	≤1.50	23.0-27.0	19.0-22.0		450	240	10

Note:S,P≤0.04% except 13%Mn Steel(ZGM13-3)

Copper-base Cast Alloy

Standard-Spec.No.			Chemical Composition%					Mechanical Properties≥
GB China	JIS Japan	ASTM U.S.A	Sn	Zn	Pb	Si	Cu	T.S.σb N/mm2	Y.S. σ%	EL HBW	Hard ness
ZCuSn5Pb5Zn5	BC6	C83600	4.0-6.0	4.0-6.0	4.0-6.0		Balance	200	90	13	60
ZCuSn10Zn2	BC3	C90500	9.0-11.0	1.0-3.0			Balance	240	120	12	70
ZCuZn16Si4	SZBC3	C87800		Balance		2.5-4.5	79.5-81.0	390		20	100
ZCuZn40Pb2		C85700		Balance	0.5-2.5		58.0-63.0	220	120	15	80

Operating since 1995

Gaomi Hengxin Machinery Technology Co., Ltd. Was established in 2009, but it had an old name and started producing castings since 1995. Now we are one of the leading manufacturing groups offering casting, machining and product assembly services.

Performing with strict quality control

We provide our customers the best engineered solutions, low cost tooling, high quality manufacturing and rapid delivery. We handle all the projects with quality first in mind and under strictly quality control flows through precise inspection and testing equipment and production control system to achieve small, medium and large volume productions. Meanwhile, all the works are based on OEM/ODM, confidentiality and reliability.

Generating over $20 million sales annually

Our buyers hail from more than 30 countries and regions including Europe, North America, South America, the Middle East and Australia. We sell big quantities of high quality products worth more than $20 million annually.

Work with us today

A lot of things may change, but our commitment to professionalism, quality and customer service won't. Contact us today to begin saving time and cost.

Then you'll find our following advantages soon:

1. Twenty years of manufacturing success in China and exporting experience worldwide.

2. Global specialized producer of machined castings and product assemblies.

3. We combine our own resources with some other well-developed factories to fulfill a wide range of contract manufacturing capabilities. Working with one source, saves time and money.

4. Low cost mold materials and focus on efficiency offer a cost-effective solution to your metal component purchasing requirements.

5. Normal lead times range from 1 to 6 weeks for fully-machined components.

6. Strong capacity to help customers develop new projects.

7. Our sales department is 24 hours available in order to help our customers solve problems quickly.
