| Prod Model: |
HD20T-35T(Type A) HD40T-60T(Type A) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
HD(A) series:
1). Exquisite in structurre, outstanding and extraording, high quality material feeding, rational in mechanism, standard specification, environmental friendly color, saving the space, first choice for the uniform planning of the factory.
2). Modern styling unique design, steady and rational material construction, meticulous in fabrication, clean and elegant, environmental
Friendly concept, are the strength demonstration of the high-class enterprise, first-class combination of industry and environment.

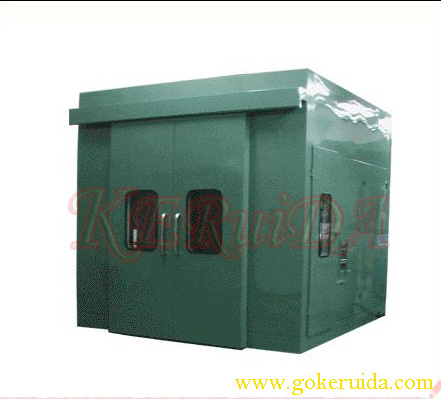

Configuration of Type A(70mm thick) sound insulation box used for high-speed precision press:
Configuration:
1). The front door of sound insulation box is a sliding door, the rear door and both sides are push doors, both front and back are equipped with sound insulation monitoring window.
2). Left side and right side are movable material discharge connections, equipped with one set of roller guide rail respectively (four pieces on side).
3). One inlet/outlet low noise are pulley exhaustion respectively.
4). Two sets of environmental friendly lighting 45W 5T fluorescent lamps.
5). One set of internal connection power switch and socket.
6). One set of trademark advertisement signboard(customer provides trademark number).
7). High-class ICI computerized and anti-rust treatment(color selectable).
Choose standard material and noise control for sound insulation box
1). National standard 1.0~2.0mm hot rolled steel sheet.
2). National standard 0.6mm× Φ 3.0mm punched galvanized sheet.
3). Imported Rock wool(100Kg/m3× 50mm)sound absorption and insulation fireproof environmental cotton board.
4). Imported PEF(10mm)High-density flame retardant silencer board.
5). 20kg/m3× 10mm)High-density flan flame retardant sound absorption sponge board made in Taiwan
6). Noise effect 75-80dB(single source)reaching the national standard for labor hearing protection.
Specification: 2400W× 1800L× 2500H× 70T(mm)
2400W× 2300L× 2800H× 70T(mm)
KERuiDA is a German-funded corporation, one of the well-known brands in the world. It is specialized in punch machine and mould & die making.
Punch machine making:
In 2005, Keruide Machinery Equipment Co., Ltd. was set up in Dongguan. Introduce Germany advanced technology and professional R&D, to design and make KERuiDA big three round high-speed precision automatism punch and a range of automatic machinery and equipment. We followed the policy of "People-oriented, Morality for the first". With professional technical R&D team, to research a new type of superhigh speed punch according to the customers' special needs. We always continue to improve our products, and due to our high quality and good services, we received the vigorous support and high trust from our customers. Thus, it created "Dongguan Keruide Machinery Equipment Co., Ltd. " a good image in business. And we take "creating the first brand of nation" as a goal.
Mould and die making:
We can provide one-stop service including design and fabrication of tooling, molding products and secondary process such as Silk Screen Printing, Spray Printing and Pad Printing etc. Due to the rich experience, competitive price, on-time delivery and high quality, our moulds and products have been sold very well all over the world, especially in European countries and U. S. In order to adapt to the pace of market development, we earned ISO 9001-2000 certification in 2005, which embodies our efforts in quality management. Advanced equipment, excellent employees, sophisticated techniques, superior quality management, responsive service system, all of these will contribute to our competition. Therefore, we have always kept long-lasting trustworthiness and harmonious Win-win relationship with our customers.
We always keep in mind: To survive on quality, to profit from management, always keep improving. And our slogan is "Take customer's interests firstly, Think what you think, Worry what you worry. "
Therefore, "Choose us, you choose the success!
