Product Description
We Shanghai Special Metal Co., Ltd can offer The steel claw/ yokes for the aluminum electrolyzer:
Electrolytic aluminum anode steel claw/yoke is also called electrolysis claw/yoke. There are several types of claws, such as parallel three claws, four claws, stereoscopic four claws, six claws, eight claws, double anode steel claw etc. The steel claw is connected to the copper bar to consist of Anode.
1. Technical Specifications
The following specifications are mandatory requirement for the yokes we supplied.
1.1 Material Specification
Material for the claw/yoke is an approved low carbon steel, which is similar the following standards:
AS 2074-2003 Grade C2
AISI 1010, 1008 or 1006
The chemical composition specification of the steel is shown in Table 1.
Steel Chemical Composition Specification
| Working Range |
| Element | Min(%) | Max.(%) |
| C | 0.08 | 0.15 |
| Si | 0.35 | 0.60 |
| S |
| 0.03 |
| P |
| 0.05 |
| Mn | 0.25 | 0.50 |
| Cr |
| 0.25 |
| Ni |
| 0.4 |
| Mo |
| 0.15 |
| Cu |
| 0.30 |
| Carbon Equivalent |
|
|
Melt Range: 1494-1515ºC
1.2 Porosity
The internal structure of the cast piece is free of any voids.
1.3 Rectification
Rectification of defects is executed according to AS 1988-2006. Rectification of hot tear and shrinkage cracks in the yoke arms is not allowed.
2. Report Supplied
Following quality control ducoments supplied prior shipment:
2.1 Dimensional and visual inspection reports
2.2 Material certificates
2.3 Non-destructive testing reports
2.4 Destructive testing reports
We Shanghai Speical Metal Co., Ltd also supplied following parts for the aluminum electrolyzer: Copper bar,Welded Yoke, Aluminum-copper Strap,Aluminum Strap.

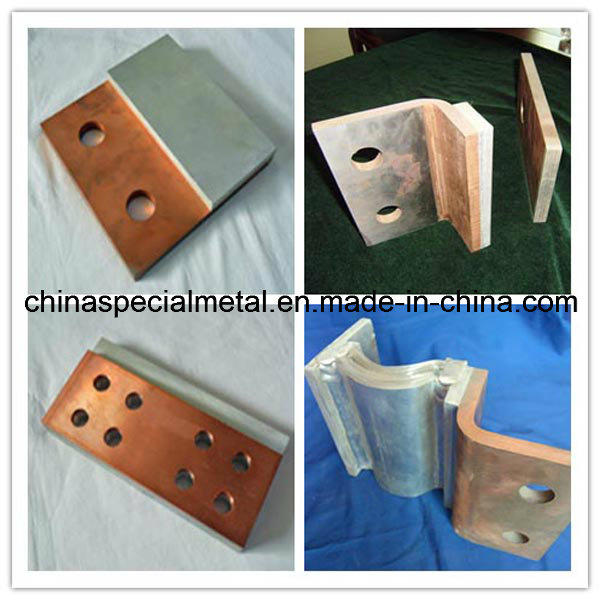

Explosive plate is a conductive transition device of aluminum electrolysis cell.
Product classification: by means of materials, it can be divided into Al/Steel, Al/Copper, Steel/Copper plate etc.
Materials: similar with L.LY.LF, Q235, 20R, 20G,16Mn,16MnR
