Prod Model: |
DEYI0214 |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Name: |
Laboratory Platform with Supports |
Specification: |
200mm*100mm to 3000mm*8000mm |
Material: |
Ht200-Ht300, Qt400-700 |
Accuracy: |
0.03-0.3mm |
Brinell Hardness: |
170-240 Hbw |
QA1: |
Physical and Chemical Inspection Report |
QA2: |
Metallographic Examination, Dim Inspection Report |
QA3: |
Customer Requirements Reports. |
Packaging: |
Wooden Cases, Steel Cases, Cartons |
Brand: |
Deyi |
Type: |
Clay Dry Sand |
Product Description

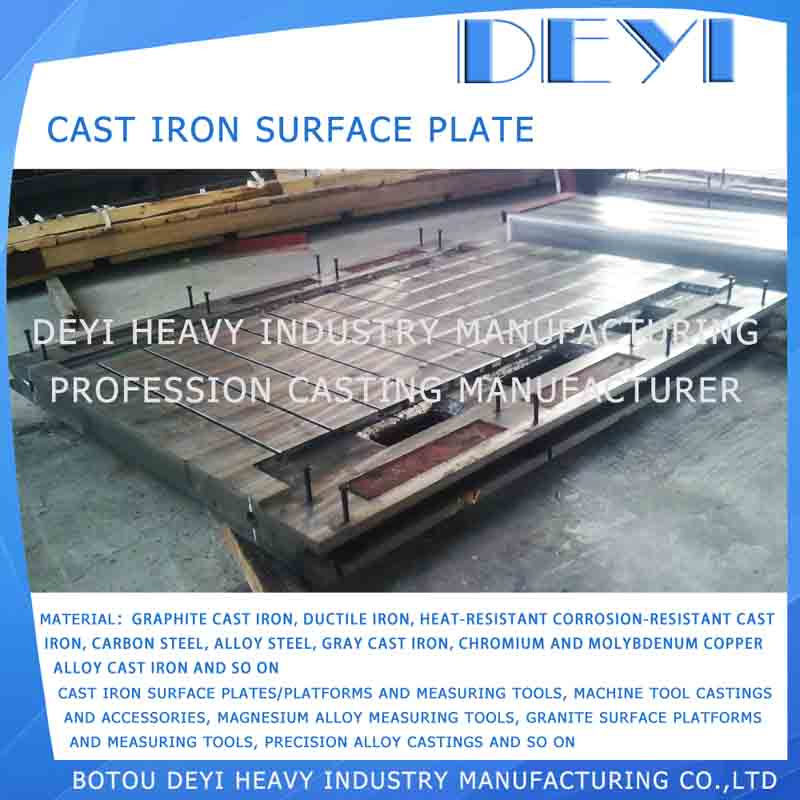

Laboratory Platform with Supports
Botou Deyi Heavy Industry Manufacturing Co.,Ltd is specialized cast iron surface plate manufacturer and a professional company which is engaged in casting , machining, machine tool supporting.
Main prodcuts are Cast Iron Surface Plates/Platforms And Measuring Tools,
Machine Tool Castings And Accessories, Magnesium Alloy Measuring Tools,
Granite Surface Plates/Platforms And Measuring Tools, Precision Alloy Castings and so on, and the material are graphite cast iron, ductile iron, heat-resistant corrosion-resistant cast iron, carbon steel, alloy steel, gray cast iron, chromium and molybdenum copper alloy cast iron and so on.
We can offer high quality product with competitive price with relatively short lead time.
CAST IRON SURFACE PLATE SPECS DESCRIPTION |
|
CODE | SPECS(mm) | PRECISION |
|
" 0" CLASS (μ m) | " 1" CLASS (μ m) | " 2" CLASS (μ m) | " 3" CLASS (μ m) | FINISH PLANE (μ m) |
|
|
01 | 200× 100 | 5 | 10 | 20 |
|
|
|
02 | 200× 200 | 5 | 10 | 20 |
|
|
|
03 | 250× 250 | 5.5 | 11 | 22 |
|
|
|
04 | 300× 200 | 6 | 12 | 24 |
|
|
|
05 | 300× 300 | 6 | 12 | 24 |
|
|
|
06 | 400× 300 | 6 | 12 | 24 |
|
|
|
07 | 400× 400 | 6 | 12 | 24 |
|
|
|
08 | 500× 300 | 6 | 12 | 24 |
|
|
|
09 | 500× 350 | 6 | 12 | 24 |
|
|
|
10 | 500× 450 | 6 | 12 | 24 |
|
|
|
11 | 500× 500 | 7 | 14 | 28 |
|
|
|
12 | 600× 450 | 7 | 14 | 28 |
|
|
|
13 | 600× 500 | 7 | 14 | 28 |
|
|
|
14 | 700× 500 | 8 | 16 | 32 | 80 |
|
|
15 | 800× 500 | 8 | 16 | 32 | 80 |
|
|
16 | 800× 600 | 8 | 16 | 32 | 80 |
|
|
17 | 900× 600 | 8 | 16 | 32 | 80 |
|
|
18 | 1000× 750 | 9 | 18 | 36 | 90 |
|
|
19 | 1000× 800 | 9 | 18 | 36 | 90 |
|
|
20 | 1000× 1000 | 10 | 20 | 39 | 96 |
|
|
21 | 1200× 800 |
| 20 | 39 | 96 |
|
|
22 | 1200× 1000 |
| 20 | 39 | 96 |
|
|
23 | 1500× 1000 |
| 24 | 48 | 120 |
|
|
24 | 1500× 1500 |
| 25 | 50 | 125 |
|
|
25 | 2000× 600 |
| 24 | 48 | 120 |
|
|
26 | 2000× 1000 |
| 26 | 52 | 129 |
|
|
27 | 2000× 1500 |
|
| 56 | 140 |
|
|
28 | 2000× 2000 |
|
| 60 | 152 | 230 |
|
29 | 2500× 1500 |
|
| 64 | 152 | 230 |
|
30 | 2500× 2000 |
|
| 68 | 168 | 248 |
|
31 | 2500× 2500 |
|
| 72 | 180 | 270 |
|
32 | 3000× 1000 |
|
|
| 168 | 248 |
|
33 | 3000× 1500 |
|
|
| 174 | 154 |
|
34 | 3000× 2000 |
|
|
| 184 | 275 |
|
35 | 3000× 2500 |
|
|
| 186 | 276 |
|
36 | 3000× 3000 |
|
|
| 210 | 300 |
|
37 | 4000× 1000 |
|
|
| 210 | 300 |
|
38 | 4000× 1500 |
|
|
| 210 | 300 |
|
39 | 4000× 2000 |
|
|
| 219 | 310 |
|
40 | 4000× 2500 |
|
|
| 228 | 340 |
|
41 | 4000× 3000 |
|
|
| 240 | 360 |
|
42 | 5000× 1500 |
|
|
| 249 | 370 |
|
43 | 5000× 2000 |
|
|
| 255 | 375 |
|
44 | 5000× 2500 |
|
|
| 264 | 390 |
|
45 | 5000× 3000 |
|
|
| 287 | 420 |
|
46 | 6000× 2000 |
|
|
| 293 | 430 |
|
47 | 6000× 2500 |
|
|
| 300 | 450 |
|
48 | 6000× 3000 |
|
|
| 308 | 460 |
|
49 | 8000× 2000 |
|
|
| 370 | 520 |
|
50 | 8000× 2500 |
|
|
| 375 | 530 |
|
51 | 8000× 3000 |
|
|
| 382 | 570 |
|
ANY SIZE OF CAST IRON SURFACE PLATES CAN BE DESIGNED AND PRODUCED ACCORDING TO CUSTOMER REQUIREMENTS |
|
CAST IRON SURFACE PLATE DETAILED DESCRIPTION |
THE GROSS STRUCTURE OF PLATES IS DIVIDED INTO BOX TYPE AND RIB TYPE. THE SHAPE OF WORKING SURFACE IS RECTANGLE, SQUARE AND ROUNDNESS. ACCORDING TO THE PRECISION MACHINING, IT’ S DIVIDED INTO FINISH PLANE AND SCRAPING. THERE ARE V- SLOTS, T-SLOTS, U-SLOTS, DOVETAIL SLOTS, ROUND HOLES, SLOTTED HOLES ETC CAN BE MACHINED ON THE WORKING SURFACE OF PLATES. THE CAST IRON SURFACE PLATE IS THE BENCHMARK MEASURING TOOL WHICH CAN BE APPLIED TO TESTING, LINEATION, ASSEMBLING, WELDING, INSTALLING AND RIVET WELDING FOR THE WORKPIECES AND EQUIPMENTS. THE CAST IRON SURFACE PLATE ACCESSORIES ARE HAVE ANCHOR BOLTS, ANCHOR DEVICES, LEVELLING BOLTS, T-BOLTS, LEVELLING PAD IRON, COVER PLATE ETC. THE CAST RION SURFACE PLATES CAN BE APPLIED TO WORKPIECES AND EQUIPMENTS INSPECTION APPLICATION, SUCH AS MACHINE TOOLS AND MECHANICAL MEASUREMENT BENCHMARKS, TO TEST THE DIMENSIONAL PRECISION AND FORM AND POSITION DEVIATION FOR THE WORKPIECES, AND TO DO THE PRECISE LINEATION. THE PLATES ARE THE INDISENSABLE TOOLS IN THE MACHINERY MANUFACTURING INDUSTRY. THE WORKING SURFACE HARDNESS IS BETWEEN HB160 AND HB210. THERE ARE TWO TEMPERING TREATMENT (ARTIFICIAL ANNEALING(SEASONING): 600 TO 700 CENTIDEGREE, NATURAL SEASONING: 2 TO 3 YEARS) TO KEEP THE PLATES’ STABILITY AND ABRASION RESISTANCE. |
Product Standard | JB/T7974-99, DIN 650 etc. |
Specification | 200mm*100mm to 3000mm*8000mm |
Casting equipment | Cupola Furnace, Industrial Electric Furnace |
Casting Technique | Resin Sand Casting etc. |
Material | Magnesium iron, Gray iron etc. (such as HT200-300, QT400-700) |
Weight | 5kg-500000kg |
Surface Treatment | Painting, Heat Treatment, Finish Plane etc. |
Fine Finishing | Complete machining: Machining center, CNC, Lathe, Milling machine, drilling etc. |
Quality Assurance | Physical and Chemical Inspection Report, Metallographic Examination Report, Casting Aging Treatment Report, DIM Inspection Report, Manufacturing Progress Control Schedule, and Customer Requirements Reports. (Third Party inspection available upon customers requirements) |
Packaging | Wooden Cases, Steel Cases, Other Export Packaging |
Size and design | As per the customer' s drawings and requirements (we can offer the new drawings to the customer) |
Enclose:
T-SLOT ACCURACY TO DIN 650
Tolerance on slot width H12. (Tolerance H7 or H8 on request)
Example:
A T-slot DIN 650-28 H12 has a nominal slot opening (a) of 28mm
for bolt size M24(1” ).
The T-slot height (H) according to the table below is 48mm.
(1 mm = 0.03937 inch, 1 inch = 25.4 mm)
Dimension a | For screw | b (mm) | c (mm) | H (mm) | e (mm) |
10 | M 8 | - | 17.5 – 18 | 8 | 18 | 1.0 |
12 | M 10 | - | 20.5 – 21 | 9 | 21 | 1.0 |
14 | M 12 | 1/2” | 23.5 – 24 | 10 | 24 | 1.0 |
16 | M 14 | - | 26.5 – 27 | 11 | 27 | 1.0 |
18 | M 16 | 5/8” | 29.5 – 30 | 12 | 30 | 1.5 |
20 | M 18 | - | 33.5 – 34 | 14 | 34 | 1.5 |
22 | M 20 | 3/4” | 37.5 – 38 | 16 | 38 | 1.5 |
24 | M 22 | 7/8” | 41.0 – 42 | 18 | 42 | 1.5 |
28 | M 24 | 1” | 47.0 – 48 | 20 | 48 | 1.5 |
32 | M 27 | 1 1/8” | 54 | 22 | 54 | 1.5 |
36 | M 30 | 1 1/4” | 60 | 25 | 61 | 2.0 |
42 | M 36 | 1 1/2” | 70 | 29 | 74 | 2.0 |
Botou Deyi Heavy Industry Manufacturing Co.,Ltd is specialized cast iron surface plate manufacturer and a professional company which is engaged in casting , machining, machine tool supporting.
Main prodcuts are Cast Iron Surface Plates/Platforms And Measuring Tools,
Machine Tool Castings And Accessories, Magnesium Alloy Measuring Tools,
Granite Surface Plates/Platforms And Measuring Tools, Precision Alloy Castings and so on, and the material are graphite cast iron, ductile iron, heat-resistant corrosion-resistant cast iron, carbon steel, alloy steel, gray cast iron, chromium and molybdenum copper alloy cast iron and so on.
Our quality assurance system is sound and has passed ISO9001:2000 international quality system certification
Our products reached a international quality standards. At home, products have successfully used in some large enterprises, domestic: China State Shipbuilding Corporation, SINOPEC, China Electric Power Group Corporation and so on. At abroad, the products exported to Turkey, Holland, South Africa, India, England, United Arab Emirates and other countries.
