Prod Model: |
KM-03 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
1/2"~24" |
Class: |
150#, 300#, 400#, 600#, 900#, 1500#, 2500# |
Standard: |
GOST |
Type: |
Welding Flange |
Manufacturing Way: |
Forging |
Material: |
Carbon,Stainless,Alloy |
Product Description
Spectacle Blind Steel Flange 150#, 300#, 400#, 600#
Stainless Steel: ASTM a182 F304, F304L, F304H, F316, F316L, F316Ti, F310, F310S, F321, F321H, F317, F347, F347H, F904L.
Duplex Stainless Steel: UNS S31803, UNS S32750
Carbon Steel: ASTM a105,
Alloy Steel: ASTM a182 F1, F11, F22, F5, F9, F91
Nickel Alloys: Monel 400 & 500, Inconel 600 & 625, Incoloy 800, 825, Hastelloy C22, C276
Copper Alloys: Copper, Brass & Gunmetal
Size: 1/8" NB TO 48"NB.
Class: 150#, 300#, 400#, 600#, 900#, 1500#, 2500#
Dimensional Standard
ANSI: ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638, DIN 2673
B. S: BS 4504, BS4504, BS1560, BS10

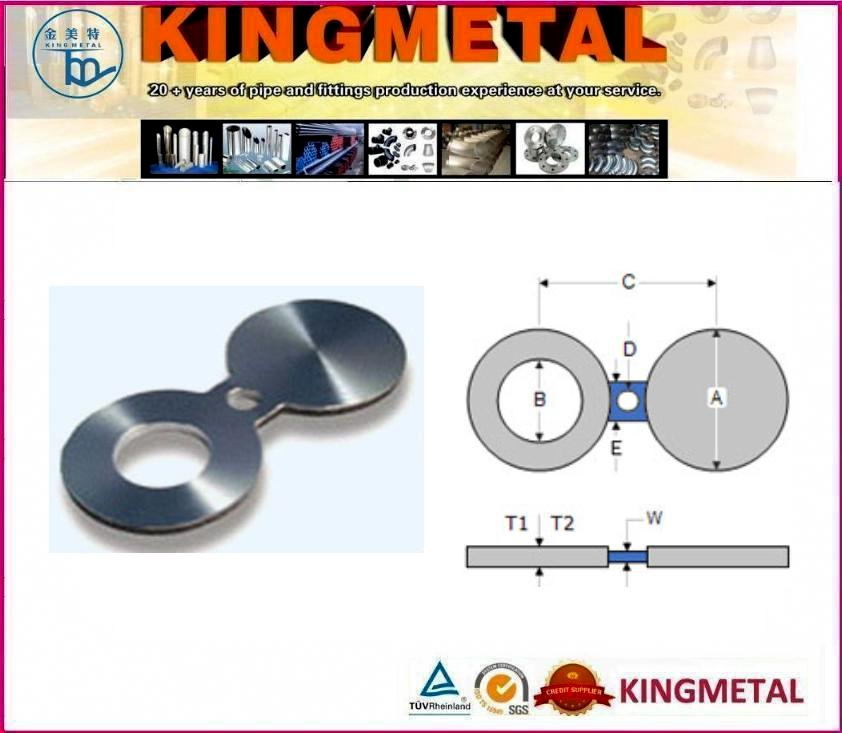

DIMENSIONS OF CLASS 150 FLANGES AS PER ANSI B 16.48 |
NB | a | B | C | D | E | T1 | T2 |
½" | 15 | 48 | 14 | 60 | | 26 | 5 | 4 |
¾" | 20 | 57 | 21 | 70 | | 32 | 5 | 4 |
1" | 25 | 67 | 27 | 79 | | 38 | 5 | 4 |
1 ½" | 40 | 86 | 41 | 98 | | 52 | 5 | 4 |
2" | 50 | 105 | 52 | 120 | 20 | 64 | 6 | 4 |
3" | 80 | 137 | 78 | 152 | 20 | 86 | 8 | 6 |
4" | 100 | 175 | 103 | 190 | 20 | 114 | 9 | 7 |
6" | 150 | 222 | 154 | 241 | 22 | 148 | 12 | 10 |
8" | 200 | 279 | 203 | 298 | 22 | 188 | 15 | 12 |
10" | 250 | 340 | 254 | 362 | 26 | 154 | 18 | 15 |
12" | 300 | 410 | 303 | 432 | 26 | 190 | 21 | 18 |
14" | 350 | 451 | 343 | 476 | 30 | 208 | 23 | 20 |
16" | 400 | 515 | 394 | 540 | 30 | 176 | 25 | 23 |
18" | 450 | 550 | 445 | 578 | 33 | 188 | 28 | 26 |
20" | 500 | 605 | 495 | 635 | 33 | 162 | 31 | 29 |
24" | 600 | 720 | 597 | 749 | 36 | 194 | 37 | 34 |
| | | | | | | | |
| | | | | | | | |
DIMENSIONS OF CLASS 300 FLANGES AS PER ANSI B 16.48 |
NB | a | B | C | D | E | T1 | T2 |
½" | 15 | 54 | 14 | 66 | | 30 | 5 | 4 |
¾" | 20 | 67 | 21 | 83 | | 36 | 5 | 4 |
1" | 25 | 73 | 27 | 89 | | 42 | 5 | 4 |
1 ½" | 40 | 95 | 41 | 114 | | 58 | 7 | 5 |
2" | 50 | 111 | 52 | 127 | 20 | 68 | 8 | 6 |
3" | 80 | 149 | 78 | 168 | 22 | 96 | 11 | 8 |
4" | 100 | 181 | 103 | 200 | 22 | 118 | 13 | 10 |
6" | 150 | 251 | 154 | 270 | 22 | 112 | 18 | 15 |
8" | 200 | 308 | 203 | 330 | 26 | 138 | 23 | 19 |
10" | 250 | 362 | 254 | 387 | 30 | 118 | 27 | 24 |
12" | 300 | 422 | 303 | 451 | 33 | 138 | 32 | 28 |
14" | 350 | 486 | 343 | 514 | 33 | 124 | 35 | 33 |
16" | 400 | 540 | 394 | 571 | 36 | 140 | 39 | 37 |
18" | 450 | 595 | 445 | 628 | 36 | 126 | 44 | 42 |
20" | 500 | 655 | 495 | 686 | 36 | 140 | 49 | 47 |
24" | 600 | 775 | 597 | 813 | 42 | 168 | 58 | 56 |
| | | | | | | | |
| | | | | | | | |
DIMENSIONS OF CLASS 600 FLANGES AS PER ANSI B 16.48 |
NB | a | B | C | D | E | T1 | T2 |
½" | 15 | 54 | 14 | 66 | | 30 | 5 | 4 |
¾" | 20 | 67 | 21 | 82 | | 36 | 6 | 4 |
1" | 25 | 73 | 27 | 89 | | 42 | 7 | 4 |
1 ½" | 40 | 95 | 41 | 114 | | 58 | 9 | 6 |
2" | 50 | 111 | 52 | 127 | 20 | 68 | 11 | 8 |
3" | 80 | 149 | 78 | 168 | 22 | 96 | 15 | 12 |
4" | 100 | 194 | 103 | 216 | 26 | 126 | 18 | 15 |
6" | 150 | 267 | 154 | 292 | 30 | 116 | 24 | 21 |
8" | 200 | 321 | 203 | 349 | 33 | 140 | 31 | 27 |
10" | 250 | 400 | 254 | 432 | 36 | 128 | 38 | 33 |
12" | 300 | 457 | 303 | 489 | 36 | 114 | 44 | 39 |
14" | 350 | 492 | 343 | 527 | 39 | 122 | 48 | 44 |
16" | 400 | 565 | 394 | 603 | 42 | 144 | 55 | 53 |
18" | 450 | 613 | 445 | 654 | 45 | 155 | 62 | 60 |
20" | 500 | 682 | 495 | 724 | 45 | 140 | 68 | 67 |
24" | 600 | 790 | 597 | 838 | 52 | 164 | 81 | 80 |
| | | | | | | | |
| | | | | | | | |
All dimensions are in millimeters unless otherwise indicated. | | | | | | | | |
| | | | | | | | |
| | | | | | | | |
General notes: | | | | | | | | |
? D = Hole size (where required) should be the same as the flange bolt hole. In practice, these dimensions have been rounded round off upwards. | | | | | | | | |
? T1 = Thickness Carbon Steel. | | | | | | | | |
? T2 = Thickness Stainless Steel. | | | | | | | | |
? W = Thickness of the web (or tie bar) should be 0.25 inch (6 mm) minimum, or equal to T1 and T2 if less than 0.25 inch (6 mm). | | | | | | | | |
? Spectacle Blinds should be made from a plate or forging specification, approved for use by ASME B31.3, of essentially the same chemical composition as the mating flanges | | | | | | | | |
and piping involved. | | | | | | | | |
? Depending on a customer specification, the dimensions can be different from what on this page is defined. | | | | | | | | |
