| Prod Model: |
Lifting Anchor |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Lifting |
| Process: |
Drop Forged |
| Quality: |
High |
| Testing: |
Qualified |
| Export Market: |
Global |
| OEM: |
Available |
| Other: |
Customized |
Product Description

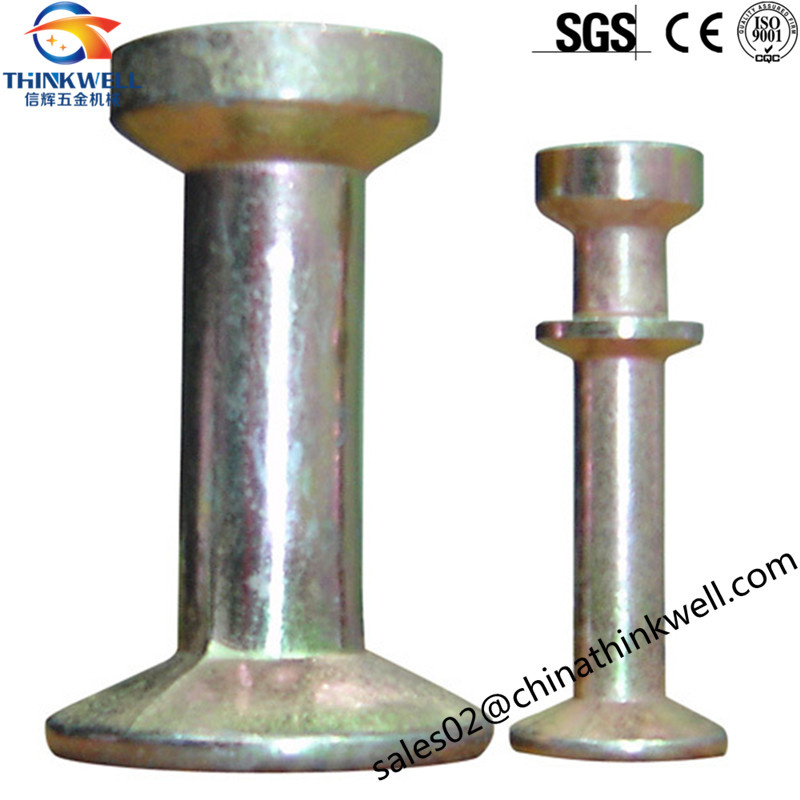

Spherical Head Precast Concrete Lifting Anchor
1. Model: Lifting Anchor
2. Materials: steel or stainless steel(AISI)304/316
3. Surface: Hot dipped galvanized, electro galvanized, and self-colored
4. Process: Drop forged
5. Packing: Carton, then in pallet
6. Special specifications and marks can be made according to customers' requirements
Origin: China
FOB port: Qingdao
Lead time: 15~45 Days
Main export market: US, Australia, European countries, India,etc
Standard: CE, ISO
Brand: Thinkwell
Dimension:
Working Load | Article No. | Spec. | Available Surface |
| 1.3T | ABS-1013-0035 | 1.3Tx35mm | Plain(black) | E.G(Electro Galv.) | H.D.G |
| ABS-1013-0040 | 1.3Tx40mm |
| ABS-1013-0045 | 1.3Tx45mm |
| ABS-1013-0050 | 1.3Tx50mm |
| ABS-1013-0055 | 1.3Tx55mm |
| ABS-1013-0065 | 1.3Tx65mm |
| ABS-1013-0085 | 1.3Tx85mm |
| ABS-1013-0120 | 1.3Tx120mm |
| ABS-1013-0200 | 1.3Tx200mm |
| ABS-1013-0240 | 1.3Tx240mm |
| 2.5T | ABS-1025-0045 | 2.5Tx45mm |
| ABS-1025-0055 | 2.5Tx55mm |
| ABS-1025-0065 | 2.5Tx65mm |
| ABS-1025-0070 | 2.5Tx70mm |
| ABS-1025-0085 | 2.5Tx85mm |
| ABS-1025-0100 | 2.5Tx100mm |
| ABS-1025-0120 | 2.5Tx120mm |
| ABS-1025-0140 | 2.5Tx140mm |
| ABS-1025-0170 | 2.5Tx170mm |
| ABS-1025-0280 | 2.5Tx280mm |
| 4.0T | ABS-1040-0055 | 4.0Tx55mm |
| ABS-1040-0065 | 4.0Tx65mm |
| ABS-1040-0075 | 4.0Tx75mm |
| 5.0T | ABS-1050-0065 | 5.0Tx65mm |
| ABS-1050-0075 | 5.0Tx75mm |
| ABS-1050-0080 | 5.0Tx80mm |
| ABS-1050-0085 | 5.0Tx85mm |
| ABS-1050-0095 | 5.0Tx95mm |
| ABS-1050-0110 | 5.0Tx110mm |
| ABS-1050-0120 | 5.0Tx120mm |
| ABS-1050-0140 | 5.0Tx140mm |
| ABS-1050-0160 | 5.0Tx160mm |
| ABS-1050-0180 | 5.0Tx180mm |
| ABS-1050-0210 | 5.0Tx210mm |
| ABS-1050-0240 | 5.0Tx240mm |
| ABS-1050-0300 | 5.0Tx300mm |
| ABS-1050-0340 | 5.0Tx340mm |
| 7.5T | ABS-1705-0085 | 7.5Tx85mm |
| ABS-1705-0095 | 7.5Tx95mm |
| ABS-1705-0100 | 7.5Tx100mm |
| ABS-1705-0115 | 7.5Tx115mm |
| ABS-1705-0120 | 7.5Tx120mm |
| ABS-1705-0140 | 7.5Tx140mm |
| ABS-1705-0150 | 7.5Tx150mm |
| ABS-1705-0160 | 7.5Tx160mm |
| ABS-1705-0165 | 7.5Tx165mm |
| ABS-1705-0200 | 7.5Tx200mm |
| ABS-1705-0240 | 7.5Tx240mm |
| ABS-1705-0300 | 7.5Tx300mm |
| ABS-1705-0540 | 7.5Tx540mm |
| 10.0T | ABS-1100-085 | 10Tx85mm |
| ABS-1100-100 | 10Tx100mm |
| ABS-1100-110 | 10Tx110mm |
| ABS-1100-115 | 10Tx115mm |
| ABS-1100-135 | 10Tx135mm |
| ABS-1100-150 | 10Tx150mm |
| ABS-1100-170 | 10Tx170mm |
| ABS-1100-200 | 10Tx200mm |
| ABS-1100-250 | 10Tx250mm |
| ABS-1100-340 | 10Tx340mm |
| ABS-1100-500 | 10Tx500mm |
| ABS-1100-650 | 10Tx650mm |
| ABS-1100-680 | 10Tx680mm |
| 15T(34) | ABS-1150-140 | 15Tx140mm |
| ABS-1150-165 | 15Tx165mm |
| ABS-1150-200 | 15Tx200mm |
| ABS-1150-300 | 15Tx300mm |
| ABS-1150-400 | 15Tx400mm |
| 15T(38) | ABS-1150-140B | 15Tx140mm |
| ABS-1150-165B | 15Tx165mm |
| ABS-1150-200B | 15Tx200mm |
| ABS-1150-300B | 15Tx300mm |
| ABS-1150-400B | 15Tx400mm |
| 20T | ABS-1200-200 | 20Tx200mm |
| ABS-1200-240 | 20Tx240mm |
| ABS-1200-250 | 20Tx250mm |
| ABS-1200-340 | 20Tx340mm |
| ABS-1200-500 | 20Tx500mm |
| ABS-1200-1000 | 20Tx1000mm |
| 32T | ABS-1320-0250 | 32Tx250mm |
| ABS-1320-0500 | 32Tx500mm |
| ABS-1320-0700 | 32Tx700mm |
| ABS-1320-1200 | 32Tx1200mm |
| 45T | ABS-1450-0250 | 45Tx250mm |
| ABS-1450-0500 | 45Tx500mm |
| ABS-1450-0700 | 45Tx700mm |
| ABS-1450-1200 | 45Tx1200mm |
