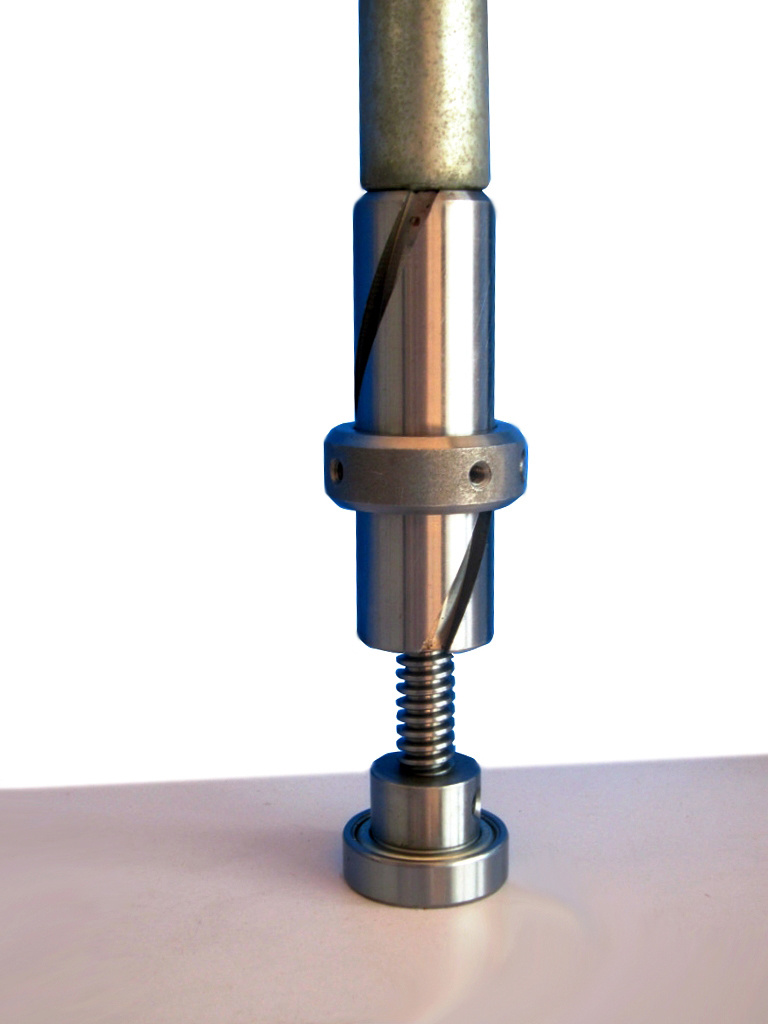

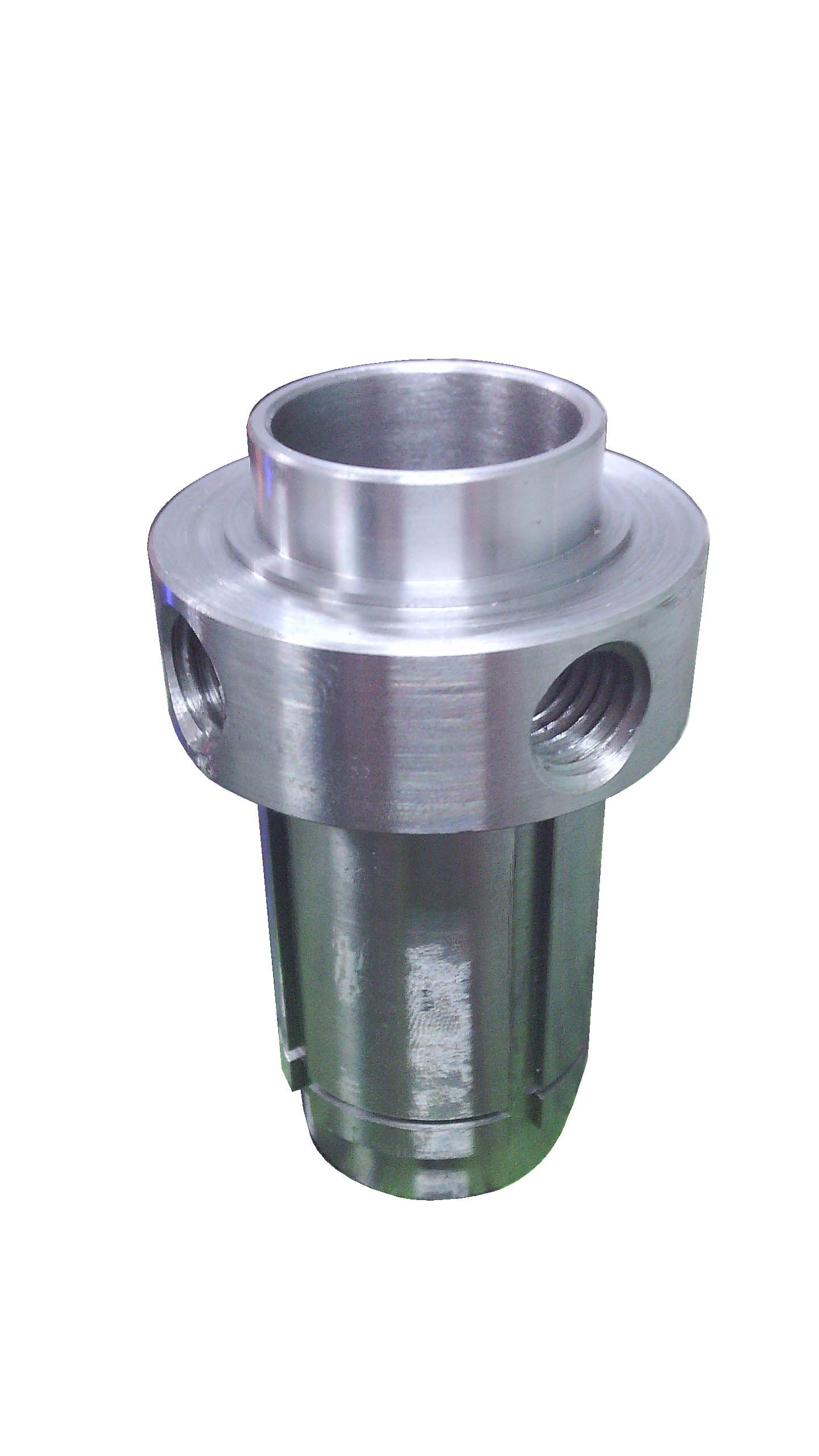

Spindle Shaft
| Price: |
US $ 10-12/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Module:1.0 1.25 1.5 1.75 2.0 2.5 .2.75
Material:steel, copper, aluminum and stainless steel, alloy steel.
Technological process: 1,sawing machine, 2 CNC, 3 gear shaper/ hobbing machine
4 drilling, 5 ultrasonic
(Each production lines are equipped with very perfect and the huge QC system fulfil each program quality control)
Tolerance and extreme deviation of worm
fh\fhL\fPx\ff1\fPxL mm
|
|
|
modulem
mm |
|
|
|
6 |
7 |
8 |
9 |
10 |
|
|
|
fh |
1~3.5 |
11 |
14 |
- |
- |
- |
|
|
>3.5~6.3 |
14 |
20 |
- |
- |
- |
|
|
>6.3~10 |
18 |
25 |
- |
- |
- |
|
|
>10~16 |
24 |
32 |
- |
- |
- |
|
|
>16~25 |
32 |
45 |
- |
- |
- |
|
|
fhL |
1~3.5 |
22 |
32 |
- |
- |
- |
|
|
>3.5~6.3 |
28 |
40 |
- |
- |
- |
|
|
>6.3~10 |
36 |
50 |
- |
- |
- |
|
|
>10~16 |
45 |
63 |
- |
- |
- |
|
|
>16~25 |
63 |
90 |
- |
- |
- |
|
|
fPx |
1~3.5 |
7.5 |
11 |
14 |
20 |
28 |
|
|
>3.5~6.3 |
9 |
14 |
20 |
25 |
36 |
|
|
>6.3~10 |
12 |
17 |
25 |
32 |
48 |
|
|
>10~16 |
16 |
22 |
32 |
46 |
63 |
|
|
>16~25 |
22 |
32 |
45 |
63 |
85 |
|
|
fPxL |
1~3.5 |
13 |
18 |
25 |
36 |
- |
|
|
>3.5~6.3 |
16 |
24 |
34 |
48 |
- |
|
|
>6.3~10 |
21 |
32 |
45 |
63 |
- |
|
|
>10~16 |
28 |
40 |
56 |
80 |
- |
|
|
>16~25 |
40 |
53 |
75 |
100 |
- |
|
|
ff1 |
1~3.5 |
11 |
16 |
22 |
32 |
45 |
|
|
>3.5~6.3 |
14 |
22 |
32 |
45 |
60 |
|
|
>6.3~10 |
19 |
28 |
40 |
53 |
75 |
|
|
>10~16 |
25 |
36 |
53 |
75 |
100 |
|
|
>16~25 |
36 |
53 |
75 |
100 |
140 |
|
Shengsimenghardware limited company is specialized produce carbon steel screws, the stainless steel screws, the copper screws, worm and other machining parts.
The company was established in August, 2004. Our team own independent factory district, and complete professional production. The company is ISO 9001 2008 quality certification system and ensure that measures to confirm the certificate enterprises.
The company has advanced production technology and production equipment, most of them are from Taiwan.
Products used for medical treatment sickbed drive, treadmill lifting, massager, door opener, solar
Machine, auto parts, most products exported to Europe, Africa, Southeast Asia and other places.
Our main clients include SKF, Easepal, Timotion etc are leading brand on the Chinese mainland.
Ten years of manufacturing experience and results so that we finaly believe that your coorperation with us will be even more brilliant.
