Spinning Extractor Machine for Laundry, Clothes, Sports Socks, Jemin

Prod Model:	SS75
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Three Leg Structure:	Easy to Operate
High Dewatering Efficency:	CE Quality
Drying Medium:	Inactive Gas
Appearance Of Dried Sample:	Bulk
Type Of Flow:	Contra-Flow
Operational Method:	Continuous
Structure:	Extracting Machine
Operation Pressure:	No Pressure
Movement Way:	Extracting or Squeezing
Heating Mode:	No Heating

Product Description

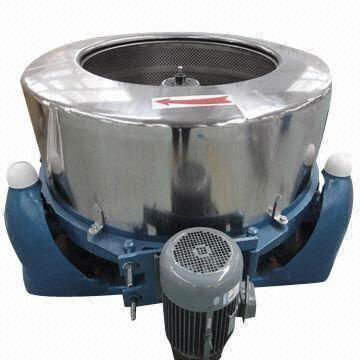

The diameter of the machine could be 600mm, 800mm, 1000mm, 1200mm, 1500mm. Three legs suspended machine is consist of the parts that triangle basement, casting steel legs, drum, outer shell, motor and so on, and both drum and outer shell are made of stainless steel. When the motor start, the drum will be driven by triangle rubber belt which pass power from motor to drum. There is also brake device in the machine which has good character that machine can be stopped in short time.

Main character of Spin Dryer:

1. Independent three legs suspended instruction can avoid shock caused by unbalanced loaded.

2. The durable drum is made of stainless steel.

3. Equipped with special brake arms which is durable and reliable make the machine more safe.

4. The motor will start with slow speed and reach supposed speed gradually, the drum will be driven by triangle rubber belt, running smooth and synchronous.

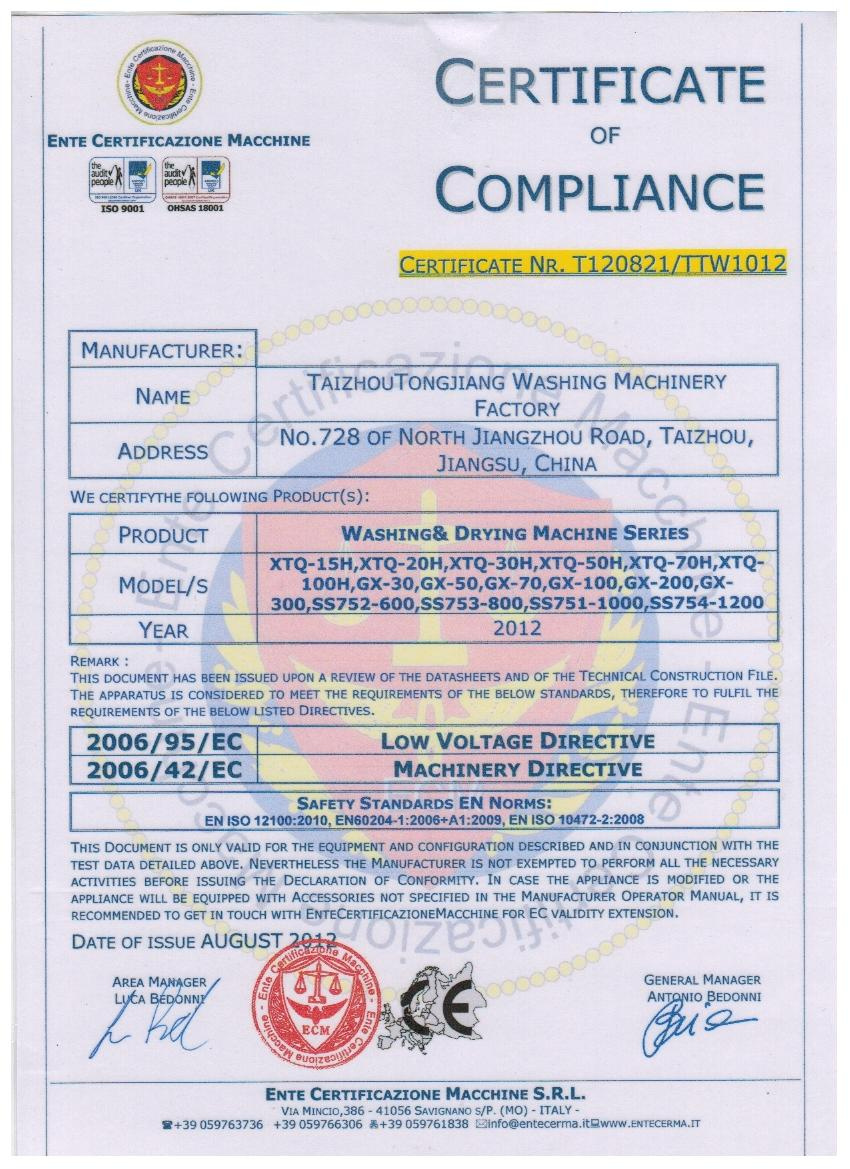

5. CE and ISO9001 certificates.

Type	SS752-500	SS752-600	SS753-800	SS751-1000	SS754-1200	SWE301-1500 (with  inverter)
Diameter  of  drum(mm)	500	600	800	1000	1200	1500
High  of  drum(mm)	260	300	340	380	480	600
Speed  of  drum(r/min)	1000	1000	910	900	750	750
Motor  power(Kw)	1.2	2.2	4	5.5	7.5	10
Max. capacity(Kg)	25	45	80	130	220	500
Overall  dimension(mm)	1000× 1000× 650	1250× 1250× 700	1500× 1500× 800	1800× 1800× 900	2000× 2000× 1000	2550× 1950× 1400
Weight  (Kg)	220	420	720	1050	1500	2800

laundry centrifuge machine & Hydro Extractor & laundry equipment

1. Three-legs suspended structure consists of the following parts: Triangle basement, casting steel legs, drum, outer body, motor and brake device in the machine which can be stopped in short time.

2. Independent three legs suspended instruction can avoid shock caused by unbalanced loading.

3. Equipped with special brake arms which is durable and reliable make the machine safer.

4. The motor will start with slow speed then to the required speed gradually. Then drum will be driven by triangle rubber belt, running smoothly and synchronously.

5. Stainless steel inner drum and body.

6. High efficiency, easy operation, low noise and safety, and used widely in the field, such as hotel, restaurant, laundry house, water washing plant, and laundry equipment for garment, fabric, apparel.

7. The drum size is from 500mm to 1500mm and its capacity is from 25kg to 220kg.

8. CE and ISO9001 certificates.

9. Packing: With wooden box

Specification:

model	capacity     (kg)	motor        power       (kw)	Rotate speed r/min	drum diameter (mm)	Drum height (mm)	overall dimensions (mm)	weight ( kg)
SS752-500	25	1.5	1000	500	260	1000*1000*650	220
SS752-600	45	2.2	1000	600	300	1250*1250*700	420
SS753-800	80	4	910	800	340	1500*1500*800	720
SS751-1000	130	5.5	900	1000	380	1800*1800*900	1050
SS754-1200	220	7.5	750	1200	480	2000*2000*1020	1500
SME301-150	500	10	750	1500	600	2550*1950*1400	2800

Apply in: Laundry shop / Hotel accessory products:
1.) Laundry shop
a. Small laundry shop equipment: ( <20 m²)
dry cleaning machine,washer-extractor,drying machine,ironing equipment
b. Middle laundry shop equipment: ( 20m²-40 m²)
dry cleaning machine,washer-extractor,drying machine,ironing equipment,press machine,packing machine,clothes converyor
c. Large laundry shop equipment: ( >40 m²)
dry cleaning machine,washer-extractor,drying machine,ironing equipment,press machine,packing machine,clothes converyor,stain removal table,form finisher,clothes disinfection cabinet,shoes washing machine,shoes dryinging machine
2). Hotel
a. Small hotel ( <50 rooms)
washer-extractor,drying machine,ironing machine
b. Large hotel (> 50 rooms)
washer-extractor,drying machine,ironing machine,folding machine,dry cleaning machine,press machine.

We can provide the professional proposal for you according to your situation.

Our service:
1. Integrating development, production, sale and service.
2. Complete modern production machines and high-level staff members.
3. Dedicated to designing and manufacturing dry cleaning machine,washing machine,dryer machine,folder  machine,ironer machine,extra-laundry equipment etc.
4. High quanlity products, competitive price,and excellent customer services are always our ultimate.
5. Create a win-win business relationship with you in the near future.
Company information:

1. Guangzhou Jinzhilai Washing Equipment Co.,Ltd was set up in 2006,we are a leading and professional laundry equipment manufacturer in China.
2. Our main products: Industrial washing machine, tumble dryer, ironing machine, folding machine,dry cleaning machine, etc.
3. Our products are popularly used in hotels,hospitals,restaurants,schools,laundries, etc.


FAQ

Q1. Are you a factory or a trading company?
A: We are a leading factory here,OEM is available.

Q2. How can I know you're real and your product is good.
If you want to cooperate with us sincerely,we can provide our other customers' contact information to you. They can  prove that.

Q3. Our power supply is 415v, 3phase, 50hz, can you provide it?
A: Yes,We can customize the power supply for you.

Q4. What's your machines' warranty?
A:We provide free parts and parts delivery, when manufacture defects has been detected during normal operation under warranty period.
All parts are under 12 months warranty with defects from manufacturer.
All electronic parts and components are also under this guarantee.

Q5. What is your delivery time?
A: Our delivery time is about 15-30 days after receiving deposit.
