Product Description

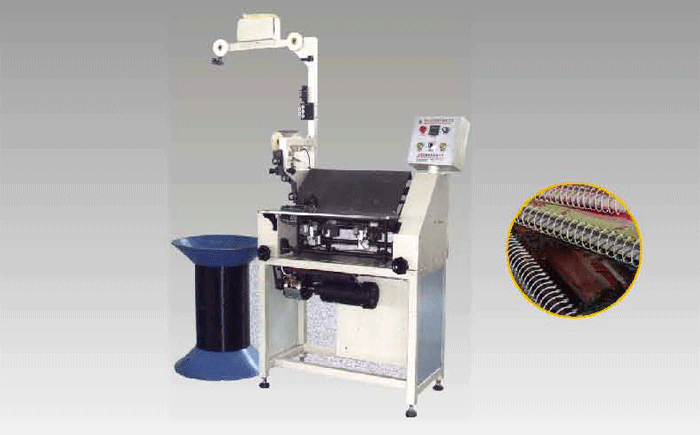

The machine is widely used for binding notebook, workbook, calendar and so on. The wire is unwound from a spool, straightened and smoothed by the special rectifying tools of the machine and then is guided via guide-rollers to the mandrel which forms the spiral and regulates the spiral diameter. The pre-punched product is placed onto the book supports. By starting the machine the spiral is introduced into the perforation. The needed spiral length can be adjusted at the electronic wire length control. The machine stops automatically when the wire reaches the required length and then the spiral is cut off and both spiral ends are bend inwards. The machine is ready for the next cycle.
1) Bound edge: 100mm - 420mm
2) Pitch: 1/5", 1/4", 5/16"
3) Speed: 300 - 700 products/hour depending on the product and operator
4) Power: 220V/ 50Hz,
5) Power of main motor: 0.75kw
6) Required space: 2000 x 1500mm
7) Weight: 150kg
Wuhan Maoyang Industry Company is a group company in the central of China. The group company established nearly10 years. And have three manufactories of metal wire, wire mesh and fasteners, and have trading company to sell these products to the international market.
Our business type are both for manufacturing and sales with some subsidiary manufactures and branches.
In order to develop our business further, we sincerely hope to cooperate with the business friends and establish good business relations in future.
