| Prod Model: |

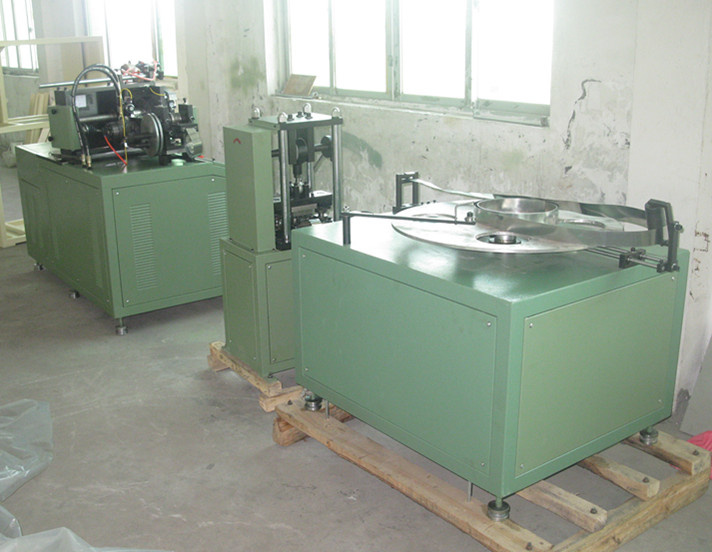

Spiral Tube Machine |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Metal Rolling&Drawing Machine |
Product Description
1. Specifications:
1)Product Capability: 20-35PCS/min
2)Center Tube Diameter: 30-75mm
3)Length of Center Tube to be processed: Any length required
4)Steel Plate Thickness: 0.25-0.32mm
5)Motor Power: 3kw
6)Power Supply: 380V 50Hz
7)Working Air Pressure: 0.6Mpa
8)Machine Weight: 800kg
9)Main Machine Size: 1600x800x1240mm (LxWxH)
10)Paper Decoiler Size: 1200x800x760mm(LxWxH)
2. Features:
1)The machine can easily change the diameter of screw tube in a short time.
2)Cut the needed length according to customer's require.
3)Can adjust the clutch according to the different thickness of the steel strip.
4)The computer control machine can save production costs and working procedures with it high efficiency, steady quality and economical materials.
5)Adopts hydraulic pressure drive, which has stron power and good stable.
3. Applications:
The machine is technically used in manufacturing the tube of the auto oil and fuel filters.
Our company is specialized in distributing the machines for the primary/middle/high efficiency filters, auto-oil/fuel/air filters, hydraulic filters and water treatment filters. After development over years, we have been the most modern company among the competitors because of our high level service, high quality and perfect management.
The machines range:
1. Heavy Duty Air Filter Production Line
2. Primary-Medium-High Efficiency Air Filter Production Line
3. PU Air Filter Production Line
4. ECO Filter Production Line
5. Spin-on Oil and Fuel Filter Elements and Components Production Line
6. Spin-on Oil and Fuel Filters Full-auto Assembly Line
7. Oil and Fuel Filters Testing Equipment
8. Cabin Air Filters/Toyota Air Filter Equipment
9. Other Auxiliary Equipment
