| Prod Model: |
TST-2 |
| Forging Forming Method: |
Mold Forging |
Product Description

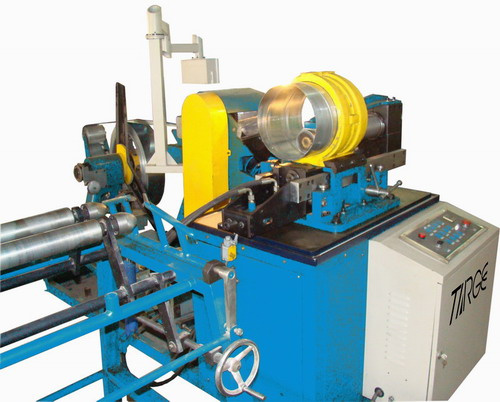

TARGE Spiral
Tubeformer(TST-2), fixed mold and flying slitter cutting system. Without noise or hot sparks.
Tube Diameter: 150~1500mm small diameters on request
Tube Length: 100~8000mm
Thickness: 0.4~1.2mm T/S 0.4~0.8mm S/S
Strip Width: 137~140mm
Strip Speed: 1~35m/min
Dimensions: 3400x1100x1500mm
Weight: 2000kg
Controlling System: PLC
Main Power: 19.12KW
Uncoiler: Max 1200Kg
Cutting System: Flying Slitter ot Saw blade
The mold technique gives the customer the possibility to choose between anumber of options, allowing him to create a machine for his specific needs. The flying slitter cuts the tubes to length without noise or hot sparks as known from the saws and provides smooth tube ends without deburring.
Targe Tubeformer Co., Ltd. specailizes in manufacturing tubeformers. And it'sproducts containing spiral tubeformer, elbow making machine, beading machine, flange making machine, pittsburgh locking machine, etc. And we can provide our customers with high quality products as well as good sevice.
