| Prod Model: |
trailer axle |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
SGS, ISO/Ts16949, ISO |
| Condition: |
New |
| Loading Weight: |
12t 14t 16t |
| Color: |
Black or as Requested |
| Capacity: |
12ton 14ton 16ton |
| Axle Beam: |
Square 150*150 |
| Bearing: |
33118 33213; 33215 32219; 32222 32314 |
| Brake Size: |
420*180; 420*200; 420*220 |
| Type: |
Semi-Trailer |
Product Description

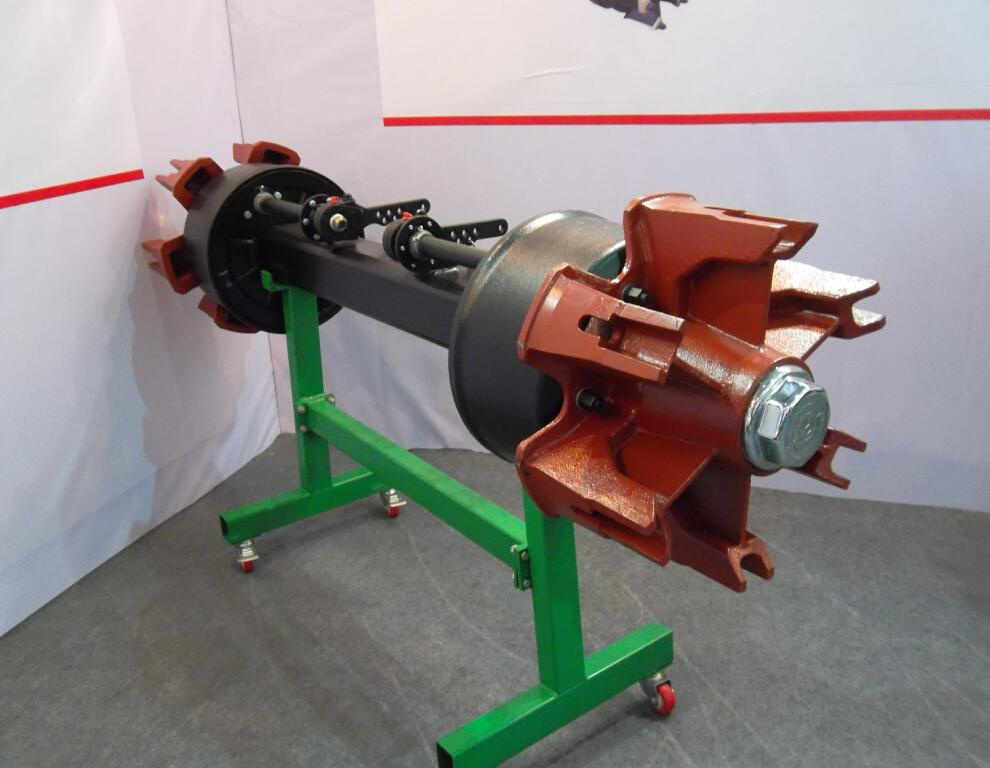

Trailer parts use spoke trailer axle
1.We are manufacturer;
2.We have three own factories, so can produce as your requests;
3.ISO9001:2008;TS16949;SGS...
Introduction of enterprise:
QINGDAO KAMAN TRANSPORT EQUIPMENT Co., Ltd.Has introduced sophisticated equipment from overseas to develop and manufacture semi-trailer axles and related parts.Holding ISO9001:2000 certification for our management system, we faithfully follow the stipulations of this standard so as to guarantee high product quality.
Following the principle of " Customers first", our products are guaranteed to be dependable quality and be offered with full after-sales service.Located in Qingdao City, Shandong Province, close to the one of China's main deepwater ports, we can thereby expedite the delivery of all orders.Welcoming interested companies around the world to cooperate with us, we are looking forward to receiving your detailed inquiries.
Characteristics:
1.Special heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performance, strong load ability and lower self weight.
2.High quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability.
3.High performance premium non-asbestos brake linings, estend serbice life.
4.Easy for ABS installation.
5.Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety.
6.New tight fit hub cap habe O rings, high property for sealing.
7.Grease lubricant is supplied by Mobil that lengthens the time of free maintenance.
8.Full range of stud fixing such as ISO, BSF and JAP, it can meet the requirements of various wheel rims.
Scope of our business
1.Axles (German type axle, English type axle, American type axle, Spoke axle, ZM axle, Agriculture axle, Half axle, Axle without brake)
2.Suspension (Bogie suspension, One point suspension, Rigid suspension, Spoke suspension, Machinery suspension)
3.Landing gear
4.Fifth wheel (2'' 3.5'')
5.King pin (2'' 3.5'')
6.Semi trailer
7.Other axles and related parts (Low bed axle, hub, rims, spring, drum...)
Contact information:
| SPOKE AXLE SPECIFICATIONS |
| Axle type | Capacity | Axle beam | Bearing | Brake size | Wheel bolt | Weight(kg) | Track length | Remarks |
| KMD61218 | 12T | 150*150 | 33118 33213 | 420*180 | M20-6 | 430 | 1870mm | Germany type |
| KMD61220 | 12T | 150*150 | 33118 33213 | 420*200 | M20-6 | 450 | 1870mm | Germany type |
| KMD61222 | 12T | 150*150 | 33118 33213 | 420*220 | M20-6 | 462 | 1870mm | Germany type |
| KMD61418 | 14T | 150*150 | 33215 32219 | 420*180 | M20-6 | 462 | 1870mm | Germany type |
| KMD61420 | 14T | 150*150 | 33215 32219 | 420*200 | M20-6 | 462 | 1870mm | Germany type |
| KMD61422 | 14T | 150*150 | 33215 32219 | 420*220 | M20-6 | 462 | 1870mm | Germany type |
| KMD61620 | 16T | 150*150 | 32222 32314 | 420*200 | M20-6 | 566 | 1870mm | Germany type |
| KMD61622 | 16T | 150*150 | 32222 32314 | 420*220 | M20-6 | 580 | 1870mm | Germany type |
| KMK61218 | 12T | 150*150 | 218248 220149 | 420*180 | (3/4''-10)-5 | 370 | 1850mm |
|
| KMY61622 | 16T | 150*150 | 218248 220149 | 420*220 | M20-6 | 450 | 1850mm |
|
| KMF61218 | 12T | 150*150 | 518445 518445 | 420*180 | M16*1.5-6 | 430 | 1850mm | American type |
Qingdao Kaman transpotation Equipment Co., Ltd. Has introduced sophisticated equipment from overseas to develop and manufacture semi-trailer axles and related parts. Holding ISO9001: 2000 certification for our management system, we faithfully follow the stipulations of this standard so as to guarantee high product quality.
A supplier for several Chinese automobile producers, we also export our series to clients throughout the international marketplace. Our main overseas customer bases now include Southeast Asia, Europe, North America and the Middle East.
Following the principle of "Customers first", our products are guaranteed to be of dependable quality and be offered with full after-sales service. Located in Qingdao City, Shandong Province, close to one of China' S main deepwater ports, we can thereby expedite the delivery of all orders.
Welcoming interested companies around the world to cooperate with us, we are look forward to receiving your detailed inquiries.
Our main products.
Germany type axle: 16ton 14ton 12ton
English type axle: 16ton 13ton
American type axle 16ton 13ton
Spoke axle, ZM axle, Agriculture axle, Brasilian axle, spoke half axle and axle without brake
SUSPENSION
24ton 28ton 32ton suspension, spoke suspension and 16wheel 45-100t rigid suspension, 45t 65t cross-core suspension.
And machinery suspension(3axle and 4axle)
