Product Description
Introduction

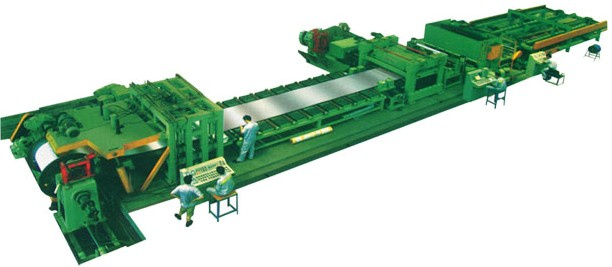

Stainless moderato uncoiling-leveling-cut to length-stacking line
This line is used for stainless coil with different specifications, through uncoiling-leveling-cutting to flattened plates as needed length.
This line is composed of coil car, double head uncoiler, hydraulic pressing & guiding, shovel head, pinch device, leveler, encoder and length gauge, hydraulic pendulum shearer, feeder, pneumatic stacker, unloading car, electric system, etc. As well as rollaway nest, steering device, etc.
Main technical parameter
MODEL/NAME JP 1-5 JP 2-8 JP 3-10 JP 4-14 JP 6-16
Coil thickness(mm) 1-5 2-8 3-10 4-14 6-16
Coil width(mm) 800-2000 800-2000 800-2000 800-2200 800-2200
Cutting length range(mm) 1000-6000 1000-8000 1000-10000 1000-12000 1000-12000
Cutting length precision(mm) +/- 0.5 +/- 1.0 +/- 1.0 +/- 1.0 +/- 1.0
Leveling precision(mm/m2) 1-3 1-3 1-3 1-3 1-2
Line speed(m/min) 0-24 0-24 0-24 0-18 0-18
Stacker capacity(T) 15 15 15 15 15
Coil weight(T) 30T 30T 30T 30T 30T
JACK-AIVA is professional in the exporting, designing and manufacturing of quality cold roll forming machines in the related metal sheet processing machinery industry. Our highest priority is on customizing our products. We focus on quality and aim to achieve total customer satisfaction with good service and a high technical support. We specialize in the design and manufacture of roll forming machinery for the production of different industries,
Metal roof, siding and metal tile, Flash, ridge cap, downspout, gutter, C-Z Purlins
Rolling shutter door & window, doorframe, sliding door track and rail, Telescopic track, Curtain rail, track, drawer slides, Ceiling t-bar, drywall Frames, Decorative sheets, Shelving and racking, Post-tensioning duct, tube former, HVAC Duct TDC, TDF flange, PDF3 flange, CGF1 flange, cross beading sheets, etc, Automotive Track, beam, doorframe, bumper, etc, Metal embossing sheets, Expressway Guard Rail and post, etc.
Our commitment to excellence also extends to our leading after-sales service and the ideal of improved service, cost, delivery, and of course, quality. Sincerely hope we can become your Chinese supplier and partner in the related cold roll forming machines industry.
Welcome to visit us in the future! Today JACK-AIVA offers a one-stop-shop to meet all of your needs.
