| Prod Model: |
Flange |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Size: |
1/2"-48" |
| Pressure Rating: |
ANSI, BS, DIN, JIS |
| Material Standard: |
ASTM, JIS, DIN, ANSI |
| Type: |
Flange |
| Shapes: |
Slip-on, Weld Neck, Blind, Threaded, Socket Weldin |
| Technique: |
Seamless or Welded |
| Application: |
Special Applications |
| MOQ: |
5 Pieces |
| Surface Treatment: |
Solution Treatment, Anti-Rust Oil |
| Ship Method: |
by Sea |
| Shape: |
Equal |
| Technics: |
Forged |
| Certification: |
BS |
| Color: |
Silver |
| Connection: |
Seamless or Welded |
| Head Code: |
as You Request |
| Angle: |
as You Request |
| Wall Thickness: |
1/2"-48" |
| Material: |
Carbon Steel,Stainless Steel ,Alloy Steel etc |
Product Description

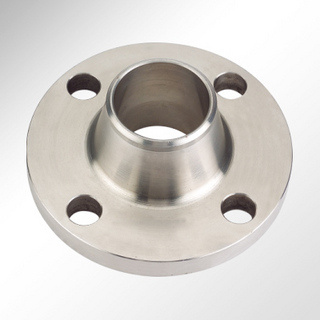

stainless steel flanges with customerized requirement
Product Description
Flanges (ASTM, JIS, DIN, ANSI)
Standards: ANSI, BS, DIN, JIS and MSS etc.
Materials: Carbon steel, Stainless steel and Alloy steel etc.
Size: 1/2" ~ 64"(DN15 mm ~ 1600 mm)
Type: Slip-On, Welding Neck, Blind, Socket Welding, Threaded, Lap Joint and Plate etc.
Pressure Ratings: Class 150, 300, 600, 900, 1500 and 2500
Pressure Ratings: PN 6, PN 10, PN16, PN25, PN40 and PN64
Pressure Ratings: JIS 5K, 10K, 16K and 20K
Product |
Flanges (ASTM, JIS, DIN, ANSI) forged carbon steel flange, forged flange,weld neck flange, slip on flange , plate flange , blind flange |
Standard |
ANSI B16.5 ,ASME B16.47 ,DIN,JIS,GB,BS etc... |
Material |
Carbon steel,stainless steel ,alloy steel etc^ |
Size |
1/2"-48" |
Pressure Rating |
ANSI:Class 75, Class 150, Class 300, Class 600, Class 900, Class 1500, Class 2500
DIN:PN 6,PN 10,PN 16,PN 25,PN 40,PN 64,PN 100 ;
JIS:1K,2K,5K,10K,16K,20K,30K,40K,63K ;
BS:PN6,PN10,PN16,PN25,PN40 |
Surface treatment |
Anti-rust oil,Transparent oil ,Zinc Galvanized or as customer's special requirement |
Packaging Details |
Wooden cases,wooden pallet plastic bag or as customer's special requirement |
Delivery time |
15-30 days after conformed or according to customers requirement |
1 |
STANDARD (FORGED FLANGE) |
ASME /ANSI B16.5 |
2 |
TYPE |
SLIP-ON, WELD NECK, BLIND, THREADED, SOCKET
WELDING, LAP JOINT |
3 |
CLASS(LB) |
150, 300, 400, 600, 900, 1500, 2500 |
4 |
SIZE |
1/2 -24inch(DN10-600) |
5 |
MATERIAL |
STAINLESS STEEL: F304, F304L, F316L, SS304 |
6 |
SURFACE TREATMENT |
Solution Treatment, Anti-rust Oil; |
7 |
PACKING |
PLYWOOD CASE |
8 |
PAYMENT |
T/T, B/L |
9 |
DELIVERY TIME |
15-30DAYS AFTER RECEIVING PAYMENT
|
1 |
STANDARD (FORGED FLANGE) |
BS4504 |
2 |
TYPE |
PLATE, SLIP-ON, WELD NECK, THREADED, BLIND |
3 |
SIZE |
DN10-2000: PL, WN, BL; DN10-600: SO; DN10-1000: TH |
4 |
MATERIAL |
STAINLESS STEEL: F304, F304L, F316, F316L, SS304 |
5 |
SURFACE TREATMENT |
Solution Treatment, Anti-rust Oil; |
6 |
PACKING |
PLYWOOD CASE |
7 |
PAYMENT |
T/T, B/L |
8 |
DELIVERY TIME |
15-30DAYS AFTER RECEIVING PAYMENT |
9 |
PRESSURE |
PN2.5, PN6.0, PN10.0, PN16.0, PN25.0, PN40.0 |
Materials: Carbon Steel, Alloy Steel, Stainless steel.
Size: 1/8" NB TO 48"NB.
Rating: 150#, 300#, 400#, 600#, 900#, 1500#, 2500#.
Standard: ANSI, DIN, BS.
Blind Flanges
Blind flanges are sometimes supplied with NPT fittings which allow pressure test connections to be fitted.
They are used to blank off the ends of pipe.
They are also used to blank off the ends of valves and pressure vessel opening.
Considering factors like internal pressure and bolt loading, blind flanges, especially in the larger sizes, are the most highly stressed of all types of flanges.
Since the maximum stresses in a blind flange are bending stresses at the center, they can safely be allowed to be higher than in other types of flanges.
Reducing Flanges
Reducing flanges are designed for use in changing diameters in a piping system. A reducing flange comprises a flange with one specified diameter having a bore of a different and smaller, diameter. Except for the bore and hub dimensions, the reducing flange will have dimensions of the larger pipe size. These flanges are used at the outlet side of the expansion joint to increase the size of the flange. This is considered to be an economical method to make a transition in size.
Materials: Carbon Steel, Stainless Steel Grades, Duplex Steel.
Size: 0.5"NB TO 48"NB.
Slip-on Flanges
The slip-on flanges have a low hub because the pipe slips into the flange prior to welding. It is welded both inside and out to provide sufficient strength and prevent leakage. They are ideal for low pressure applications.
Weld Neck Flanges
Weld Neck Flanges are confined to special applications. Their chief merit lies in the fact that they can be assembled without welding this explains their use in extremely high pressure services, particularly at or near atmospheric temperature, when alloy steel is essential for strength and where the necessary post weld heat treatment is impractical.
Our Services
a) Small MOQ of steel flanges
b) Large supply ability of steel flanges
c) Can accept any complex inquiry of steel flanges
d) Stock available of steel flanges
e) Strong processing and warehousing service for steel flanges
f) Strict quality control for steel flanges
g) Professional negotiation for steel flanges
Packaging & Shipping
Wooden cases,wooden pallet plastic bag or as customer's special requirement
Company Information
Vast Link Industrial Co.,Ltd have a registered capital of US$ 50 million.
Our company is engaged in the production and trade of all kinds of steel flanges. steel bend and pipe fittings is our main production and sell well. We have established business relationships with clients in the Korea, Japan, Singapore, Iran, Dubai, Yemen, Chile, Brazil, France, UK, Italy, Canada and more than 20 countries and regions for steel flanges. Annual sales revenue is USD 50 billion. The details of payment method, delivery time and minimium quantity and so on for steel flanges can be negotiated according to the order.
Founded in 1996, Shanghai Vast Link Industrial Co., Ltd., (Vast Link Int'l Co., Limited)is a modern business group conglomerating steel production, trade, storage and processing, and logistics and distribution. Our headquarters is at the Zhabei District of Shanghai, and we have our own sales and service branch in Busan, South Korea.
After years of development and endeavor, Vast Link has become one of the largest steel products suppliers in Shanghai, China. Not only has our company occupied a large share in the domestic market, but also we have actively explored the international market. So, our products sell very well in Europe, Africa, Middle East, Southeast Asia, South America and others, and we have exported more than 100, 000 tons of steel products in three consecutive years. In year 2010, we exported more than 40, 000 tons of carbon & stainless steel pipes and over 80, 000 tons of CRC/GI/PPGI coils & sheets.
With production base located at Nanhai Town, Foshan City, Guangdong Province, Vast Link is a well-known steel pipe producer in China, and our principal products are stainless steel pipes, carbon steel pipes and so on. We have a number of senior engineers and quality engineers responsible for production management, and have a mature and reliable quality management system. In 2006, our company passed the ISO9001: 2000 quality system certification.
At the same time Vast Link is the Level A agent in China of the Angang Steel Company Limited and of the Masteel, the two extra large-sized state-owned iron and steel complexes famous in China, we have established a stable long-term strategic cooperative relationship with them. Not only can we provide customers with big steel company's products of the lowest price in the market, but also we can ensure a stable goods supply. The products of the Angang Steel Company Limited and the Masteel we act for are mainly: Galvanized Steel Coils/Cold Rolled Steel Coils/Prepaited Galvanized coils. In addition, our company is the special agent of the well-known stainless steel roll manufacturer, TISCO.
Besides, Vast Link is a large-scale distributor in Shanghai, and have a large indoor storage and processing warehouse in Baoshan District of Shanghai where there are above 50, 000 tons of cold rolled products stock all year round; At the same time, we provide customers with such services as shearing, slitting, packaging and etc.
To satisfy the customer is our target. It runs through every link of the production. Please do not hesitate to contact us if you are interested in our products, and we will give you a quick and satisfied reply.
