Stainless Steel Flanges

Name: Stainless Steel Flanges
Brand: china-castingforging.com
SKU: 679382172
Availability: InStock
Rating: 4.9 (135 reviews)

Price:	US $ 3-6/Piece
Trade Terms:	FOB,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Qingdao Hengyong Valves Industry Co., Ltd.

Showroom Product Company Profile

Prod Model:	weld neck
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Manufacturing Way:	Casting
Material:	Stainless Steel
Type:	Welding Flange
Standard:	ANSI,DIN,JIS

Product Description

16-Bar
DIN 2543 SLIP-ON FLANGES
DIN 2527 BLIND FLANGES

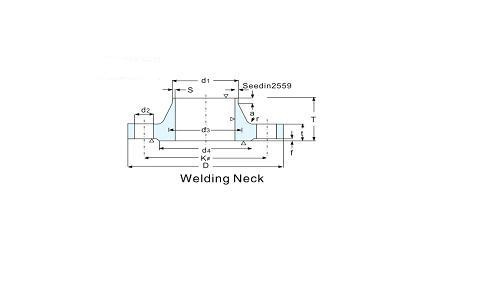

DIN 2633 WEIDING-NECK FLANGES

PIPE MATING DIM		FLANGE						Raised face
Nominal width	D1	D	t			K	T	D4	f
Nominal width	D1	D	Welding Neck	Slip-on (no-hub)	Blind	K	T	D4	f
10 15 20	14 17.2 20 21.3 25 26.9	90 95 105	14 14 16	14 16	14 14 16	60 65 70	35 35 38	40 45 58	2 2 2
25 32 40	30 33.7 38 42.4 44.5 48.3	115 140 150	16 16 16	16 16 16	16 16 16	85 100 110	38 40 42	68 78 88	2 2 3
50 65 80	57 60.3 76.1 88.9	165 185 200	18 18 20	18 18 20	18 18 20	125 145 160	45 45 50	102 122 138	3 3 3
100 125 150	108 114.3 133 139.7 159 168.3	220 250 285	20 22 22	20 22 22	20 22 22	180 210 240	52 55 55	158 188 212	3 3 3
200 250 300	216 219.1 267 273 318 323.9	340 405 460	24 26 28	24 26 28	24 26 28	295 355 410	62 70 78	268 320 378	3 3 4
350 400 500	355.6 368 406.4 419 508 521	520 580 715	30 32 34	30 32 36	30 32 34	470 525 650	82 85 90	438 490 610	4 4 4
600 700 800	609.6 622 711.2 720 812.8 820	840 910 1025	36 36 38	40		770 840 950	95 100 105	725 795 900	5 5 5
900 1000	914.4 920 1016 1020	1125 1255	40 42			1050 1170	110 120	1000 1115	5 5

Hub				Bolts				Approx Weight(kg)
D3	s	r	A~~	Q’ty	Thread		D2	DIN 2543	DIN 2633
25 28 30 32 38 40	1.8 2.0 2.3	4 4 4	6 6 6	4 4 4	M12 M12 M12	1/2” 1/2” 1/2”	14 14 14	0.63 0.72 1.01	0.580 0.648 0.952
42 45 52 56 60 64	2.6 2.6 2.6	4 6 6	6 6 7	4 4 4	M12 M16 M16	1/2” 5/8” 5/8”	14 18 18	1.23 1.80 2.09	1.14 1.69 1.86
72 75 90 105	2.9 2.9 3.2	6 6 8	8 10 10	4 4 8	M16 M16 M16	5/8” 5/8” 5/8”	18 18 18	2.88 3.66 4.77	2.53 3.06 3.70
125 131 150 156 175 184	3.6 4.0 4.5	8 8 10	12 12 12	8 8 8	M16 M16 M20	5/8” 5/8” 3/4”	18 18 23	5.65 8.42 10.4	4.62 6.30 7.75
232 235 285 292 338 344	5.9 6.3 7.1	10 12 12	16 16 16	12 12 12	M20 M24 M34	3/4” 7/8” 7/8”	23 27 27	16.1 24.9 35.1	11.0 15.6 22.0
390 445 548	8.0 8.0 8.0	12 12 12	16 16 16	16 16 20	M24 M27 M30	1/4” 1” 11/8”	27 30 33	47.8 63.5 102.0	28.7 36.3 59.3
652 755 855	8.8 8.8 10.0	12 12 12	18 18 20	20 24 24	M33 M33 M36	11/4” 11/4” 13/8”	36 36 39
955 1058	10.0 10.0	12 16	20 20	28 28	M36 M39	13/8” 11/2”	39 42

Established in Qingdao, China in 1990, Qingdao Hengyong Valve Industrial has grown to become the Top manufacture of casted Stainless Steel Flanges and Stainless Steel Ball Valves in China. Now Hengyong Valve Industrial exported stainless steel flange and ball valve to 23 different countries.

Our Products Range include:

1. Stainless Steel Flanges: DIN/UNI/JIS/ASME/BS, Type include WN/BL/SO/PL/SW, size from 2" to 24".

2. Stainless Steel Valves: Manual or electric or pneumatic 1PC, 2PC, 3PC ball valves, globe valves, check valves, gate valves, Y strainers,

3. Stainless Steel Pipe Fittings: Quickly Coupling, Union, Camlocks and 150LBS fittings

4. Metal Castings from precision lost wax investment casting and Sand Casting process.

Our Production Capacity:

Flanges about 3000ton/annual, and Valves about 1000ton/annual.

In 2008, Qingdao Hengyong Valve Industrial was audited ISO9001-2008 Quality certification by TUV company.

For Further information pls contact.
