| Price: | US $ 3/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1000/Piece |
| Pay Type: | T/T |
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
|---|---|
| Stair Railing / Handrail: | Stainless Steel |
| Baluster: | Stainless Steel |
| Stair Tread: | Stainless Steel |

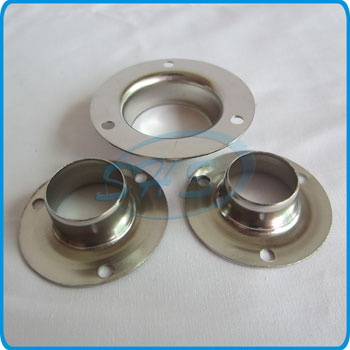

Item Name: | Stainless Steel Flanges | ||||||||
| Standard: | ASTM A554 | ||||||||
| Grade of Material: | AISI 201, 304, 304L, 316, 316L, etc. | ||||||||
| Certificate: | ISO 9001: 2008 | ||||||||
| Dimension: | Normal | ||||||||
| Wall Thickness: | 0.3 mm - 3.0 mm | ||||||||
| Surface: | Polished 320 G, 400 G, 600 G; Hairline; Descaled. | ||||||||
| Length: | Normal | ||||||||
| Packing: | According to client request. | ||||||||
| Application: | Decoration, construction & building, such as handrail, railing, window, furniture, etc. | ||||||||
| Chemical Composition: | Grade of Material | C | Si | Mn | P | S | Ni | Cr | Mo |
| AISI 201 | ≤0.15 | ≤1.00 | 5.50~7.50 | ≤0.060 | ≤0.03 | 1.00 ~1.50 | 13.50~15.00 | \ | |
| AISI 202 | ≤0.15 | ≤1.00 | 7.50~10.00 | ≤0.060 | ≤0.03 | 4.00~6.00 | 17.00~19.00 | \ | |
| AISI 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00~11.00 | 18.00~20.00 | \ | |
| AISI 304L | ≤0.035 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00~13.00 | 18.00~20.00 | \ | |
| AISI 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00~14.00 | 16.00~18.00 | 2.00~3.00 | |
| AISI 316L | ≤0.035 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00~14.00 | 16.00~18.00 | 2.00~3.00 | |
| Mechanical Property: | Grade of Material | Elongation (%) | Tensile Strengh (Rm) N/m m³ | Yield Strength (Rp) 0.2%N/m m³ | Hardness (HV) | ||||
| AISI 201 | ≥35 | ≥520 | ≥210 | ≤253 | |||||
| AISI 202 | ≥35 | ≥590 | ≥210 | ≤218 | |||||
| AISI 304 | ≥35 | ≥520 | ≥210 | ≤200 | |||||
| AISI 304L | ≥35 | ≥480 | ≥180 | ≤200 | |||||
| AISI 316 | ≥35 | ≥520 | ≥210 | ≤200 | |||||
| AISI 316L | ≥35 | ≥480 | ≥180 | ≤200 | |||||
