| Prod Model: |
1/2"-64" |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Manufacturing Way: |
Forging |
| Material: |
Stainless Steel |
| Type: |
Welding Flange |
| Standard: |
ANSI/Asme,GOST,DIN, JIS,En,Bs,GB, etc |

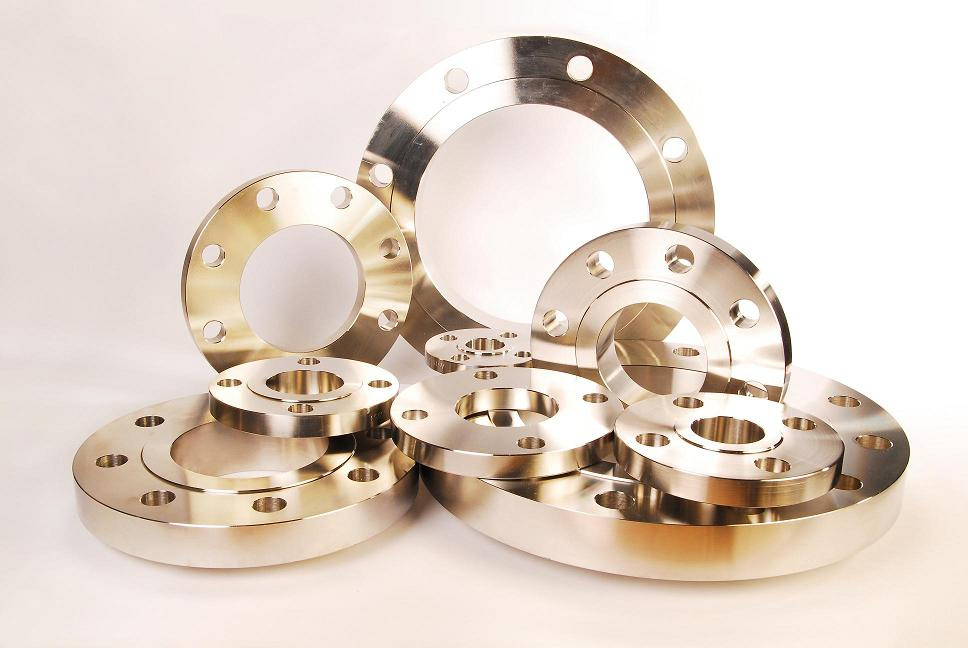

Product Description
Cangzhou Xingye Pipe Fitting Co., Ltd, Professional flanges and fittings manufacturers, was established in 1992 and we began to do flange export business since 2007. We have got a good reputation from our clients due to first class quality, rich export experience and punctual delivery.
1. Raw Material: Stainless steel, Carbon steel, Alloy steel
2. Types: WN, SO, BL, PL, TH, LJ, SW, etc
3. FOB: 1-225$/PCS
Welcome ur products drawing, we will send our quotation and specifications to you.
|
Type: |
Slip-on, Welding Neck, Socket Welding, Lap Joint, Studding Outlet, Threaded and Plate etc. |
|
|
Pressure Rating: |
Class 150, 300, 600, 900, 1500 and 2500. |
|
|
PN 6, PN 10, PN 16, PN25, PN40 and PN 64. |
|
|
JIS 5K, 10K, 16K and 20K. |
|
|
Standard |
ANSI, DIN, EN, BS, JIS, AWWA, GB and etc. |
|
|
Material: |
Stainless Steel, Carbon Steel, Alloy Steel and etc. |
|
|
Size: |
Up to 5000mm |
|
|
Item |
Standard |
Size |
PN |
Type |
Material |
|
|
1 |
ANSI B 16.5 |
1/2”-24” |
150-2500LBS |
BL, SO, SW, LJ, WN, THD |
A105, A350 LF2 A182, F11 A182, F3O4/F304L/ F316/F316L |
|
|
2 |
LONG WN |
1/2-24” |
150-2500LBS |
Long Welding-neck |
A 105, A305, F2 A 182, F304/F304L,F306/F306L |
|
|
3 |
ANSI B 16.47(MSS SP-44) |
26”-60” |
150-900LBS |
BL, WN |
A105, A350LF2, A182, A694,F304/F304L, F316/F316L |
|
|
4 |
BS3293-1960 |
26”-48” |
150-600LBS |
SO, WN |
A105, A350LF2, A182,F304/F304L, F316/F316L |
|
|
5 |
ANSI B 16.47 B (API1605) |
26”-60” |
75-900LBS |
BL, WN |
A105, A350LF2, A182, F304/F304L, F316/F316L |
|
|
|
|
6 |
ASME B 16.36 |
1”-24” |
300-2500LBS |
SO, WN, THD |
A105, A181, A36, A516Gr.60/65/70 |
|
|
7 |
AWWA C207 |
4”-144” |
Class B,D,E,F T/1 |
PL |
EN10025(S235JRG2),EN10222-2/3(P245GH/P280GH), EN10225(1.4303, 1.4306, 1.4307, 1.4401, 1.4404, 1.4435, 1.4541, 1.4571) A105/C21/1.0432 C22.8/P150GH/ 1.0460 |
|
|
8 |
EN1092-1:2002 |
DN10-4000 |
PN2.5-PN100 |
Type 01, 02, 04, 05, 11, 12, 13, 21, 32, 33, 34 |
BS970 070M20 BS4360 |
|
|
GR.43A BS1503-164 |
|
|
GR.490 |
|
|
BS 1503-224 GR.410 |
|
|
BS 1503-304S11 |
|
|
304S31 321S31 316S31N316S11 |
|
|
9 |
BS4504 |
NS15-2000 |
PN2.5-PN40 |
Code101, 102, 104, 105, 111, 112, 113, 121, 132, 133, 134 |
BS1501-161 GR.B/CBS1633/ GR.B BS 1503-240/ GR.240 BS 1503-620 BS3604 |
|
|
SEC.3.1/1989 |
|
|
10 |
BS10-1962 |
NB10-3000 |
Table D/E/H/J |
SO, THD, BL, WN |
ISO2604-1/ F8/ F9/ F13/ F18/ F22/ F49/ F62/ F59 |
|
|
11 |
ISO 7005-1 |
DN10-4000 |
PN2.5-PN420 |
Type01, 02, 03, 04, 05, 11, 12, 13, 14, 15, 21, 32, 33, 34, 35 |
NFE29204/ BF 42/ BF 42N/ BF 48/ BF 48N |
|
|
12 |
NFE29203 |
DN10-600 |
PN2.5-420 |
SOP(PL),SOH(SO, A B C) |
GIS G3101 SS41/ JIS G3201 SF40A(S20C)/ SF45A(S25C)/ JIS G3202 SFVC1/ SFVC 2A |
|
|
13 |
DIN |
10A-1500A |
PN: 5K-30K |
SO, BL,PL, WN, LOOSE,TD |
RST37.2/1.0038 DIN17100C22.8/1.0460 A105/C21/1.0432 1.4404 1.4307 1.4401 1.4404 1.4541 1.4571/DIN17440 |
|
|
Special flanges are available according to drawings! |
|
|
Packing |
Wooden cases, sea-worthy plywood pallets or as per customers requirement. |
|
|
MOQ |
10pcs or as costumers' requirement |
|
|
Payment |
L/C or T/T |
|
|
Port |
Tianjin Port , China |
As a small private company, Cangzhou Xingye Pipe Fitting Co., Ltd was born in 1990 with only 10 employees. Through its more than 20 years ongoing improvement on product quality, production technology, inspection precision and after sales services, it has evolved into an industrial leader and renowned manufacturer for flange and fittings with more than 150 skilled workers, 20 professional technicians and 30 office staff today.
Our comprehensive product inventory is from welding neck flange, slip-on flange, threaded flange, blind flange, socket welding flange, ASME/ANSI flange, DIN flange, JIS flange, EN flange, butt weld fittings, carbon steel fittings, alloy fittings and pressure fittings.
Quality is the prime concern in Xingye. A strict quality management system is implemented to control each phase of production. With the great help of our highly technical and qualified staff, we are able to offer a superior quality range of products. The state-of-art manufacturing equipment assists us in providing products as per customers' specific requirement and exceeds customer's expectation.
We, Cangzhou Xingye Pipe Fitting Co., Ltd would like to establish business relations with the valuable customers from all over the world on the management philosophy of "quality is first and client is highest". Please contact us freely by mail, phone or fax if you need any items of our products, we will give you the 100% satisfaction!
