| Prod Model: |
CF-079 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package: |
Pallet ,Manmade Wooden Case or as Your Requirement |
| Origine: |
Qingdao |
| Certificate: |
ISO9001 SGS |
| Brand: |
Chifine |
| Service: |
OEM and ODM |
| Machining: |
CNC Turnng Milling Drilling |
| Delivery Time: |
30 Days After Receiving The Payment |
| Supply Ability: |
150 Tons Per Month |
| Material Type: |
Stainless Steel |
| Heat Treatment: |
Normalizing ,Quenching ,Anealling .Tempering |
| Casting Method: |
Thermal Gravity Casting |
| Material: |
Stainless Steel |
| Surface Preparation: |
Sand Blast |
Product Description

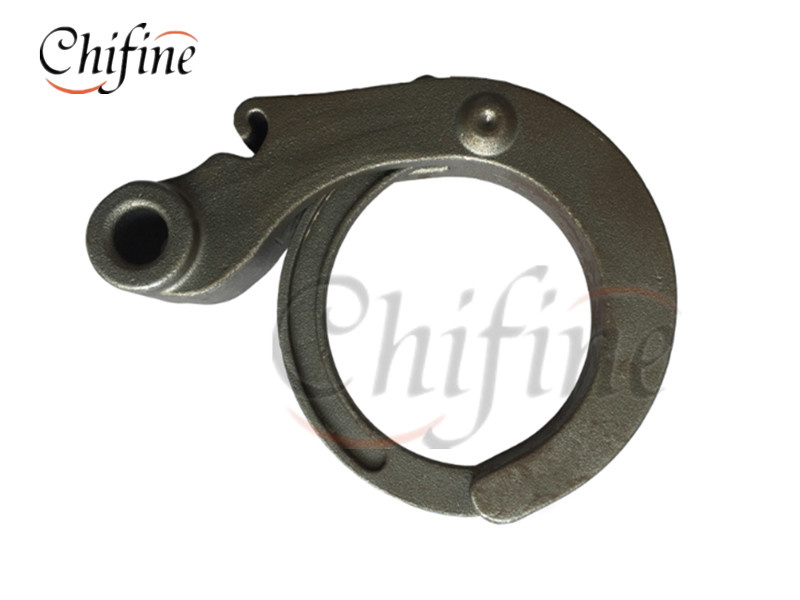

Lost wax cast product
1. Material
Carbon steel: AISI 1020, AISI 1035, AISI 1045, GrD( Q235), Gr50 ( Q 345)
Alloy Steel: AISI 1053, AISI A387Cr. 12, 20CrMo, AISI 4137, AISI 4140, AISI 4340, AISI 431, 20 CrMnMo
Stainless steel: ASTM 304, ASTM 304L, ASTM 316, ASTM 316L
2. Process: Precision casting and machining
3. Tolerance: +/-0.01mm.
4. Many years exporting experience
5. The Machining process: Casting semifinished product- Hardening and tempering-Testing-Machining-Checking-Packing.
6, Quality Control:

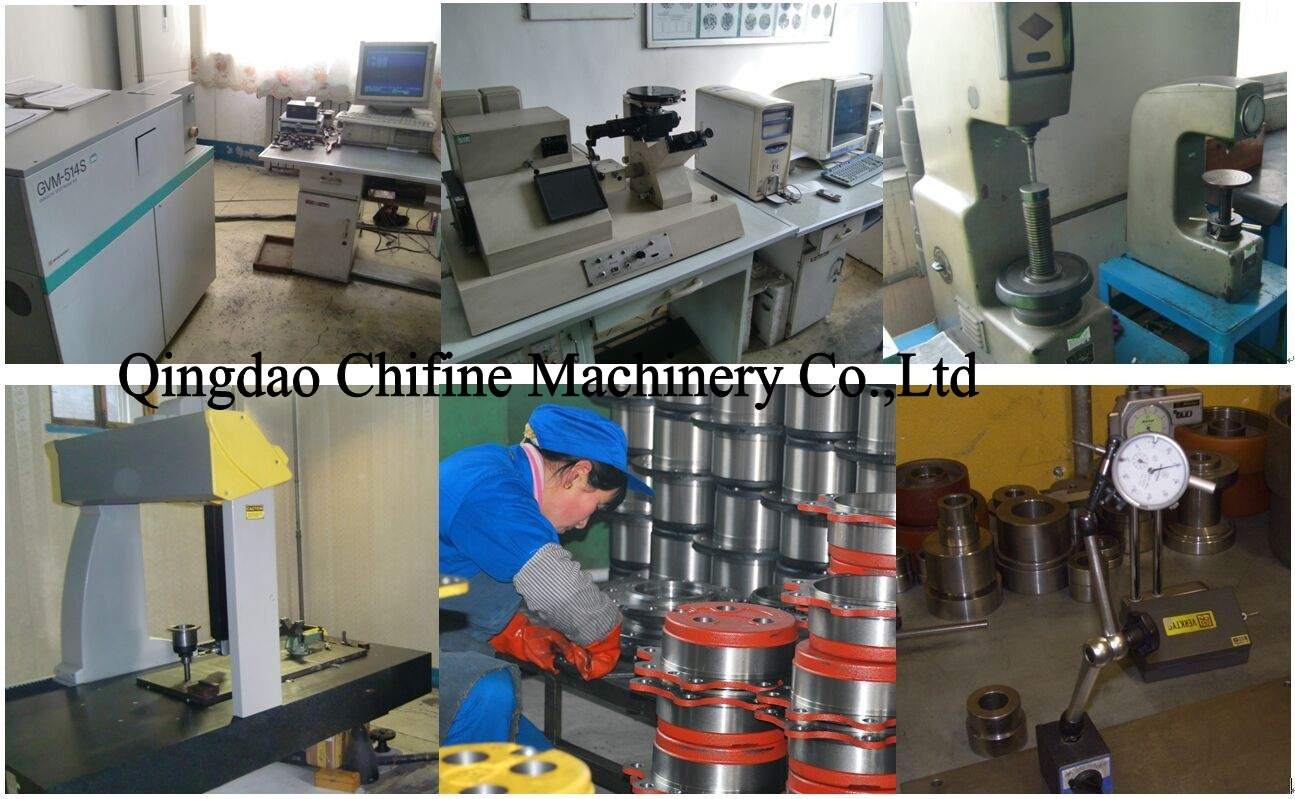

Our company have a large number of the Quality Control Engineers, and we also have a lot of high precision testing equipment. Such as: Three coordinate measuring system, spectrograph, Optical Brinell hardness tester, tensile testing machine, air-gauge, Dial bore gauges, Inside Micrometer etc.
7, Our advantage:
Advantages:
1). We have won the certificate of ISO9001: 2008.
2). We are one factory, we can produce the casting by ourselves. The material covers cast iron, carbon steel, stainless steel and forging
3). Our strong R&D and QC department can control the products to meet your strict requirement.
4). We can provide OEM and ODM service. Customized order is available.
5). 15years exporting experience. Our strong R&D and QC department can control the products to meet your strict requirement.
6). Excellent and professional service:
8, Our promise:
1). The delivery time and the package can be controled according to the customers' requirement completely.
2). We will produce the products seriously according to the drawings, and make sure all the products is suitable for the custoners.
3). We will communicate with the customers all the time about the products, we will send the pictures to the customers, so that they can know the Processing process
| PROCESS |
MATERIAL |
STANDARD |
SAND CASTING |
Green Sand |
Grey Iron, Ductile Iron, Malleable Iron, Stainless Steel, Carbon Steel, Aluminium, Brass, Bronze |
AISI
ASTM
DIN
GB
BS
JIS
NF
AAR |
Furan Resin Sand |
Cold Harden Resin Sand |
INVESTMENT CASTING |
Sodium Silicone
(Water Glass) |
Stainless Steel, Carbon Steel, Special Alloy Steel, Bronze, Brass, Aluminium |
Silica Sol |
FORGING |
Hammer Forging |
Stainless Steel, Carbon Steel, Alloy Steel, Brass, Aluminium |
Die Forging |
Roll Forging |
STAMPING MACHINING |
|
All Metal Material |
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm

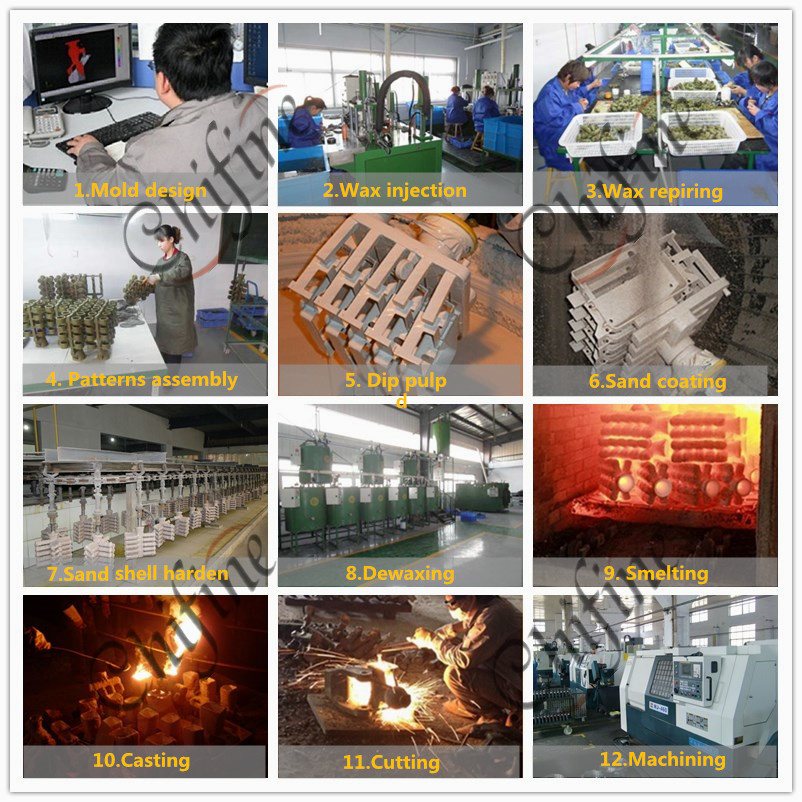

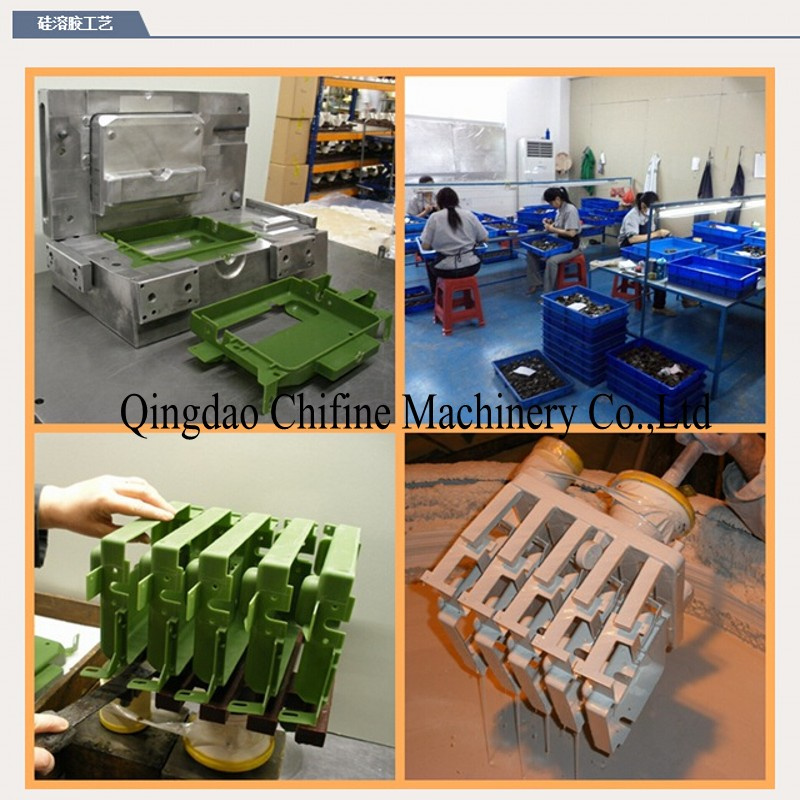

Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.
Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
