| Prod Model: |
seger-35 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Make: |
as Your Drawing or Sample |
| Test: |
Presure Test Each PCS |
| Casting Weight: |
0.5-120kg |
| Guarantee: |
One Year Against Quality Defects |
| Size: |
OEM |
| Applications: |
Lost Wax Casting |
| Material: |
Stainless Steel |
| Surface Preparation: |
Polishing |
| Application: |
Investment Casting Parts |
| Standard: |
ASTM, AISI, Bs, DIN, JIS, Nf |
Product Description
Investment casting valve parts
Note:
We manufacture metal parts in compliance with customers' designs. The products shown here are only to present scope of our manufacturing activities and are not for sales.
Δ Product name: Investment Casting Precision Casting Stainless Steel Valve Body
Δ Major material: Stainless steel 304 316 304L carbon steel, alloy steel
Δ Dimension tolerance: CT5-CT7
Δ Surface roughness: Ra1.6-3.2
Δ Max weight: 120kg
Δ Min weight: 0.002kg
Δ FOB: Qingdao China
Δ Packing: Exporting carton / wooden case or as your special requirement
Our Service
Δ Pls provide complete 2D drawings of raw castings or finished parts, which should be clearly marked:
Part material, tolerances, heat treatment, surface treatment requiremnts; Point out the machining datum,
Key dimensions tolerance & important surfaces that need to pay particular attention to.
Δ 3D drawings and samples are very necessary and helpfull for our quoting.
Δ Testing and inspecting of the project & reporting requirements.
Δ Order size and annual demand.
Δ The requirements of process, packing and delivery.
Δ FOB, CIF or EXW
Payment Terms
(1)Time of shipment: Sample finished time 7 days after confirm order.
(2)Shipment quantity 5 % more or less allowed
(3)Trade Term: Fob Qingdao
(4)Packing: Wooden box outside, carbon box inside.
(5)Terms of Payment:
If we confirm order, 100% sample cost need pay in advance.
Should be pay 40% deposit, the balance 60% should be paid against BL.
FAQ
Why choose investment casting?
1)Investment castings have high dimensional accuracy, general linear tolerance is 1%, the angle tolerance is ± 0.5° , good surface finish, up to Ra 1.6-3.2, to save materials& reduce machining cost.
2)Investment casting can produce parts or components with complex shapes, or cast several parts into one whole, to avoid combination or welding.
3)Beautiful text or LOGO images can be cast on the products to improve the image of your products.
5)Investment casting approved flexible production volume, from a small number to high-volume production, high efficiency and good reproducibility; Low-cost mold, less input in the early product development.

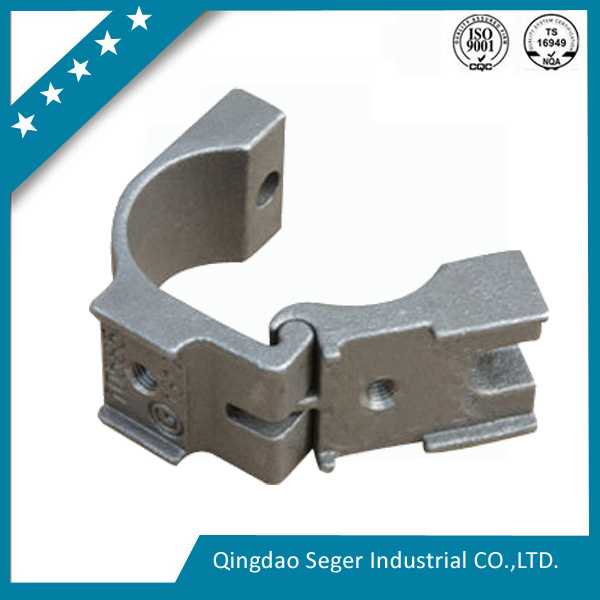

Stainless steel casting parts
|
Main Product: stainless Steel casting, Lost Wax Casting,Investment Casting,Machining Part, ,CNC Machining Parts |
|
Standard: |
ASTM, AISI, BS, DIN, JIS, NF |
|
Material : |
stainless steel(SS201,SS303,SS316,SS416,SS420) |
|
Weight Rang: |
0.01KG~100KG (Depending on the actual design) |
|
Design: |
Pro/E, Auto CAD, Solid work, CAXA UG, CAM, CAE. |
|
Process: |
Casting+Machining(if you need)+Surface treatment |
|
Procesing Method: |
Lathing,Milling,boring,pulling,drilling,CNC mechining (Futher Process if you need) |
|
Heat Treatment: |
Quenching,Normalizing,Quenching and Tempering,Chemical heat treatment |
|
Surface: |
Polishing,Plating,Painting,Anodizing,Powder Coating,Sand blasting.... |
|
Quality Control: |
100% inspection on critical dimensions or follow your special requst . |
|
Machining: |
turning , milling, drilling, grinding, threading, CNC machining, etc. |
Certificate: ISO 9001-2000 ISO/TS16949
|
Qingdao Seger Industrial Co., Ltd. is one of the leading casting and forging supplier in China. Products exported to about 25 countries on 6 continents with more than 10 years' experience.
Our technics process include sand casting, investment casting, die casting, forging and CNC machining etc. Products are widely used in the industry of auto parts, mining, construction, machinery, agricultural and so on.
Seger industrial has one professional technics team which can supply you the best service during the complete production process. Until now we have more than 300 kinds of parts with different materials as required. All products are according to the standard of GB. ASTM, AISI, DIN, JIS, BS etc.
(1)A "bespoke" service to make castings to customers specific requirements with drawings, samples
(2)Market-oriented, different grades of products geared to the needs of different customers
(3)Advance equipment, professional technology and serious inspection procedure to ensure good quality
(4)In-time delivery will always satisfy customers" needs
(5)Best after-sale service all the time for a long trade cooperation term
For more details, welcome to contact us directly. Quick reply will be made within 24 hours!
