| Prod Model: |
DY-P25 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
0.75-55kw |
| Flow: |
3-200m3/H |
| Material: |
Ss304ss316(L) |
| Motor: |
ABB, Weg, Siemens |
| Impeller Number: |
Single-Stage Pump |
| Working Pressure: |
High Pressure Pump |
| Influent Type Of Impeller: |
Single Suction Pump |
| Position Of Pump Shaft: |
Horizontal Pump |

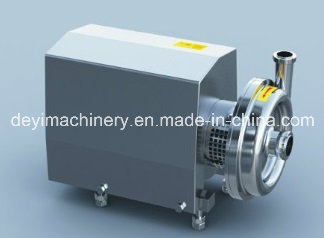

Product Description
Brand:DY-P25
Material: 304(L) 316(L)
Finish: Mirror or Matt Polish; Ra<0.8um
Flowtam Centrifugal pump is a sanitary centrifugal pump that meets the highest sanitary requirements for use in the food-processing and pharmaceutical, dairy, milk, bear industries.
Some of its uses include processes in the brewing, dairies and beverage industries in general, and with the appropriate options it can also be used in complex applications such as evaporators, concentrators, distillation towers, decanting of syrups, and purified-water loops in the pharmaceutical industry.
Design and features
Different Connection type: Welding; Thread; Clamp
Different connections standard: DIN, SMS, JIS, ISO.
Open impeller manufactured with stainless steel investment casting technology.
Sanitary mechanical seal.
Parts in contact with pumped media AISI 316L or 304
Pump support from AISI 304
Inside surface finishing Ra < 0.8 um.
Outside surface finishing Mirror polished
food grade centrifugal pump
Mechanical Seal 304 OR 316 SS
Work method: centrifugal pump in sanitary design
Product Name
Sanitary centrifugal pump
food grade centrifugal pump meets the highest sanitary requirements for use in the food-processing and pharmaceutical,dairy,milk,bear industries.
Some of its uses include processes in the brewing, dairies and beverage industries in general, and with the appropriate options Sanitary centrifugal pump can also be used in complex applications such as evaporators, concentrators, distillation towers, decanting of syrups, and purified-water loops in the pharmaceutical industry.
Design and features of food grade centrifugal pump
Different Connection type: Welding; Thread; Clamp
Different connections standard:DIN,SMS,JIS, ISO.
Open impeller manufactured with stainless steel investment casting technology.
Sanitary mechanical seal.
Parts in contact with pumped media AISI 316L or 304
Pump support from AISI 304
Inside surface finishing Ra < 0.4 um.
Outside surface finishing Mirror polished
Options
Mechanical seals in SiC/C, SiC/SiC or TgC/SiC.
Cooled or double mechanical seal.
Motors with additional protection.(movable, ABB Explosion proof).
Trolley and/ Switchboard with invertor
| Model | (t/h)
Flow | (M)
Head | (KW)
Power | (mm)
Inlet/Outlet Diameter |
Remarks |
| DY-3-15-0.75 | 3 | 15 | 0.75 | 38/32 | ABB |
| DY-3-20-1.1 | 3 | 20 | 1.1 | 38/32 | ABB |
| DY-5-24-1.5 | 5 | 24 | 1.5 | 51/38 | ABB |
| DY-5-32-2.2 | 5 | 32 | 2.2 | 51/38 | ABB |
| DY-10-24-2.2 | 10 | 24 | 2.2 | 51/38 | ABB |
| DY-10-32-3 | 10 | 32 | 3 | 51/38 | ABB |
| DY-15-24-3 | 15 | 24 | 3 | 51/51 | ABB |
| DY-20-24-4 | 20 | 24 | 4 | 51/51 | ABB |
| DY-20-35-5.5 | 20 | 35 | 5.5 | 63.5/51 | ABB |
| DY-30-24-5.5 | 30 | 24 | 5.5 | 63.5/51 | ABB |
| DY-30-35-7.5 | 30 | 35 | 7.5 | 63.5/51 | ABB |
| DY-40-24-7.5 | 40 | 24 | 7.5 | 76/63.5 | ABB |
| DY-50-24-7.5 | 50 | 24 | 7.5 | 76/63.5 | ABB |
| DY-50-35-11 | 50 | 35 | 11 | 76/63.5 | ABB |
| DY-80-30-15 | 80 | 30 | 15 | 89/76 | ABB |
| DY-80-40-18.5 | 80 | 40 | 18.5 | 102/89 | ABB |
Wenzhou DeYi Machinery is a high-tech science and technology enterprise which integrates design, development, manufacture, installation and provides complete turnkey project. Specializing in the manufacture and sale of bio-pharmaceutical, food, dairy, beer and beverage engineering equipments and various sorts of pressure vessels and non-standard equipment to meet the needs of users, such as stainless steel tanks, Chinese medicine extractors, concentration and evaporation equipment, alcohol recovery equipment, online CIP cleaning equipment, stainless steel pipe, sheet, valves fitting and so on. We always pursue the goal of "excellence and innovation". We research and develop new processes and designs so as to comply with cGMP and FDA requirements.
"Quality first and customer first" is our tenet. Our goal is simply to furnish high quality products at competitive prices in the global market and delivering to meet the challenges required in the today's business environment. We sincerely welcome friends from around the world to cooperate with us to have a brilliant future.
Choose DeYi, will get better price, good service and profit!
