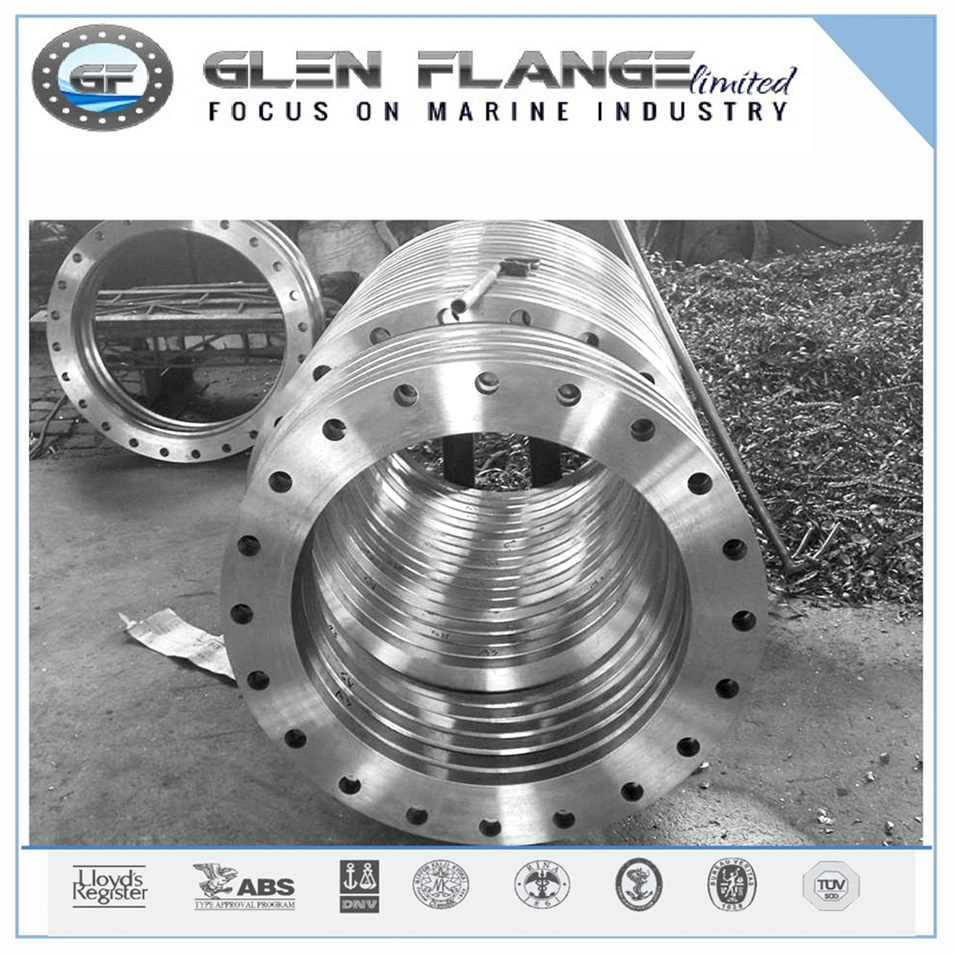

Stainless Steel Orifice Flange
| Price: |
US $ 900/Ton |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
2/Ton |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
GLF-SS-OF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standard: |
Uni as |
| Type: |
Welding Flange |
| Material: |
Stainless Steel |
| Manufacturing Way: |
Forging |
Product Description
Professional supplier concentrate on kinds of forging flange, material covered stainless steel forging flange, carbon steel flange, alloy flange, produced flange is according to ANSI B16.5, EN1092-1, JIS, and new design catch up the trend of world. mainly product capacity 400tons monthly. The ability to product non-standard flange.| Product Description |
| Welding neck flange |
| Material: | Carbon steel | | A105; |
| Stainless steel | | F301;F304;F304L;F310S;F316;F31L;F316Ti;F317;F321;F347 | | | | |
| Alloy steel | | |
| Standard: | ASME/ANSI B 16.5 |
| ANSI 16.47 Series A&B |
| AS2129 |
| DIN2527~DIN2637 |
| EN1092-1 |
| GB/T9113~GB/T9123-2000 |
| Dimension : | DN15-DN5000; 1/2"-197" |
| Sealing face: | F.F |
| R.F |
| R.T.J |
| Pressure: | CLASS150 ,CLASS300, CLASS600, CLASS900,CLASS1500, CLASS2500, |
| PN16, PN25,PN40, PN64,PN100, PN160, PN200, PN260 |
| Filed of application: | Building service |
| Oil & gas |
| shipyard |
| maritime projects |
| Certification: | ISO:9001:2008 |
| Manufacturing procedure: | ingot→cutting→PMI test→heating→forging→heat treatment→rough machining
→2nd heat treatment→finish machining→inspection→marking→packing |
| QC & inspection: | Dimension test |
| UT |
| Impact test |
| Penetration test, tensile test |
| Packaging Detail: | Wooden Cases, Wooden Pallets |
| Post-sale service: | online instant order tracking |
GLEN FLANGE is specialized in flanges and forgings since year 2006. Our products are only for shipbuilding, offshore installations and other marine applications. For example fire water systems, sprinkler systems, cooling systems, ballast systems. So all workshops of GLEN are certified by LR, ABS, BV, DNV, GL, NK, KR and CCS to guarantee quality as marine piping system level.
Flanges are our only manufactured products, so we can be better. We all know the quality of the product begins by making the correct choice of the finest raw materials. For this reason, at GLEN FLANGE we buy the highest quality steels in carbon, alloy, stainless and duplex steel. In order to ensure offering our clients a rapid delivery time. We have an extensive range of raw materials stock, both as continuous steel and stainless round bars (with diameters of between 30 and 500 mm. )
We hope this brief introduction can help you to get outline understanding to us, for more detailed information, please do not hesitate to contact us.
