| Prod Model: |
SSPF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Processing: |
CNC Machining |
| Size: |
Min. 0.5mm |
| Tolerance: |
DIN 2768-F |
| Roughness: |
Ra 0.4 |
| Finish: |
Plating / Black Finish / Painting |
| Equipment: |
Precision CNC Lathe |
| Free Samples: |
Yes |
| OEM & ODM: |
Yes |
| Warranty: |
1 Year |
Product Description
Product Description

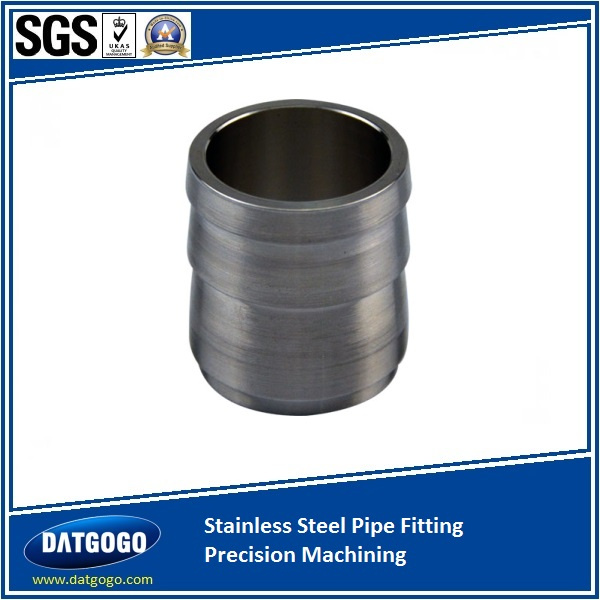

- Stainless Steel Pipe Fitting with Precision Machining
Mold Number: SSPFMaterial: Stainless steelSize: Min. 0.5mmTolerance: DIN 2768-MRoughness: Ra0.8Finish: anodizing / powder coatingEquipment: 4 axes CNC machining centerFree sample: yesOEM & ODM: yesWarranty: 1 yearQuality assurance: ISO9001-2008 Company & Equipment

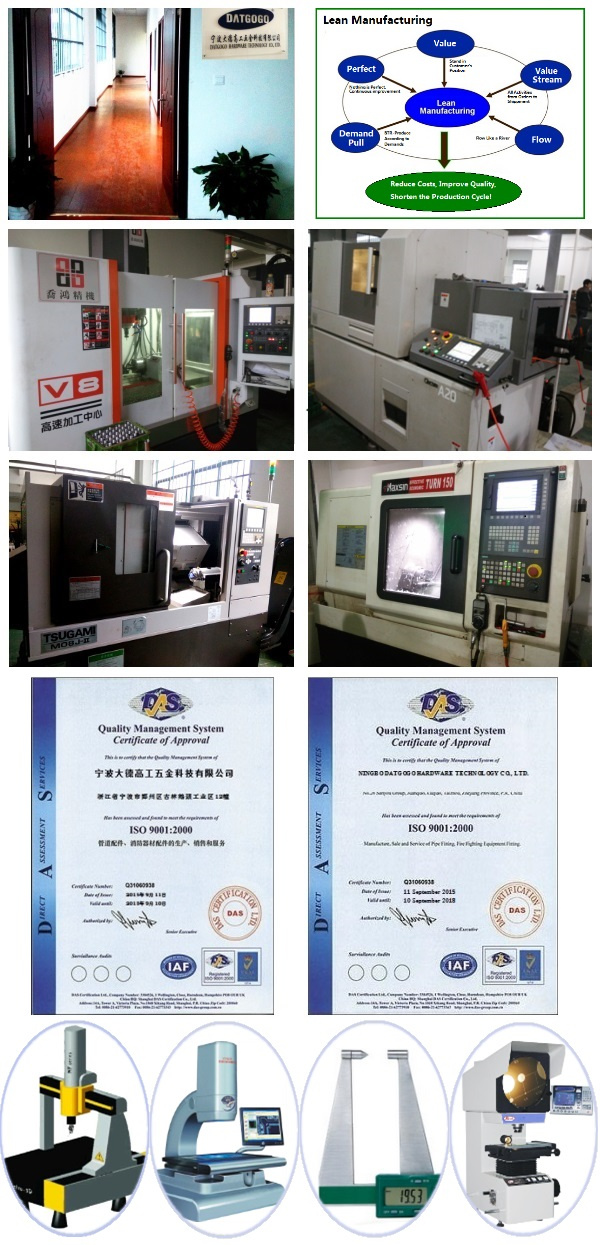

Datgogo offers a complete range of services from design and integrated manufacturing operations to strict quality control throughout the entire manufacturing process. All products are controlled in accordance with the strict requirements of DIN, ASTM, JIS, BS and GB. We work very closely with our customers to design dies that will consistently produce quality parts. Our products are designed to comply with customers specifications and undergo strict quality control testing. Our products are typically used in the fields of construction, advertisement, industrial machinery, vehicles, and agriculture. Over 95% of our products are exported to North America, Scandinavia, UK, Germany, Netherlands, France, USA and other western countries.We have more than 50sets of machines including:- 4 axes vertical and 4 axes horizontal machining center
- CNC Lathe (TSUGAMI-M08J, Japan FANUC system)
- Automatic precision machine (CITIZEN-A20 & TSUGAMI-BO205)
- Laser cutting machine- General equipment such as NC lathe machine, milling machine, horizontal lathe,drilling machine, shaping machine, horizontal boring machine, circular grinding, centreless grinding, surface grinding, digital wire cutting, threading machine, sawing machine and so on. Please drop us an email or give us a call and let us know what you may be interested in. At your convenience, we'll set up an in-person consultation with one of our sales representatives to review our offerings and how we may be of service to you. Quality AssuranceAll products which are from Datgogo will be controlled in accordance with the strict requirements of the quality system of ISO9001-2000. There are 3 inspectors who are in charge of the production quality in the processes of the manufacture which are included IQC PQC & OQC. All products must be produced on the basis of strict compliance with the process specifications, which specifies everything in detail for the production procedures, inspection methods and inspection frequency, it effectively ensures that there is little error in the production processes. At the same time, the company has always implemented the management of 6S and lean production system, they are greatly keeping a orderly production site for us, which help us to distinguish the defect parts easily without mixing.Table 1 - Permissible deviations for linear dimensions except for broken edges(DIN2768-1)| Sizes range(mm) | Permissible deviations for basic size range(mm) |
| f | m | c | v |
| fine | medium | coarse | very coarse |
| 0.5-3 | +/- 0.05 | +/- 0.10 | +/- 0.15 | / |
| 3-6 | +/- 0.05 | +/- 0.10 | +/- 0.20 | +/- 0.50 |
| 6-30 | +/- 0.10 | +/- 0.20 | +/- 0.50 | +/- 1.00 |
| 30-120 | +/- 0.15 | +/- 0.30 | +/- 0.80 | +/- 1.50 |
| 120-400 | +/- 0.20 | +/- 0.50 | +/- 1.20 | +/- 2.50 |
| 400-1000 | +/- 0.30 | +/- 0.80 | +/- 2.00 | +/- 4.00 |
| 1000-2000 | +/- 0.50 | +/- 1.20 | +/- 3.00 | +/- 6.00 |
| 2000-4000 | / | +/- 2.00 | +/- 4.00 | +/- 8.00 |
for nominal sizes below 0.5mm,the deiations shall be indicated adjacent to be relevant nominal size.Packing & Shipping
We have more than 10 years experience to supply the products to oversea customers, there are killed team who is in charge of the exporting operation work. Goods will be packed and shipped exactly according to your requirements. They have been highly praised by our customers without any complains. Our ServiceWe have a professional team with more than 10 mechanical engineers, most of which have already worked in manufacturing factories over 10 years. We have rich experience in technology researching, new production developing, quality assurance, process improvement, tooling design, fixture design, gauge design and 5S & lean manufacturing management. We are proficient in precision machining, mold, casting, forging, injection and stamping etc. To the emphasis, we offer sampling service as well as rapid prototyping including the above field products for customer's technology researching & developing department, which can greatly reduce the new development cost and risk for customer's new project before batch manufacturing. On the other hand, we are willing to help you to do the assisted inspection for your production purchase and assembly service for the item. FAQ- Are you a manufacturer?Yes, we are a mechanical hardware manufacturer from 2007.- How many engineers are there in your R & D department?There are more than 10 experienced engineers in my company, in which there are 3 of them are working in R & D department.- How many days will a new development item need?Usually,we will prepare the molds and counter samples for a general part in 45-60 days.- What is the lead time for the general production order?About 1-3 months according to the quantities.- What's your strength?We are specialized in precision machining and iron cast. Our products have been widely used in military and shipbuilding industry.- Where are your customers from?Most of our customers are from North America and Europe.- Which are the near ports?We are located in Ningbo, there are 40minutes driving from my company to Ningbo port and 2.5 hours to Shaighai port.- Will you ask for sample charge?For the general samples are free, for the big value ones, we will ask for sample fee in advance and refund upon total production order increasing to USD5,000.- What's the payment term?T/T, Western Union, PayPal, L/C, Escrow. It would be our pleasure to service you with satisfaction. We are sincerely hope to be your partners and friends here in DATGOGO CHINA.
Hot line: +86 574 8281 7582
Datgogo is a professional hardware enterprise which was founded in 2007 by Chinese and international partners, with several specialized subsidiary factories providing steel, iron, plastic, aluminum, zinc and brass die-casting as well as machining, stamping, forging, injection and tooling realization. The company is located in eastern China in the international sea port city of Ningbo.
Datgogo is a limited liability trade and manufacturing corporation dealing primarily with mechanical hardware products. All products are controlled in accordance with the strict requirements of DIN, ASTM, JIS, BS and GB. We work very closely with our customers to design dies that will consistently produce quality parts.
Our products are designed to comply with customers specifications and undergo strict quality control testing. Our products are typically used in the fields of construction, advertisement, industrial machinery, vehicles, and agriculture. Over 95% of our products are exported to North America, Scandinavia, UK, Germany, Netherlands, France, USA, Australia and other western countries.
Datgogo also offers a complete range of services from design and integrated manufacturing operations to strict quality control throughout the entire manufacturing process. We have established a comprehensive quality control system that keeps all products in accordance with the regulations of ISO9001: 2000. Our quality control is implemented in every step of the production processes.
With the active reaction, we believe that the high quality, excellent service and reasonable quotation will serve your company well in all future business endeavors.
