| Prod Model: |
flange |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Materials: |
304, 304L, 316, 316L, Carbon Steel or Other |
| Size: |
Dn15 (1/2") to Dn5000 (200") |
| Standards: |
ANSI,Bs,DIN, En1092-1, JIS,Ks, GOST,ISO Other |
| Standard: |
Bs En1092-1 |
| Type: |
Welding Flange |
| Material: |
Stainless Steel |
| Manufacturing Way: |
Forging |
Product Description

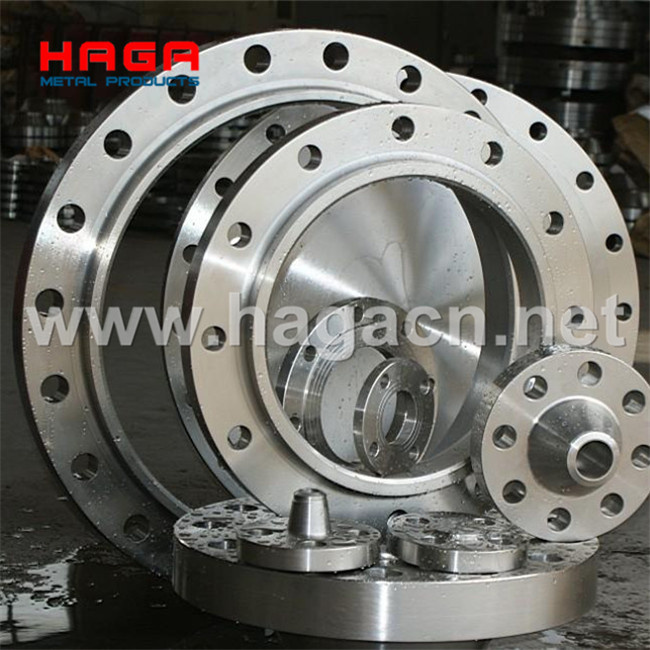

Flange
1. Application:
For seal or connect of pipe/tub-e lines
2. Material:
304, 304L, 316, 316L, carbon steel or other material on request
3. Standard:
ANSI, BS, DIN, EN1092-1, JIS, KS, GOST, ISO other available
4. Size:
DN15 (1/2") to DN5000 (200")
5. Type:
Threaded Flanges, Socket Welding Flanges, Blind Flanges, Other Flanges
Types' Specification
Welding neck
1, Preferred for high-pressure, subzero or elevated temperature
2, Hub is tapered and bored to match pipe's inside diameter so flow is not restricted, preventing turbulence and reducing erosion
3, Easily radiographed and provides excellent stress distribution
Slip-on
1, Not normally used in high-stress applications due to low hub and weld attachment
2, Silps over outside of pipe
3, Inside of flange welded at hub and end of pipe
Lap joint
1, Used where bolt alignment or access for cleaning is required
2, Similar to slip-on flange when used with lap joint stub end
3, Radius at intersection of flange face and bore to match lap joint stub end
Threaded
1, Used where welding would would be hazardous
2, Designed for low-pressure and non-cyclic applications
3, Bore is threaded to match pipe thread
4, Tapered to seal pipe and flanges
Socket welding
1, For small-diameter chemical processes, hydraulic and stream distribution lines
2, Similar to slip-on flange
3, Counter bore matches pipe bore, allowing unrestricted flow
4, Counter bore from hub side fits pipe's outer diameter - can insert pipe in socket with fillet weld at hub
Blind
1, Used to close ends of piping
2, Has no bore
3, Permits access to sealed lines
Other flanges
Orifice, Expander, Reducing, Lightweight, Studding Outlets, Long Weld Necks, Metric, Navy Drawings, Customer Drawings
Any Requests you can contact us for catalogues. Thanks.
| Ningbo HAGA Metal Products Co,. Ltd |
| Full Name | Flanges |
| Material | Stainless Steel 304, 304L, 316, 316L, Carbon Steel A105,Q235 |
| Standard: | ANSI,BS,DIN,EN1092-1, JIS,KS,GOST,ISO other available |
| ANSI Flanges |
|
| Dimension: | ANSI B16.5, B14.47, B16.36, B16.48 |
| Material Spec.: | ASTM A182, A351, DIN, ASTM A105, A216 WCB |
| Material Grades: | F305, F304L, F316, F316L, CF8, CF8M, CF3M |
| DIN1.4301, DIN1.4306, DIN1.4401, DIN1.4404 |
| DIN1.4308, DIN1.4408, DIN1.4306, DIN1.4409 |
| DIN1.0402, DIN1.0460, DIN1.0619 |
| Class: | 150, 300, 400, 600, 900, 1500, 2500 |
| Flange Type: | Weld Neck, Threaded, Slip-on, Lap Joint, Socket Weld, Blind |
| BS Flanges |
|
| Dimension: | BS4504 |
| PN: | 2.4, 6, 10, 16, 25, 40 |
| Flange Type: | Weld Neck, Threaded, Slip-on, Lap Joint, Socket Weld, Blind |
| DIN Flanges |
|
| Description: | 1) Blind Flange |
| DIN2527, Rate Pressure: 6 - 100 bar |
| 2) Flat Flange for welding (Slip on) |
| 6Bar DIN2573, 10Bar DIN2576, 16Bar DIN2502, 25/40Bar DIN2503 |
| 3) Welding Neck Flange |
| 1/2.5Bar DIN2630, 6Bar DIN2631, 10Bar DIN2632, 16Bar DIN2633, |
| 25Bar DIN2634, 40Bar DIN2635, 64Bar DIN2636, 100Bar DIN2637, |
| 160Bar DIN2638, 250Bar DIN2628, 320Bar DIN2629, 400Bar DIN2627 |
| 4)Lapped (lapped joint) flange, Plain collar |
| 6Bar DIN2641, 10Bar DIN2642, |
| 5)Loose flange and ring for welding (slip-on flange and plain collar) |
| 6Bar DIN2652, 10Bar DIN2653, 25Bar DIN2655, 40Bar DIN2656, |
| 6)Loose flange and ring with neck for welding |
| 10Bar DIN2673 |
| 7)Oval plain threaded flange |
| 6Bar DIN2558 |
| 8)Oval plain, with neck threaded |
| 10/16 Bar DIN2561 |
| 9)Thread flange with neck |
| 6Bar DIN2565, 10/16 DIN2566, 25/40Bar DIN2567, |
| 64Bar DIN2568, 100Bar DIN2569 |
| 10)Long neck welding flange |
| 10/25Bar DIN28115 |
| 11)Hubbed slip-on flange for welding |
| 10Bar DIN86029, 16Bar DIN86030 |
| EN1092-1 Flanges |
|
| Description: | 1) Plate (Slip on) flange for welding |
| 6/10/16/25/40/63/100 Bar |
| 2)Loose plate flanges with weld-on plate collar |
| 6/10/16/25/40/63 Bar |
| 3)Loose plate flanges with weld-neck collar |
| 6/10/16/25/40/63 Bar |
| 4) Blamk (Blind) Flange |
| 6/10/16/25/40/63/100 Bar |
| 5) Welding Neck Flange |
| 6/10/16/25/40/63/100 Bar |
| 6)Hubbed slip-on flange for welding |
| 6/10/16/25/40/63/100 Bar |
| 7)Hubbed threaded flanges |
| 16/40/63/100 Bar |
| 8)Integral Flanges |
| 6/10/16/25/40/63/100 Bar |
| 9)Weld-on plate collars |
| 6/10/16/25/40 Bar |
| 10)Lapped pipe ends |
| 6/10/16/25/40 Bar |
| 11)Weld-Neck Collars |
| 6/10/16/25/40 Bar |
| JIS Flanges |
|
| Description: | 2/5/10/16/20/30/40/63 kg/cm2 |
Ningbo HAGA Industries Co., Ltd /Ningbo HAGA Metal Products Co., Ltd is specialized in pipeline industry. Our products are widely used in the connecting of industrial hose and pipe from low to high pressure. We can develop and produce products according to international standards. We also supply metal parts which are made by investment casting, gravity casting, die casting, sand casting, forging, stamping and machining.
With strong technical support and advanced production equipments, we accept ODM and OEM requests. Wellcome to send samples or drawing for checking price and quality. There are profestional advanced production lines and test centers for products which can be made from stainless steel, aluminum, brass, steel and even plastic material according to different standards.
After long term cooperation, we are providing high quality products and service for customers from all over the world. We hope to support you to be stronger and do better in your market.
