| Prod Model: |
JOC 2015 serial |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
0.1~50kg |
| Casting Method: |
Vacuum Aspirated Casting |
| Material: |
Stainless Steel |
| Surface Preparation: |
Polishing |
Product Description
1. Process: Precision casting silica sol investment casting lost wax casting
2. Lost Wax Casting (Investment Casting) Material: 5140(40Cr), SAE1045(45# Steel), Staniless steel SUS404, Carbon Steel or other materials as you request.
3. Material Standard: ISO, GB, ASTM, AISI, DIN, BS, JIS.
4. Product weight: From 0.1~50kg;
5. Machining equipment: CNC, Lathe machine, Milling machine, Drilling machine, and so on;
6. Test equipment: Optical Spectrum Analyzer, CMM, Hardness test equipment, Tensile test machine;
7. Surface treatment: Blacking, Polishing, Anodize, Chrome plating, Zinc plating, Nickel plating, Tinting, Power coating, E-coating etc
8. Heat Treatment: Annealing, carbonization, tempering, normalization, solution

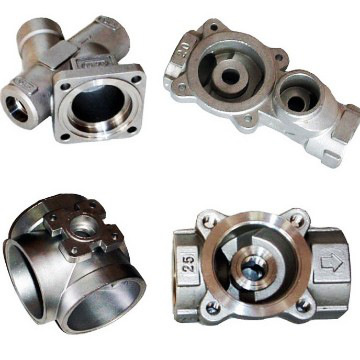

Stainless steel casting is our most important products. Taiyuan SIMIS Precision Casting Co.,Ltd. has the enough experience to produce stainless steel castings.
There are three professional branch plants to produce stainless steel casting.
* water glass casting: low temperature lost-wax casting process, with capacity to cast products range from 0.1kg to 100kgs. The usually used materials are carbon steel, alloy steel, and stainless steel, high manganese steel, special alloy steel, etc.
* silica sol casting: medium temperature lost-wax casting process, with capacity to cast products range from 0.01kgs to 50kgs. The usually used materials are carbon steel, alloy steel, and stainless steel, high manganese steel, special alloy steel, etc.
* Sand Casting: weight of products range from 0.5kgs to 10tons. The usually used materials are ductile iron, gray iron, high chrome iron, many kinds of steel, wear resistant material, etc.
Material: austenitic stainless steel ( CF8, CF8M, CF3 and CF3M);
Martensitic stainless steel ( 1Cr13, 2Cr13);
precipitation-hardening stainless steel( 17-4PH).
The factory with vacuum furnace to do superalloy castings, such as turbine, turbine blade, supercharger, Ni-base alloy casting, Cr-base alloy casting.
Also we have enough and advanced CNC machining equipments, such as CNC vertical machining center, CNC turning machines, CNC milling machines. It can produce many types of stainless steel parts from 0.005kg to 2000kg.
.content_format table{border:1px solid #dedede; border-collapse:collapse;}
.content_format td{
padding:3px;
border: 1px solid #dcdcdc;
}
.content_format {
line-height: 24px;
word-wrap : break-word ;
}
.content_format p{
margin-bottom: 10px;
margin-top: 2px;
padding: 2px;
Specification | Cast Grade | Wrought Equivalent |
ASTM A-743, MIL-S-81591 | CF16F, IC 303 | 303 |
ASTM A-351, A-743, A744 | CF20 | 302 |
ASTM A-351, A-743, A-744 ASME SA-351 | CF3M | 316L |
ASTM A-351, A-743, A-744 ASME SA-351 | CF8 | 304 |
ASTM A-351, A-743, A-744 ASME SA-351 | CF8M | 316 |
DUPLEX STAINLESS STEELS
Specification | Cast Grade | Wrought Equivalent |
ASTM A-351, A-743, A-744, A-890-1A | CD4MCu | 25-5PH |
ASTM A-890-1B | CD4MCuN | 25-5PH |
MARTENSITIC STAINLESS STEELS
Specification | Cast Grade | Wrought Equivalent |
ASTM A-217, A?743, A?487 | CA15 | 410 |
ASTM A-743 MOD | CA15F | 416 |
ASTM A-743 | CA40 | 420 |
IC 440C | 440C | 440C |
IC 440F | 440F | 440F |
LOW ALLOY STEELS
Specificatin | Cast Grade | Wrought Equivalent |
AISI 1018 | 1018 | 1018 |
AISI 1060 | 1060 | 1060 |
ASTM A-732 | 1A | 1020 |
ASTM A-732 | 4Q | 1050 |
ASTM A-732 | 7Q | 4130 |
ASTM A-732 | 8Q | 4140 |
ASTM A-216, ASME SA-216 | WCB | 1025 |
PRECIPITATION HARDENED STAINLESS STEELS
Specification | Cast Grade | Wrought Equivalent |
AMS 5343C, ASTM A-747, MIL-S-81591 | CB7Cu-1, 5343C, IC 17-4 | 17-4PH |
JOC Machinery Co., Ltd. Was founded in year 2000, specializing in foreign trade of machinery parts and complete sets of equipment. The ranges of products and services covering construction and building machinery, petroleum machinery, mining equipment, power cable production lines, electric power fittings, vehicle and motorcycle parts, industrial vales and etc. Have been exported to more than forty countries and regions of the world.
To better serve customers, stable supply and the quality of the products, we have successively set up three production bases that all certificated with ISO9001 or TS16949: In 2001, the Jiangyin factory was founded, whose main operations are investment casting and CNC machining; In 2005, the Yangzhou factory was founded, whose main operations are steel forging, stamping, fabrication, gravity casting of aluminum and galvanizing finish; In 2011, the Nanjing factory was founded, whose main operations are lost foam iron casting. Furthermore, since 2005 our Jiangyin factory Uni-metals also has established a joint-venture foundry with a British company for automobile turbo charge wheel of vacuum casting, and soon afterwards established 2 branch plants in India and Mexico.
We are committed to team the talents, integrate industry resources, and strive to further develop into a great enterprise of machinery parts and equipment. We look forward to working with you to create a better future.
