| Prod Model: |
JETSS-60/80/100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pump Body: |
Stainless Steel |
| Impeller: |
Stainless Steel/Brass/Techno-Polymer(P.P.O) |
| Mechanical Seal: |
Carbon/Ceramic/Stainless Steel |
| Motor Housing: |
Aluminum |
| Shaft: |
Stainless Steel |
| Diffuser: |
Techno-Polymer(P.P.O) |
| Certification: |
CE ISO9001:2008 |
| Colour: |
as Your Request |
| Package: |
Export-Stand Cartoon |
| Material: |
Stainless Steel |
| Structure: |
Single-stage Pump |
| Power: |
Electric |
| Application: |
Clarified Water Pump |
| Theory: |
Jet Pump |
| Type: |
Water Pump |
Product Description

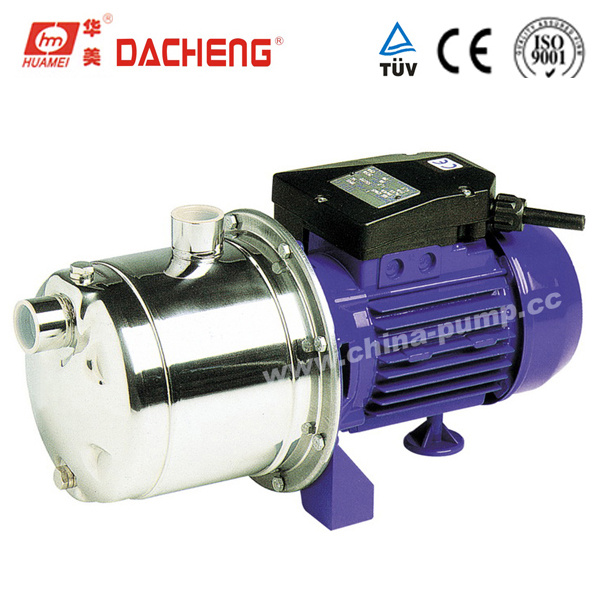

JETSS Series Self-priming Jet Pumps
Consist of a single impeller,centrifugal pump and a jet pipe with a nozzle.
Stainless-steel pump body and P.P.O diffuser
Extremely high efficiency and excellent suction ability.
Suitable for water supplying in domestc installations,small-scale agriculture,home drinking water and garden irrigation.
FEATURES
1. Models: JETSS-60-80-100
2. Stator: 100% pure wire coil( copper or aluminum as you require)
3. Rotor: Enough sillicone steel sheet with high durability
4. Shaft: Rust resistance with 45# steel or stainles steel
5. Compact size and Simple operation
6. Heavy duty continuous work.
7. High-efficient and Low noise
OUR ADVANTAGE
1. Matured channels for purchasing high quality raw material
2. Advanced equipments to manufacture and process the pump parts
3. Rigorious check for pump castings, stators before any piece of product leave the factory
4. Multiple and Perfect assembling lines
5. Export-standard packing skill
CONSTRUCT
Pump
Pump body: Stainless Steel
Impeller: Stainless Steel
Mechanical seal: Carbon/ceramic/Stainless Steel
Motor
Single Phase
Motor Housing: Aluminum (closed, externally ventilated)
Shaft: Carbon Steel/ Stainless steel Thermal protector (if required)
Insulation class: B and F
Protection class: IP44 or IP54
Power: 220-240V 50Hz( single phase 230V, 240V, 127V, 110, 115V/60Hz are available)
OPERATING CONDITION
Liquid temperature up to 60
Ambient temper up to 40
Total suction lift to 9m
Continuous duty
TECHNICAL DATA(220-240V/50Hz)
Model | Single-phase Motor | GW | PACKING QTY |
| Output Power |
| KW | HP | KG | 20'CONT |
| JETSS-60 | 0.50 | 0.50 | 9.5 | 1400pcs |
| JETSS-80 | 0.85 | 0.85 | 10.5 | 1400pcs |
| JETSS-100 | 1.00 | 1.00 | 11.5 | 1400pcs |
