| Prod Model: |
flanges |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weld Neck Flange,Wnrf Flange,Welding Nec: |
Weld Neck Flange, Wnrf Flange, Welding Nec |
| Material: |
Stainless Steel |
| Type: |
Welding Flange |
| Standard: |
BSW |
| Manufacturing Way: |
Forging |
Product Description
Detailed Product Description

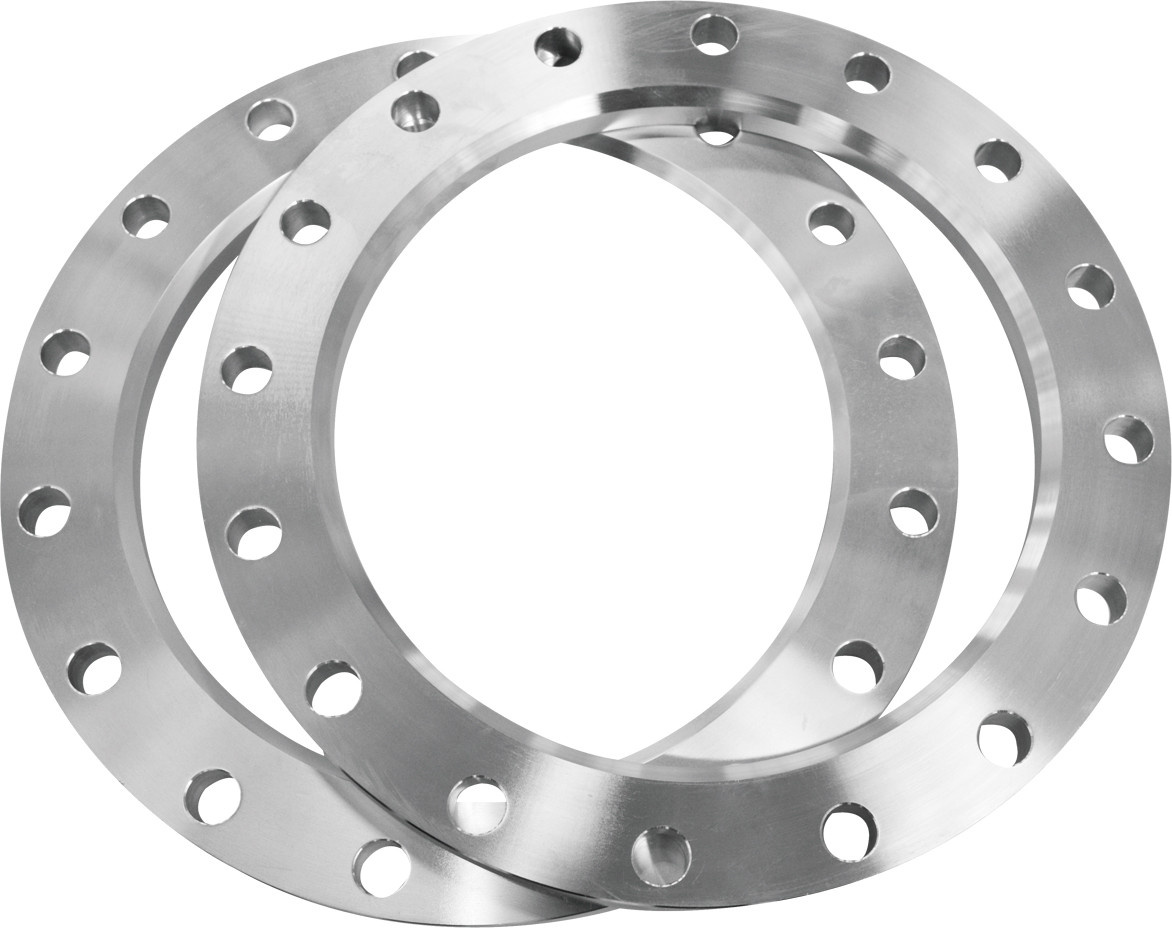

304 / 304L / 316 / 316L Stainless Steel Ring Flange For High Pressure Pipe Line
Specifications
1. Wide materials range
2. Good quality, low price
3. Small quantity is also OK
4. Customers' designs welcomed
5. GLOBAL GOLDEN Flange Manufacturer/Purchase agent
Material | A105,1.4301,1.4307,1.4401,1.4404,1.4541,1.4571,F304, 304L, F316, F316L, F321, 316Ti, 317L, 347, F5, F9, F11, F22, LF2, SUS304,SUS304L,SUS316,SUS316L and so on. |
| Size | from 1/2"-84" |
| Standard | ANSI, DIN, JIS, BS, SH, BS4504, EN1092-1, BS3293 and other standards. |
| type | WN,SO,BL,SW,LJ,TH, |
| packing | plywood case, pallet or according to customers' requirements |
| certificate | TUV&ABS, ISO9001:2000, Pressure Equipment Directive PED 97/23/EC, and BV and AD2000-Merkblatt WO |
| Sealing surface |
FF ,RF, LJ, FM ,R.T.J and so on |
Pressure ratings: class150 300 400 600 900 1500 and 2500, PN6 10 16 25 40 64 and 160, DIN
2572, 2576, 2502, 2631-2635, 2642, 2573, 2566, 5K-40K and so on.
Sample: sample for free, but you should pay for the express fee for the samples.
Delivery date: Within 30-40days after receipt the 30% payment in advance.
Terms of payment: L/C, T/T
C&N Industrial group limited is a leading manufacturer of steel pipef itting, flange products in China With 10 years in pipeline fields both manufacturing and trading. We have been supplying high quality piping material to our customer all over the world.
Our production scope:
Butt weld Fittings:
Standard: ASME B16.9 16.28/MSS SP-43/DIN 2605/JIS B2311/ 2312
Elbows(45Deg, 90Deg, 180Deg), Tee(Equal&Reducing), Cross, Reducer, Cap, olet, etc
Forged fittings: THREADED/SOCKET WELD
ASME B16.11, BS3799, JIS B2316, MSS-SP-79, MSS-SP-83
ELBOW, TEE, CROSS, UNION, COUPLING, CAP, BOSS, BUSHING, OUTLET, INSERT
Flanges: ASME/ANSI/API JIS, DIN, EN/BS
Welding Neck, Slip on, Threaded, Socket Welding, Blind, Orifice,
We are also offering our customer a total soluation for the whole piping material packages
Which includes, stainless steel pipes, carbon steel pipes, valve, gasket, bolts etc.
For further information about our company and products, please visit our website, and please do not hesitste to drop us a mail for any inquiry.
