| Prod Model: |
YH-ZH001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Dn20-Dn100 |
| Material: |
Stainless Steel |
| Structure: |
Swing |
| Function: |
Nrvg Silence |
| Application: |
Food, Beer, Beverage, Milk, Pharmacy |
| Connection Form: |
Weld, Thread, Clamp, Flange |
| Standard: |
DIN 3A SMS ISO |

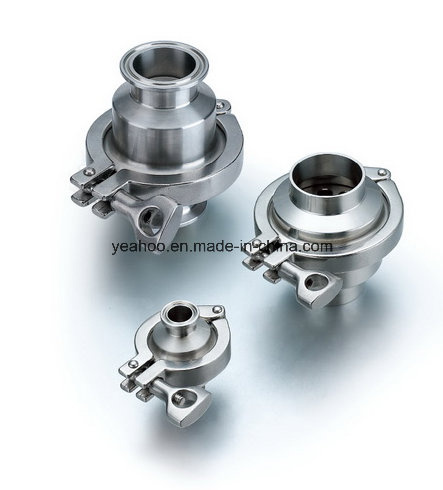

Product Description
Applicationssanitary check valve is used in stainless steel pipe systems to prevent backward flow of fluids.
Operating PrincipleWhen the pressure of lower valve stem exceeds that of upper valve stem and spring force, ZH4 sanitary check valve is open. When the pressure of upper valve stem equals that of lower valve stem, ZH4 sanitary check valve is closed. Greater reverse pressure acting on the valve stem causes the valve to close.
ZH4 sanitary check valve has two configurations.
ZH4-1 sanitary check valve adopts clamp connection method. It is affordable and widely used in food industry.
ZH4-2 sanitary check valve consists of a thickened valve body and two flanges, which is easy to install and remove.
Technical Data
Metal material | Product wetted | 304L/316L (DIN-1.4307/1.4404) forged
304L/316L(1.4307/1.4404) Forged |
Non-product wetted | 304(1.4301) |
We can provide EN 10204 3.1B certificate. |
Seal material | Standard | EPDM |
Options | FPM ,NBR/PTFE,Silicone |
All seal materials comply with FDA 177.2600. |
Temperature | Continuous working temperature | -20~+135ºC(EPDM) |
Sterilization temperature | 150ºC(max 20min) |
Pressure | Opening pressure | ≈0.08bar |
| 10bar |
Surface treatment | Internal surface | Ra≤0.8μm |
External surface | Ra≤1.6μm |
Connection | Connection standards | Welding end: DIN 11850 series 2 |
Welding end: Inch pipe diameter standard |
Connection methods: welding, thread, clamp, flange |

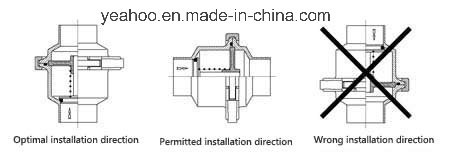

Correct Installation Method

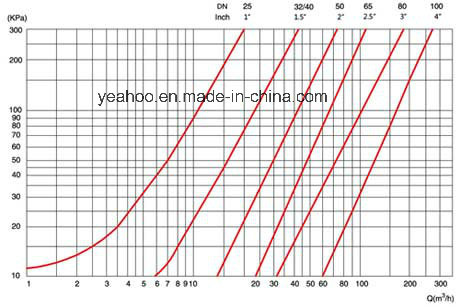

Pressure Drop/Capacity Comparison Diagram
