Stainless Steel Shaft High Precision Turned Parts Grinding Surface

Stainless Steel Shaft High Precision Turned Parts Grinding Surface
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 2000/Piece
Pay Type: T/T
Prod Model: shaft-032
Load: Central Spindle
Stiffness & Flexibility: Stiffness / Rigid Axle
Axis Shape: Crankshaft
Shaft Shape: Real Axis

Product Description

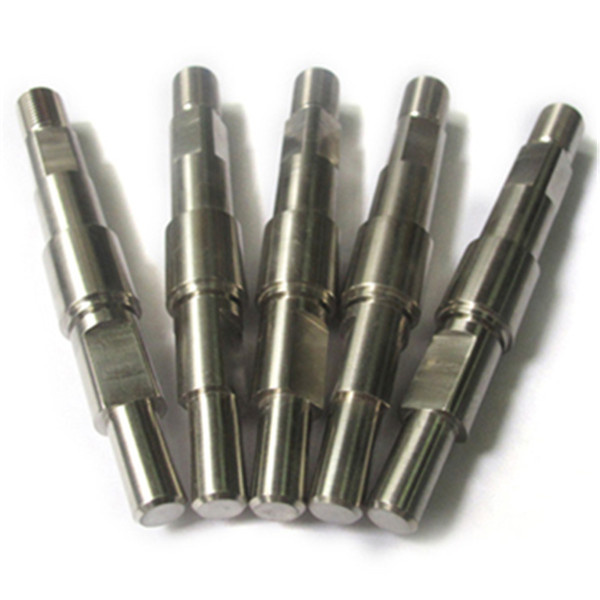

Industrial Stainless Steel Shaft High Precision Turned Parts Grinding Surface





Quick Detail:



Name

Machinery shaft

Material

Stainless steel ,etc

Process

CNC lathe turning

Surface treatment

Grinding

Application

Every industrial

Certification

ISO, SGS





Description:



NameMachinery shaft ,stainless steel shaft
SizeCustomized, according to drawings
MaterialCarbon Steel, Alloy Steel, Stainless Steel, Aluminum, Brass, Zinc etc.
AccuracyAccuracy Of Machining:+/-0.01mm
Accuracy Of Grinding:+/-0.01mm
Surface Roughness:Ra0.8
Parallelism:+/-0.005mm
Verticality:+/-0.005mm
Concentricity:0.003mm
ApplicationAutomabiles, Motorcycle, Mechanical Equipment, Furniture,etc.
DrawingJPEG, PDF, CAD, IGS, Step,Stp,X_t  acceptable
ServiceOne Stop service for your project, supply aluminum profile, cnc parts, lathe parts, stamping parts, die casting mould and parts with surface treatment
DesignDesign and improvement to meet your individual demands.
QualityISO9001/TS16949 Quality System Management Assurance
PaymentVarious options to make payment more convenient.
LogisticsLCL to save your freight cost
Customer Service24-hours standby, Critical listening your every suggestion or demand and feedback ASAP



Applications:



Parts are applied for:

  1. Defense, auotmotive, telecommunication, consumer electronics, appliances;
  2. Medical device, Lab equipments, food and beverage processing equipments,

     :

 Specification :



All the product pictures on our website just showing our machining capability and ranges We offer machining service according to customer's drawings or samples



1, Experience: more than ten years manufacturing history;

2, Price : Reasonable and competitive according to your drawings;

3, quality assurance: To ensure correct standard and choose equivalent stansard for materail and technique requirements,before running ,we would like to provide formal material certificate showing chemical compositions and property,also if you need ,we can provide control plan,showing processing and inspection tooling;

4, quanlity control: In house,coming inspection,first off,spotcheck in processing ,final inspection, 100% inspection for critical dimension;

5, Small order are accepted;

6, packing: carton box or iron can or depend on your requirements;

7, Delivery: 20-30days after confirming order, according to your requirements and production quantity:

8, Payment: By T/T, for samples 100% with the order: for production,50%paid for deposit by T/T before production arrangement, the balance to be paid before shipment. or negotiation;

9, honesty and professional services;



1) Material

SS304, Plain steel, Carbon Steel 1040 etc

2) Finishing and Treatment

Polishing, grinding,

3) Equipments involved

CNC machining/, CNC lathe, surface grinding machine etc

4) Processes involved

CNC milling, turning, grinding etc

5) Dimensional tolerance

±0.02mm or less

6) Geometric tolerance

±0.05mm or less

7) Roughness

Ra 0.016 or less

8) Production capacity

10,000pcs per month

9) Quality inspection

IQC, PQC, FQC

We provides custom CNC machining service for many years. Our trained staffs have extensive experience in quick prototype machining and precision machining. These valuable experience prove that we able to quick response to your needs of making the precision parts.

The custom machining services that we can offer:

CNC milling

CNC turning

Multi-axis milling and turning

Automatic lathing

Custom Machine Parts
Metal Stamping parts
Welding& solder
Metal fabrication

With our advanced Technology machines, established machining process management, and supporting supply chain in Ningbo, we are committed to ensure to complete your custom projects as below:

i.     Within the timeframe,

ii.    Within the budget,

iii.   Meeting the quality standard.

In additional, NINGBO OEM INDUSTRY MANUFACTURER LTD. is able to provide value-added engineering service. We can assist you from material choosing, structure testing, process up to finished goods arrangement. Our goal is to provide one-stop custom machining services to our customers and establish long term relationship.


Materials Available for CNC Machining:

Materials AvailableStainless SteelSS201, SS303, SS304, SS316 etc.
SteelQ235, 20#, 45# etc.
 BrassC36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37) , C28000(CuZn40)
Iron1213, 12L14,1215 etc.
BronzeC51000, C52100, C54400, etc.
AluminumAl6061, Al6063,AL7075,AL5052 etc
Terms and Conditions
Our ProcessingCNC machining, CNC milling and turning, drilling, grinding, bending, stamping, tapping, injection
 Surface finishZinc-plated, nickel-plated, chrome-plated, silver-plated, gold-plated, imitation gold-plated,
Tolerance0.05mm~0.1mm
QC System100% inspection before shipment
Drawing formatCAD / PDF/ DWG/ IGS/ STEP
PackagingStandard package / Carton box or Pallet / As per customized specifications
Payment Terms100% T/T or Western Union in advance
Trade termsEXW, FOB, CIF, As per customer's request

Shipment Terms
1) 0-100kg: express & air freight priority
2) >100kg: sea freight priority
3) As per customized specifications

Note
All CNC machining parts are custom made according to customer's drawings or samples, no stock.
If you have any CNC machining parts to be made, please feel free to send your kind drawings/samples to us anytime by email.

Specifications:



Technical Parameter for RF Connector Customise Fine Surface Precise Aluminium CNC Milling Parts

Length x Width x High

5X5 X5 mm ~ 500X500X500mm

Tolerances

+/- 0.005mm

Material use

Aluminium, Copper, Brass, Stainless Steel

Processing

CNC Machining Center

Surface Treatment

Galvanized, electro-plating, conversion coating,Zinc plating, or chrome plating available

Surface Roughness

Ra0.4a

Run-out

0.005mm

Flatness

0.005mm

Perpendicular

0.005mm

Cylindricity

0.005mm

Description

Types

Competitive Advantage

  • Top Quality
  • Competitive Price
  • On Time Delivery
  • Excellence Customer Service

Total Solution Provider

  • Providing one stop solution from material sourcing, product design and finished products shipment, inclusive supply chain management (ODM/OEM).

Our Winning strategy

  • Providing value-added engineering service.
  • Assisting you from material choosing, structure testing, process, up to finished goods arrangement.
  • One-stop custom machining services.

Application Industry

  • Automotive
  • Automation
  • Instrument Industry
  • Telecommunication
  • Optical Communication
  • Aerospace
  • Machinery Equipment
  • Robotics

Equipment display:


 Process FacilitiesQuantity
CNC milling machine3 sets
Cnc Lathe Machine  32sets
Lathe machine3 sets
 Grinding Machine2 set
Surface Grinding Machine2 sets
Drilling Machine 5 sets
CNC Milling Machine 1 sets
Drilling And Milling Machine2 sets
Automatic Tapping Machine6 sets
Punching Machine10 sets
Four Column Hydraulic Press1 set
Plastic Injection Machinery2 sets
Laser marking Machine 1 set
Air-blow logo marking set1 set
Watertight leakage testersets

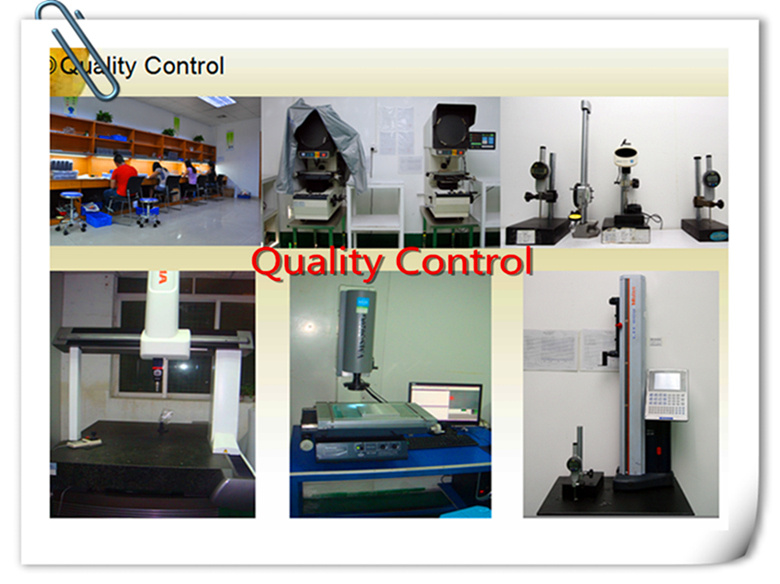

Testing Machinery:

Machine NameQuantity
Rockwell-hardness-tester4
Height gauge1
Universal tools microscope1
Projector1
Gear testing center2
Metallographic microscope1
Three coordinates measuring instrument(CMM)1
Microcomputer controlling tester1
Roughness tester1
Mechenical property tester1
Impact strength tester1
Japanese mitutoyo digital caliper3

CNC Milling-TurningCNC Milling-Turning
CNC Milling-Turning

Ningbo OEM Industry Manufacturer Ltd. Is engaged in manufacturing and supplying a comprehensive range of Customized CNC Precision Machining Components and Sheet Metal Parts.

We are committed to offer our clients with Precision Machining Components and services that match their expectations in terms of quality, execution and consummation.

Our team plays a vital role in intensifying the performance as well as growth rate of our firm through delivery of the best quality Components to our clients.

Capabilities:

· Turning

· Milling

· Boring

· Grinding

· Threading

· Wire cutting

· Stamping

· Punching

· Bending

· Welding

· Deep drawing

· Press brake forming

· Rolling

Processing Material:

· Carbon Steel, Alloy steel

· Tool Steel

· Stainless Steel

· Aluminium

· Brass, Copper

· Zinc

· Nylon, Delrin, Teflon, Rubber

Surface Treatment:

· Heat Treatment

· Zinc Plating

· Blackening

· Hot Chrome Plating

· Nickel Plating

· Silver Plating

· Painting

· Anodizing

· Powder Coating

· Tumbling

· Hot Dipped Galvanization

· Electro-Polishing

Additional Scope of Work: Supplying Casting, Forging, Rubber Parts, and Plastics parts as per customer requirements.
