Stainless Steel Slip-on Flange of 450-1000A

Name: Stainless Steel Slip-on Flange of 450-1000A
Brand: china-castingforging.com
SKU: 679383882
Availability: InStock
Rating: 4.4 (126 reviews)

Price:	US $ 3-6/Piece
Trade Terms:	FOB,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Qingdao Hengyong Valves Industry Co., Ltd.

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Manufacturing Way:	Casting
Material:	Stainless Steel
Type:	Welding Flange
Standard:	ANSI,DIN,JIS

Product Description

5KG/CM
KS B 1503-1989(JIS B2220)

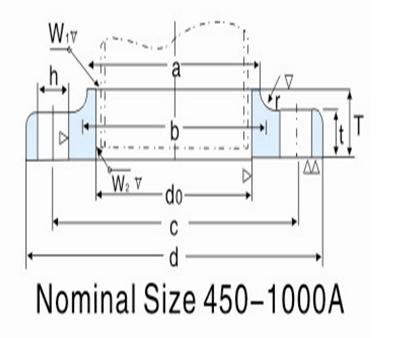

5KG/CM SLIP-ON WELDING STAINLESS STEEL PIPE FLANGES

Nominal Pipe size	Outside Dia of applicable pipe	Inside Sia. Of flange do	Outside dia. Of Flange D	Sectional Dimensions of Flange
				t	T	Dia.of Hub		Radius r
				t	T	a	b	Radius r
(10) 15 (20)	17.3 21.7 27.2	17.8 22.2 27.7	75 80 85	9 9 10
25 (32) 40	34.0 42.7 48.6	34.5 43.2 49.1	95 115 120	10 12 12
50 65 80	60.5 76.3 89.1	61.1 77.1 90.0	130 155 180	14 14 14
(90) 100 125	101.6 114.6 139.8	102.6 115.4 141.2	190 200 235	14 16 16
150 (175) 200	165.2 190.7 216.3	166.6 192.1 218.0	265 300 320	18 18 20
(225) 250 300	241.8 267.4 318.5	243.7 269.5 321.0	345 385 430	20 22 22
350 400 450	355.6 406.4 457.2	358.1 409.0 460.0	480 540 605	24 24 24	40	495	500	5
500 550 600	508.0 558.8 609.6	511.0 562.0 613.0	655 720 770	24 26 26	40 42 44	546 597 648	552 603 654	5 5 5
650 700 750	660.4 711.2 762.0	664.0 715.0 766.0	528 875 945	26 26 28	48 48 52	702 751 802	708 758 810	5 5 5
800 850 900 1000	812.8 863.6 914.4 1016.0	817.0 868.0 919.0 1021.0	995 1045 1092 1195	28 28 30 32	52 54 56 60	854 904 956 1058	862 912 964 1066	5 5 5

Dia of Bolt			Nominal Bolt Size	Welding		Weight (kg)
Bolt Circle Diameter C	Number Of Boll Holes	Hole Diameer h	Nominal Bolt Size	W1	W2	Weight (kg)
55 60 65	4 4 4	12 12 12	M10 M10 M10	5 5 5	2.5 3 3	0.27 0.30 0.37
75 90 95	4 4 4	12 15 15	M10 M12 M12	5 6 6	3 3 3	0.45 0.78 0.83
105 130 145	4 4 4	15 15 19	M12 M12 M16	6 6 6	3 4 4	1.07 1.49 1.99
155 165 200	4 8 8	19 19 19	M16 M16 M16	6 7 7	4 4 4	2.09 2.39 3.23
230 260 280	8 8 8	19 23 23	M16 M20 M20	7 7.5 8.5	5 5 6	4.41 5.51 6.33
305 645 390	12 12 12	23 23 23	M20 M20 M20	9 10 10	6 6 6	6.64 9.45 10.30
435 495 555	12 16 16	25 25 25	M22 M22 M22	12 12 12	7 7 7	14.00 16.90 24.80
605 665 715	20 20 20	25 27 27	M22 M24 M24	12 12 12	7 7 7	26.90 34.10 37.50
770 820 880	24 24 24	27 27 33	M24 M24 M30	12 12 12	7 7 7	42.80 45.40 57.40
930 980 1030 1130	24 24 24 28	33 33 33 33	M30 M30 M30 M30	13 13 13 14	8 8 8 9	60.80 63.50 75.30 88.50

Established in Qingdao, China in 1990, Qingdao Hengyong Valve Industrial has grown to become the Top manufacture of casted Stainless Steel Flanges and Stainless Steel Ball Valves in China. Now Hengyong Valve Industrial exported stainless steel flange and ball valve to 23 different countries.

Our Products Range include:

1. Stainless Steel Flanges: DIN/UNI/JIS/ASME/BS, Type include WN/BL/SO/PL/SW, size from 2" to 24".

2. Stainless Steel Valves: Manual or electric or pneumatic 1PC, 2PC, 3PC ball valves, globe valves, check valves, gate valves, Y strainers,

3. Stainless Steel Pipe Fittings: Quickly Coupling, Union, Camlocks and 150LBS fittings

4. Metal Castings from precision lost wax investment casting and Sand Casting process.

Our Production Capacity:

Flanges about 3000ton/annual, and Valves about 1000ton/annual.

In 2008, Qingdao Hengyong Valve Industrial was audited ISO9001-2008 Quality certification by TUV company.

For Further information pls contact.
