| Price: | US $ 3-6/Piece |
|---|---|
| Trade Terms: | FOB,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | slip-on flange of nominal size 10-600A |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Manufacturing Way: | Casting |
| Material: | Stainless Steel |
| Type: | Welding Flange |
| Standard: | ANSI,DIN,JIS |
|
Nominal Pipe Size |
Outside DIA.OF Steel pipe | Inside DIA.OF Flange D | Outside DIA.of Flange D | Bolt Hole | |||
| Bolt Circle DIA.C | Number of Bolt Boles |
Hole DIA h |
Nominal Bolt Size |
||||
|
10 15 20 25 32 |
17.3 21.7 27.2 34.0 42.7 |
17.8 22.2 27.7 34.5 43.2 |
90 95 100 125 135 |
65 70 75 90 100 |
4 4 4 4 4 |
15 15 15 19 19 |
M12 M12 M12 M16 M16 |
|
40 50 65 80 (90) |
48.6 60.5 76.3 89.1 101.6 |
49.1 61.1 77.1 90.0 102.6 |
140 155 175 200 210 |
105 120 140 160 170 |
4 8 8 8 8 |
19 19 19 23 23 |
M16 M16 M16 M20 M20 |
|
100 125 150 200 250 300 |
114.3 139.8 165.2 216.3 267.4 318.5 |
115.4 141.2 166.6 218.0 269.5 321.0 |
225 270 305 350 430 480 |
185 225 260 305 380 430 |
8 8 12 12 12 12 |
23 25 25 27 27 |
M20 M22 M22 M22 M24 M24 |
|
350 400 450 500 (550) 600 |
355.6 406.4 457.2 508.0 558.8 609.6 |
358.1 409.0 460.0 511.0 562.0 613.0 |
540 605 675 730 795 845 |
480 540 605 660 720 770 |
16 16 20 20 20 24 |
33 33 33 33 39 39 |
M30×3 M30×3 M30×3 M30×3 M36×3 M36×3 |
|
650 700 750 800 850 |
660.4 711.2 762.0 812.8 803.6 |
664 715 766 817 868 |
895 960 1020 1085 1135 |
820 875 935 990 1040 |
24 24 24 24 24 |
39 42 42 48 48 |
M36×3 M39×3 M39×3 M45×3 M45×3 |
|
900 1000 1100 1200 |
914.4 1016.0 1117.6 1219.2 |
919 1021 1123 1225 |
1185 1320 1420 1530 |
1090 1210 1310 1420 |
28 28 32 32 |
48 56 56 56 |
M45×3 M52×3 M52×3 M52×3 |

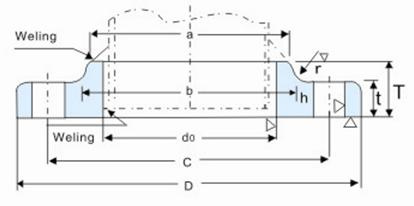

| Sectional Dimensions | Of Flange |
Approx Weight (kg) |
|||||
| t | T | DIA.of Hub |
Radius r |
f | g | ||
| a | b | ||||||
|
12 12 14 14 16 |
16 16 20 20 22 |
26 30 38 46 56 |
28 32 42 50 60 |
4 4 4 4 5 |
0.52 0.58 0.75 1.16 1.53 |
||
|
16 16 18 20 20 |
24 24 26 28 30 |
62 76 94 108 120 |
66 80 98 112 124 |
5 5 5 6 6 |
1.64 1.83 2.58 3.65 3.95 |
||
|
22 22 24 26 28 30 |
34 34 38 40 44 48 |
134 164 196 244 304 354 |
138 170 202 250 312 364 |
6 6 6 6 6 8 |
4.94 7.00 9.62 12.1 20.0 24.4 |
||
|
34 38 40 42 44 46 |
52 60 64 68 70 74 |
398 446 504 558 612 666 |
408 456 514 568 622 676 |
8 10 10 10 10 10 |
35.0 46.2 61.9 73.25 88.1 98.8 |
||
|
48 50 52 54 56 |
77 80 83 86 89 |
704 754 806 865 916 |
726 776 832 885 936 |
10 10 10 10 10 |
5 5 5 5 5 |
770 820 880 930 980 |
101 120 141 161 177 |
|
58 62 66 70 |
93 99 105 112 |
968 1070 1180 1282 |
986 1098 1200 1302 |
10 12 12 12 |
5 5 5 5 |
1030 1140 1240 1350 |
191 230 289 348 |
