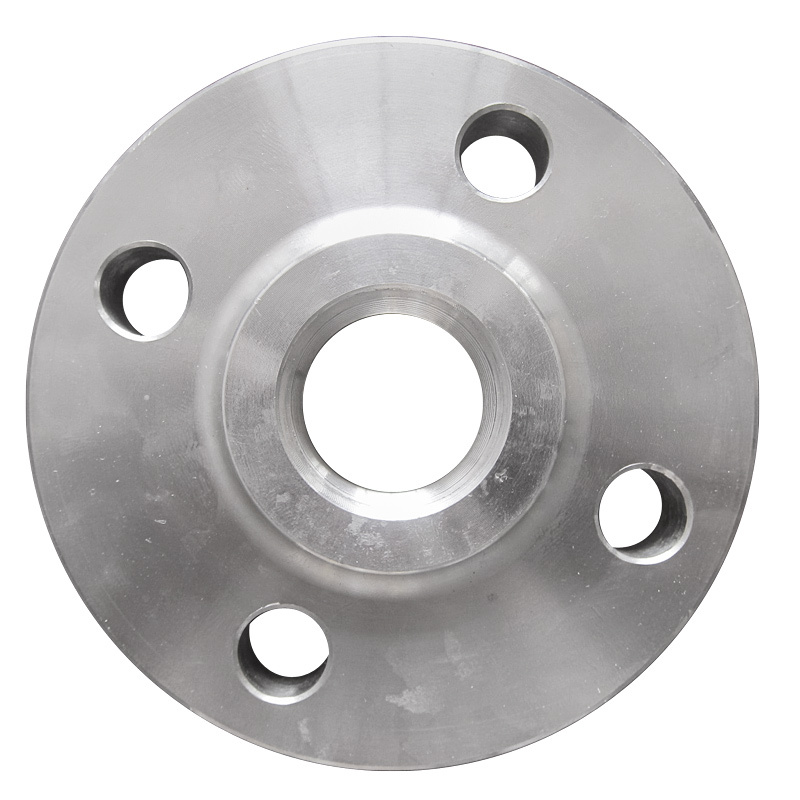

Stainless Steel Slip-on Flanges

Name: Stainless Steel Slip-on Flanges
Brand: china-castingforging.com
SKU: 679383122
Availability: InStock
Rating: 4.5 (50 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Qingdao Hengyong Valves Industry Co., Ltd.

Showroom Product Company Profile

Prod Model:	slip-on flange
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Stainless Steel
Manufacturing Way:	Casting
Type:	Welding Flange
Standard:	ANSI,DIN,JIS

Product Description

16-Bar DIN 2543 SLIP-ON FLANGES DIN 2527 BLIND FLANGES DIN 2633 WEIDING-NECK FLANGES Our company offers a wide range of flanges like PL, SW, BL, WN, SO, LJ,T threaded Flange etc., which is precisely engineered in accordance with international quality standards totally. These flanges are highly durable, corrosion resistant and reliable. Our range of flanges finds application in industries like engineering, construction, chemical, oil field and power plant. Valve is another main product in our company including ball valve, butterfly valve, and gate valve and so on. We also supply fasteners such as bolt, nut, gasket and stud, valve fittings, pump parts. OEM service is ok. ？ Quality and Safety: We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment.？ Your Success, Our Glory: Our aim is to help customers realize their goals. We are making great efforts to achieve this win-win situation and sincerely welcome you to join us.

Pipe Mating Dim		Flange						Raised Face
Nominal width	D1	D	t			K	T	D4	f
Nominal width	D1	D	Welding Neck	Slip on	Blind	K	T	D4	f
10 15 20	14 17.2) 20 21.3) 25 26.9*)	90 95 105	14 14 16	14 14 16	14 14 16	60 65 75	35 35 38	40 45 58	2 2 2
25 32 40	30 33.7) 38 42.4) 44.5 48.3*)	115 140 150	16 16 16	16 16 16	16 16 16	85 100 110	38 40 42	68 78 88	2 2 3
50 65 80	57 60.3) 76.1 88.9)	165 185 200	18 18 20	18 18 20	18 18 20	125 145 160	45 45 50	102 122 138	3 3 3
100 125 150	108 114.3) 133 139.7) 159 168.3*)	220 250 285	20 22 22	20 22 22	20 22 22	180 210 240	52 55 55	158 188 212	3 3 3
200 250 300	216 219.1) 267 273) 318 323.9*)	340 395 445	24 26 26	24 26 26	24 26 28	295 350 400	62 68 68	268 320 370	3 3 4
350 400 500	355.6) 368 406.4) 419 508 521	505 565 670	26 26 28	28 32 38	30 32 34	460 515 620	68 72 75	430 482 585	4 4 4
600 700 800	609.6) 622 711.2) 812.2*) 820	780 895 1015	28 30 32			725 840 950	80 80 90	685 800 905	5 5 5
900 1000	914.4) 920 1016) 1020	1115 1230	34 64			1050 1160	95 95	1005 1110	5 5

Hub				BOLTS					Approx Weight(kg)
D3	s	r	A~~	Q'TY	Thread			D2	Din 2574	Din 2632
25 28 30 32 38 40	1.8 2.0 2.3	4 4 4	6 6 6	4 4 4	M12 M12 M12	(1/2") (1/2") (1/2")		14 14 14	0.163 0.675 0.947	0.580 0.648 0.952
42 45 52 56 60 64	2.6 2.6 2.6	4 6 6	6 6 7	4 4 4	M12 M16 M16	(1/2") (5/8") (5/8")		14 18 18	1.14 1.66 1.89	1.14 1.69 1.86
72 75 90 105	2.9 2.9 3.2	6 6 8	8 10 10	4 4 4	M16 M16 M16	(5/8") (5/8") (5/8")		18 18 18	2.51 3.00 3.79	2.53 3.06 3.70
125 131 150 156 175 184	3.6 4.0 4.5	8 8 10	12 12 12	8 8 8	M16 M16 M20	(5/8") (5/8") (3/4")		18 18 23	4.20 5.71 6.72	4.62 6.30 7.75
232 235 285 292 335 344	5.9 6.3 7.1	10 12 12	16 16 16	8 12 12	M20 M20 M20	(3/4") (3/4") (3/4")		23 23 23	9.50 12.5 14.4	11.3 14.7 17.6
385 440 542	7.1 7.1 7.1	12 12 12	16 16 16	16 16 20	M20 M24 M24		(3/4") (7/8") (7/8")	23 27 27	20.6 27.9 41.1	21.4 26.1 34.7
642 745 850	7.1 8.0 8.0	12 12 12	18 18 18	20 24 24	M27 M27 M30		(1") (1") (1/8")	30 30 30
950 1052	10.0 10.0	12 16	20 20	28 28	M30 M33		(1/8") (1/8")	33 36

Established in Qingdao, China in 1990, Qingdao Hengyong Valve Industrial has grown to become the Top manufacture of casted Stainless Steel Flanges and Stainless Steel Ball Valves in China. Now Hengyong Valve Industrial exported stainless steel flange and ball valve to 23 different countries.

Our Products Range include:

1. Stainless Steel Flanges: DIN/UNI/JIS/ASME/BS, Type include WN/BL/SO/PL/SW, size from 2" to 24".

2. Stainless Steel Valves: Manual or electric or pneumatic 1PC, 2PC, 3PC ball valves, globe valves, check valves, gate valves, Y strainers,

3. Stainless Steel Pipe Fittings: Quickly Coupling, Union, Camlocks and 150LBS fittings

4. Metal Castings from precision lost wax investment casting and Sand Casting process.

Our Production Capacity:

Flanges about 3000ton/annual, and Valves about 1000ton/annual.

In 2008, Qingdao Hengyong Valve Industrial was audited ISO9001-2008 Quality certification by TUV company.

For Further information pls contact.
