| Prod Model: |
CF-109 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package: |
Pallet, Manmade Wooden Case or as Your Requirement |
| Certificate: |
ISO9001 SGS |
| Origine: |
Qingdao |
| Method: |
Investment Casting |
| Material Type: |
Stainless Steel |
| OEM: |
Available |
| Brand: |
Chifine |
| Criterion: |
JIS,DIN,ASTM,BS |
| Tolerance: |
CT7-CT9 |
| Delivery Time: |
30 Days After Receiving Payment |
| Material: |
Stainless Steel |
| Surface Preparation: |
Sand Blast |
| Casting Method: |
Lost Wax |
| Process: |
Precision Casting and CNC Machining |
Product Description

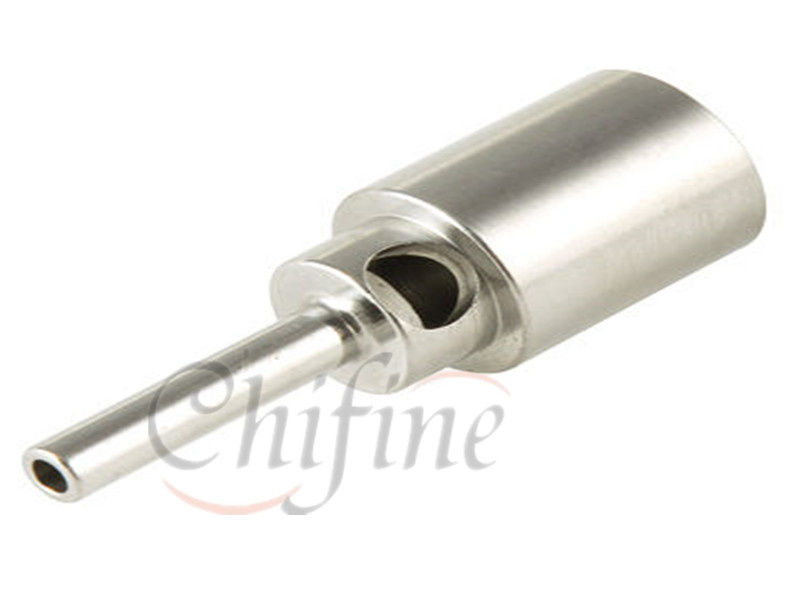

Stainless steel casting
Molding process---- water glass Precision Casting
Material: ----stainless steel Standard: DIN ASTM
Possible Heat Treatment----Normalizing, tempering, hardening and tempering
Industry involved---- Agricultural& Engineering& Automotive industry
Part Unit Weight range----0.01Kg~100kg
Wall thickness requirements----min 2mm
Manufacturer certification---- ISO9001 (2000)
Our Advantages
(1) 15 years of experience in manufacturing and exporting.
(2) OEM and custom-made service.
(3) All kinds of castings can be manufactured according to drawing, sample or specific industry standard.
(4) Both parts and assembly can be supplied.
(5) Strong engineering team makes high quality
(6) The coordinated service (casting, machining and surface treatment) make lower price possible.
(7) Advanced-level equipments.
(8) Full material testing process and quality control system. (Chemical compostion/Mechanical property/Harness/Microstructure)
(9) Quality warranty and on time delivery.
Company Profile:
Qingdao Chifine Machinery Co., Ltd is one famous company in China which specialized in various metal casting products with over 10 years experience located in Qingdao China. It covers a comprehensive range of forging, stamping, sand casting, investment casting, die casting and machining and was widely used in Agriculture machinery, Motor Vehicle, Architecture, Railway and Engineering
As a professional company, Chifine have four groups of experienced teams to be in charge of different work:
Project team-customer service
Engineering team-provide R&D and technical support
QC team-productive process control and incoming parts inspection
Warehouse team-warehouse management and logistic service
PROCESS |
MATERIAL |
STANDARD |
SAND CASTING |
Green Sand |
Grey Iron, Ductile Iron, Malleable Iron, Stainless Steel, Carbon Steel, Aluminium, Brass, Bronze |
AISI
ASTM
DIN
GB
BS
JIS
NF
AAR |
Furan Resin Sand |
Cold Harden Resin Sand |
INVESTMENT CASTING |
Sodium Silicone
(Water Glass) |
Stainless Steel, Carbon Steel, Special Alloy Steel, Bronze, Brass, Aluminium |
Silica Sol |
FORGING |
Hammer Forging |
Stainless Steel, Carbon Steel, Alloy Steel, Brass, Aluminium |
Die Forging |
Roll Forging |
STAMPING MACHINING |
|
All Metal Material |
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm
Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.
Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
