| Prod Model: |
NO. 10.67307.2100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
ANSI B 16.5 From 1/2" to 24" and Classes150 to 250 |
| Material: |
Stainless Steel |
| Certification: |
API |
Product Description

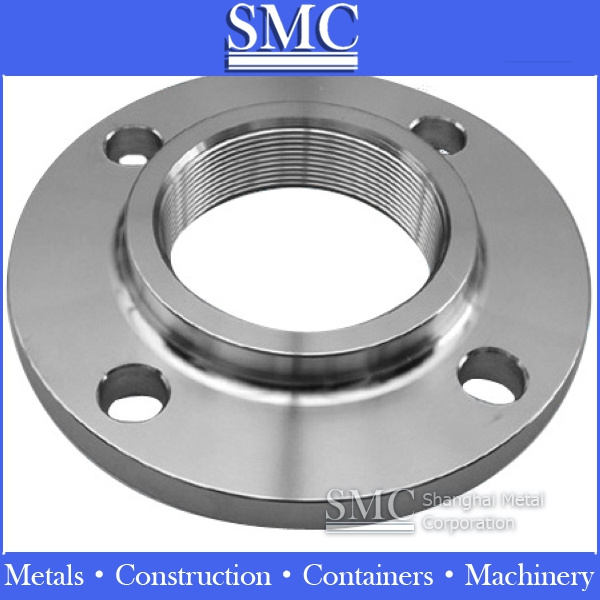

Threaded Flanges are similar to slip-on flanges in outline, but the bore is threaded, thus enabling assembly without welding. This obviously limits its application to relatively low pressure piping systems. Threaded Flanges may be welded around the joint after assembly, but this is not considered a satisfactory method of increasing the flanges' pressure applications.
Specification of Stainless Steel Threaded Flanges:
1. Stainless Steel: ASTM A 182, A 240
2. Grade : F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750
3. Size: ANSI B 16.5 from 1/2" to 24" and classes150 to 2500 (complete range)
4. Pressure: ANSI class 150 to 2,500
Sealing surface forms of Stainless Steel Threaded Flanges:
Raised face (RF)
The scope of European system for stainless steel flanges
Sealing surface type | Nominal pressure PN / MPa |
| (Bar) |
| 0.6 | 1.0 | 1.6 | 2.5 | 4.0 |
| -6 | -10 | -16 | -25 | -40 |
| Raised face (RF) | DN10-50 |
The scope of American system for stainless steel flanges
Sealing surface type | Nominal pressure PN (MPa) |
| (Class) |
| 2.0 | 5.0 | 11.0 | 15.0 |
| Class 150 | Class 300 | Class 600 | Class 900 |
| Raised face (RF) | DN15-150 | DN15-600 |
| (1/2 "-6") | (1/2 "to 24") |
Applications of Stainless Steel Threaded Flanges:
These flanges are used in special requirements to work under high temperature and pressure, making sure no welding joint is made at the assembly.
Package of Stainless Steel Threaded Flanges:
The stainless steel flange products are packed according to the international standards and regulations as well as to customer's requests. We would take great care to avoid any damage during storage or transportation of the stainless steel flanges.
