| Prod Model: |
BG-30/40/50/60/80/100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ISO9001 |
| Place Of Origin: |
Foshan, China |
| Brand: |
Bg |
| Warranty: |
One Year |
| Type: |
Pipe Making Machine |
Product Description

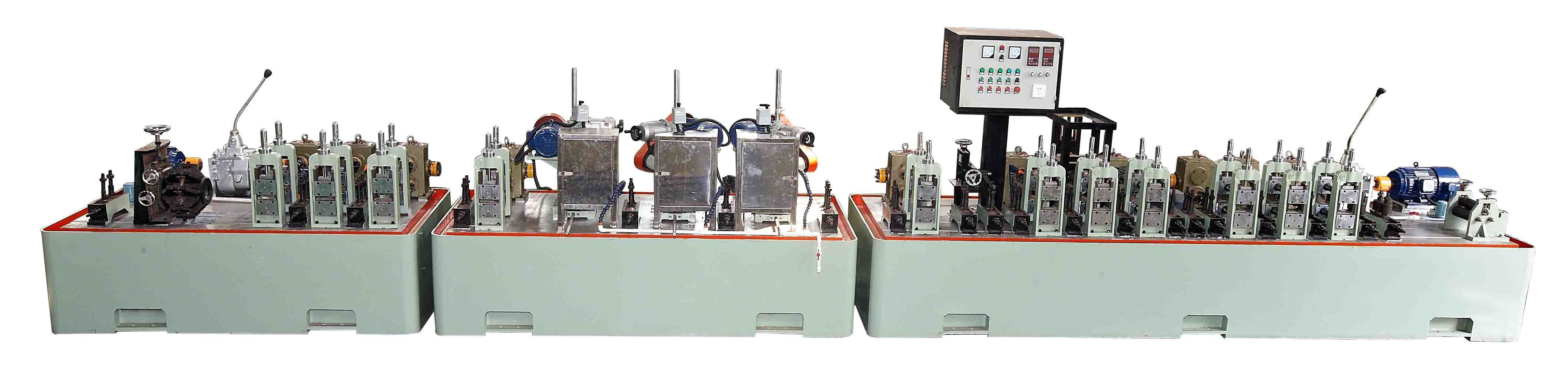

1. Name: Stainless Steel Tube Machine; Pipe welding machine
2. Place of Origin: Foshan, China
3. Port of loading: Foshan, Guangzhou, Shenzhen or TBD
4. Brand: BG
5. Guarantee: 1 year
1. Application: Mainly for decoration, products, appliances stainless steel pipe and carbon steel (round tube, square tube, shaped tube);
2. Automatic production process: Uncoil- cleaning equipment- feed direction- forming- welding- weld the entire inner peace- outer weld grinding- shaping sizing- solution treatment- the final sizing- straightening- testing- marking- set feet- cut off (coil)- unloading shelf.
3. Machinery main components stochastic: Open-book machine, forming welding machine, grinding machine, sizing machine, frame straightening, cutting machine, finished frame;
4. Pipe Diameter: 8mm-219mm
5. Pipe Thickness: 0.5mm- 5.0mm
6. After-sales services:
1) Provide technical documents and support about machinery installation, maintenance operation and so on;
2) Provide the equipment list of main components materials;
3) Responsible for equipment installation and equipment commissioning guidance;
4) Provide one year warranty (man-made damage without insurance, the vulnerability of non-insurance).
5) Provide post-paid warranty service after shelf life;
6) Foshan charged affaires for the customers.
(Model) |
Horizontal axis diameter (mm) |
Vertical diameter (mm) |
Pipe
diameter
(mm) |
Pipe thickness (mm) |
Main motor power |
(Mechanical assembly size
(Length X width |
|
BG-30 |
30 |
25 |
6-25 |
0.2-0.8 |
4KW |
19, 5m X 1.0m |
|
BG-40 |
40 |
25 |
6-32 |
0.2-1.0 |
5.5KW |
20m X 1.0m |
|
BG-40 |
40 |
25 |
9-51 |
0.2-1.5 |
7.5KW |
21.5m X 1.1m |
|
BG-40 |
40 |
25 |
12-64 |
0.3-2.0 |
11KW |
21.5m X 1.1m |
|
BG-50 |
50 |
30 |
25-76 |
0.3-2.5 |
11KW |
24m X 1.2m |
|
BG-60 |
60 |
40 |
38-114 |
0.4-3.0 |
15KW |
26m X 1.4m |
|
BG-80 |
80 |
50 |
76-168 |
1.0-3.5 |
18.5KW |
32m X 2.3m |
|
BG-100 |
100 |
60 |
114-219 |
1.0-4.0 |
22KW |
36m X 2.5m |
|
Heater plane |
30 |
20 |
5-16 |
0.2-1.0 |
4KW |
17m X 0.9m |
|
Machinery main components: open-book machine, forming welding machine, grinding machine, sizing machine, straightening frame, cutting machine, finished frame |
Foshan Baiguan Science and Technology Co., Ltd, located in Foshan Shishan Industrial Park, is a whole-plant equipment manufacturer of the stainless steel tube mill, specialized in research, development, design, production, sales, and support services.
Our company has strong technical force and overall quality. We have a professional welded pipe R & D team, management team, and more than 50 capable technicians. Also, we established an advanced computer simulation laboratory and workshop in equipment development experiments.
We strictly carry out the ISO9001 international quality management system standard. After several years development and innovation, through the staff's pursuing and full use of modern management and advanced precision machinery processing equipment, we establish a complete operating system throughout home and abroad. Quality products and attentive service not only have won a large number of loyal customers for the company, but also achieved recognition from the industry and authorities.
Based on stainless steel welded pipe equipment, we created our brand of "BG" for a dozen specifications of products, including industrial pipe making machine, weld seam-inside leveling machine, bright annealing equipment, high frequency welding tube mill, stainless steel decoration pipe making machine, polishing machine, mold, embossing machine, milling machine etc.
To go with the development of the times, and to meet the diverse needs of customers, our company will go hand in hand with a innovation attitude. As customers continue to recognize, our products have been selling both at home and abroad.
Our company's corporate philosophy is " win by technology, strive for excellence". We forge ahead by working ways of "scientific, rigorous, innovative"; Hunt for the latest industry information with sharp market insights. We are LED by market demand. Customer-oriented is our core value. We are sure to provide our customers with quality products and first-class services.
We warmly welcome you to visit our company and negotiate win-win cooperation so as to create a better future!
Keyword: Tube Mill, Polishing Machine, Pipe Making Machine, Stainless Steel Pipe Machine
