| Price: | US $ 3-6/Piece |
|---|---|
| Trade Terms: | FOB,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | WN |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Manufacturing Way: | Casting |
| Material: | Stainless Steel |
| Type: | Welding Flange |
| Standard: | ANSI,DIN,JIS |
|

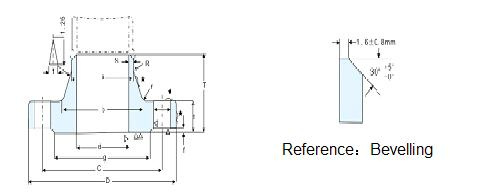

Nominal DIA. Of Flange |
Outside DIA.of Steel Pipe |
Outside DIA.Flange D |
Bolt Hole |
Nominal Bolt Size |
Approx Weight (kg) |
||
| Bole DIA. Circle C | Number of Bolt Holes | DIA. Of Hole h | |||||
| 10 | 17.3 | 90 | 65 | 4 | 15 | M12 | |
| 15 | 21.7 | 95 | 70 | 4 | 15 | M12 | |
| 20 | 27.2 | 100 | 75 | 4 | 15 | M12 | |
| 25 | 34.0 | 125 | 90 | 4 | 19 | M16 | |
| 32 | 42.7 | 135 | 100 | 4 | 19 | M16 | |
| 40 | 48.6 | 140 | 105 | 4 | 19 | M16 | |
| 50 | 60.5 | 155 | 120 | 8 | 19 | M16 | |
| 65 | 76.3 | 175 | 140 | 8 | 19 | M16 | |
| 80 | 89.1 | 200 | 160 | 8 | 23 | M20 | |
| 90 | 101.6 | 210 | 170 | 8 | 23 | M20 | |
| 100 | 114.3 | 225 | 185 | 8 | 23 | M20 | |
| 125 | 139.8 | 270 | 225 | 8 | 25 | M22 | |
| 150 | 165.2 | 305 | 260 | 12 | 25 | M22 | |
| 200 | 216.3 | 350 | 305 | 12 | 25 | M22 | |
| 250 | 267.4 | 430 | 380 | 12 | 27 | M24 | |
| 300 | 318.5 | 480 | 430 | 16 | 27 | M24 | |
| 350 | 355.6 | 540 | 480 | 16 | 33 | M30×3 | |
| 400 | 406.4 | 605 | 540 | 16 | 33 | M30×3 | |
| 450 | 457.2 | 675 | 605 | 20 | 33 | M30×3 | |
| 500 | 508.0 | 730 | 660 | 20 | 33 | M30×3 | |
| 550 | 558.8 | 795 | 720 | 20 | 39 | M36×3 | |
| 600 | 609.6 | 845 | 770 | 24 | 39 | M36×3 | |
