| Prod Model: |
C2-200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Forging Forming Method: |
Mold Forging |
Product Description
QA standard: JIS 1 class standard
Application range: Metal stamping, bending, metal forming, drawing, forging, and trimming.
MITSUBISHI PLC control system, ASHTON electrical angle indicator,
FUTE electrical adjustable mold motor, NSK bearing, NOK oil sealing. TECO VS motor, TACO dual solenoid valve, 42 CRMO crank, 45# forging gear, super qulaity Shanghai steel welding under CO2 protection welding.
Italy clutch, Japanese BC6 and PBC6 copper and copper sleeve.
|

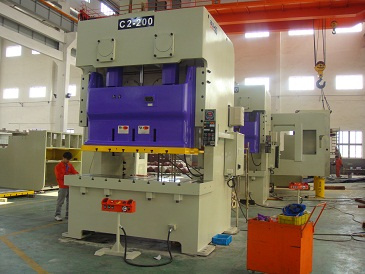

C2-200 |
|
Specification |
S type |
V type |
H type |
|
capacity (ton) |
200 |
200 |
200 |
|
rated tonnage point (mm) |
6 |
6 |
3 |
|
stroke length (mm) |
250 |
250 |
150 |
|
stroke per minute (S. P. M) |
35 |
25-45 |
35-70 |
|
max die height (mm) |
500 |
500 |
500 |
|
slide adjustment (mm) |
120 |
120 |
120 |
|
bolster area (LRxFB) (mm) |
2400*840 |
2400*840 |
2400*840 |
|
bolster thickness (mm) |
170 |
170 |
185 |
|
slide area (LRxFB) (mm) |
1850*650 |
1850*650 |
1850*650 |
|
slide thickness (mm) |
95 |
95 |
95 |
|
slide hole (mm) |
50*3*pitch 375 |
50*3*pitch 375 |
50*3*pitch 375 |
|
main motor (KWxP) |
15*6 |
15*4 |
15*4 |
|
slide adjusting motor (HP*P) |
2*4 |
2*4 |
2*4 |
|
the pressure of air supply (kg/cm 2 ) |
5-6 |
5-6 |
5-6 |
|
precision |
GB(JIS) 1 class |
GB(JIS) 1 class |
GB(JIS) 1 class |
|
machine weight (ton) |
28.5 |
28.5 |
28.5 |
|
machine dimension LxWxH (mm) |
2620*2235*3849 |
2620*2235*3849 |
2620*2235*3849 |
|
die cushion |
model |
2 pad 2 cylinder |
2 pad 2 cylinder |
2 pad 2 cylinder |
|
capacity (ton) |
10*2 |
10*2 |
10*2 |
|
air pressure (kg/cm2) |
6.75 |
6.75 |
6.75 |
|
stroke length (mm) |
80 |
80 |
80 |
|
pad area |
540*350*2 |
540*350*2 |
540*350*2 |
Ningbo BOXIN Machinery Co., Ltd. was found in 2003, is one of the leading press manufacturer in Ningbo, China. Our products have been sold to Indonesia, India, Malaysia, Mexico. We are developing other countries markets and looking for professional wholesales all over the world.
Some of our major customers are CHNT, MAZDA, AUX, GEELY, BYD, MIDEA Who are satisfied with BOXIN machine's quality. As our machines are accuracy and durability.
In order to meet the requirement of it's customers in procuring high quality products, our company use all high precision, high performance machine tools from Japan. BOXIN products range from 16 ton open back C-frame press up to 1600 ton eccentric gear driven link motion car body panel stamping machines. Other than stamping press, it also manufactures cold and hot (warm) forging press machine for both home appliance and automotive industries.
Implementation standard: JIS 1 class standard The machine is widely used for pressing and forming in the fields of electronic, household electric appliance, furniture, communication tools and vehicles (automobile, motorcycles, bike) and hardware etc.
Applicable processes: Punch, bend, molding, stretching and rolling.
