| Prod Model: |
YX8-130-910 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Sky Blue or Water-Ripple Green |
| Main Application: |
Roof Steel Panel |
| Type: |
Cold Roll Forming Machine |
Product Description

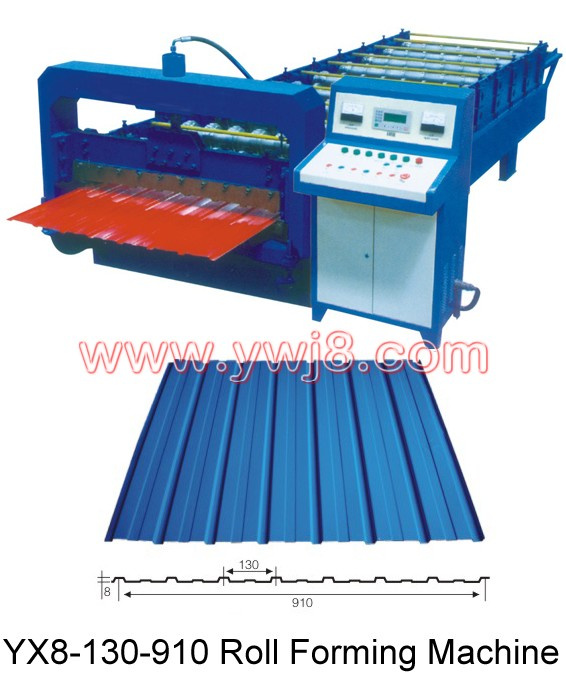

Standard Standard Forming Machine, YX8-130-910
12 years' experience since 1998
Easy operation, low noise and hight production capacity (10-12m/min)
Both standard and customized machine as per their specific requirements.
|
main technical parameters |
|
1. General: |
|
Material Spec |
Q235 or 34 KSI, 0.25 mm to 0.8 mm |
|
Material Width |
1000/1200/1220/1250mm |
|
Forming Steps |
13 |
|
Controlling System |
PLC |
|
Main Application |
Roof and Wall Panel |
|
Dimension |
about 6.7*1.3*0.8m (L*W*H) ( depend roofing style ) |
|
Total weight |
about 2.6 ton |
|
2. For the produced panel: |
|
width |
910mm (Depend on your request) |
|
Length |
Any length as your requirement (set by PLC) |
|
Speed |
10-12 m/min |
|
Type of cutting |
Roll-formed and length-set cut |
|
3. Components: |
|
Roller Material |
High grade No. 45 forged steel, with digital-controlled procession, Painted with hard chrome |
|
Active Shaft Material |
High grade No. 45 carbon wrought steel, which can improve the integrated mechanic feature of the shaft |
|
Cutting Blade |
Cr12 mould steel with quenched trea |
|
Electric Elements |
screen display: 5.7 inch Delta touch screen |
|
main computer (PLC): Delta DVP14ES |
|
Products Warranty |
One year. and we will provide the technical support for the whole life of the equipment |
Established in 1998, Botou Zhenyuan Roll Forming Machine Factory is specialized in designing and producing roof and wall roll forming machines.
Our products are widely applied to manufacturing colored steel tiles which get extensive application in industry workshop, warehouse, residence, etc. They have won high reputation for their satisfying quality among our customers.
