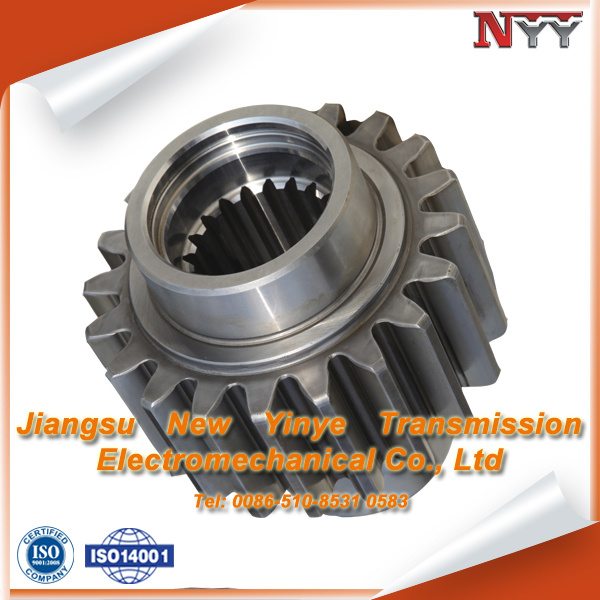

Standard Spline Shaft

Standard Spline Shaft
Price: US $ 315/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: gear shaft-6197
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tooth Profile: Involute
Type: Circular Gear
Manufacturing Method: Cut Gear
Toothed Portion Shape: Curved Gear

Product Description

1. Brief descriptions and advantages:
(1)Jiangsu professional gear manufacturer;
(2)Experience in Cooperate with Fortune 500 Companies
(3)High product performance;
(4)Reasonable price;
(5)Professional engineering capability;
(6)Small orders accepted.

2. Our Features:
(1) In-house capability: OEM service as per customers' requests, with in-house tooling design & fabricating
(2) Professional engineering capability: On product design, optimization and performance analysis
(3) Manufacturing capability range: DIN 3960 class 8 to 4, ISO 1328 class 8 to 4, AGMA 2000 class 10-15, JIS 1702-1703 class 0 to 2, etc.
(4) Packing: Tailor-made packaging method according to customer's requirement
(5) Just-in-time delivery capability

3. About us:
Jiangsu New Yinye Transmission Electromechanical Co., Ltd is one of the leading manufacturers in the line of spur gears, ring gears, helical gears, standard gears and non-standard gears. Our engineers are in machanical field for over 40 years. We can give you the most professional solutions on your designs.

With a wide range, good quality, reasonable price and stylish design, our products are extensively used in electronic, automatic, medical device, machinery and other industries. Through sound business credit, excellent after-sales service, and modern manufacturing facilities, we have earned an excellent repution among our customers across the world.

Production process&Inspection process




4. Gear Technical Data
Product name shaft gear
Features hollow internal spline,hard tooth surface
Application for mining machinery
Teeth profile involute
Material 18Cr2Ni4WA
Machining process forging+carburizing+grinding +shaping internal splines
Pressure angle tooth part:20°,spline part:30°
Accuracy grade AGMA Class  10;spline part:GB3478  class 7
Model Mn=7,Z=19,a=20°
Mn=3,Z=21,a=30°;
Brand NYY
Origin Jiangsu,China
Jiangsu New Yinye Transmission Electromechanical Co., Ltd was founded in 1993 and located at the lakeside of Tai in Wuxi, Jiangsu province. It is a high-tech enterprise specializing in manufacturing high precision involute cylindrical gears, gear boxes and precision sheet metal products. Our company occupies 50, 000 square meters with the total investment 150 million RMB. It has the beautiful environment and the convenient transportation advantage, with the G2 Jinghu highway and Shanghai-Nanjing intercity high speed railway station nearby, as well as the Sunan Shuofang international airport 2kms away.

Our company owns the most sophisticated production and inspection facilities in the world and the high efficient management team. Our productions have been applied in many industrial fields, such as wind power, locomotive, marine, mining, petrol facility and food machinery, etc.

Respect for talent and innovation is the common knowledge of New Yinye staff now. New Yinye always focuses on the development ability, and now, it owns more than 50 patents. Our company has introduced several advanced engineering design software and applied more than 30 new technologies and new processes. And also, it is certified by ISO 9001: 2008 and ISO 14001: 2004.

Strict management, hard working, continuous improvement, honor the commitment is the enterprise spirit of New Yinye. With efficient quality management system, advanced management philosophy and high quality technology team, New Yinye is devoting itself to highest quality product, most perfect service to make its hundred-year enterprise dream to come true.
