| Prod Model: |
GD-150, GZL-45 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
SGS and ISO |
| Tensile Strength: |
1.08-1.35 Times of The Rebar |
| Weight: |
2030kgs |
| Package: |
3 Wooden Case |
| Meet Standard: |
Aci 318 |
| Coupler Sample: |
Free |
| Forging Forming Method: |
Mold Forging |
| Feature: |
Automatic |
Product Description
1.Description:

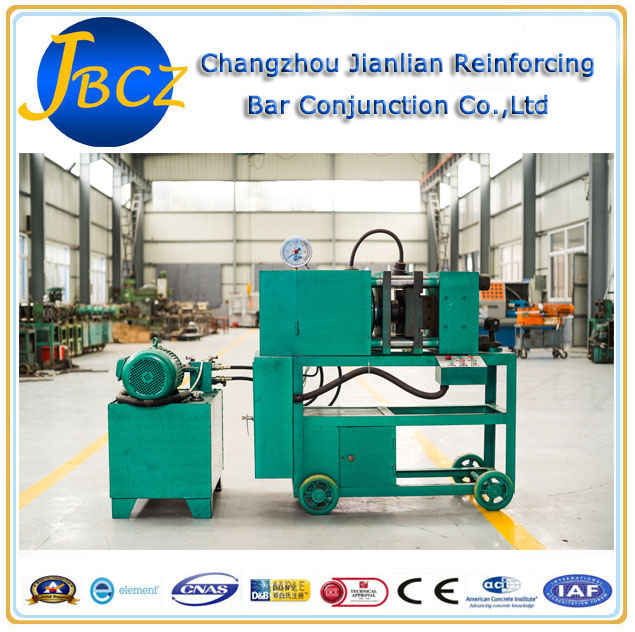

The upset forging parallel thread machine contains one rebar threading machine(GZL-45) and one upset forging machine(GD-150), they work together with couplers for the connection of rebar whose diameter is between 12mm and 40mm.
| The Parameter For Standard Coupler (MM) |
| Steel bar Diameter(MM) | 12 | 14 | 16 | 18 | 20 | 22 | 25 | 28 | 32 | 36 | 40 |
| Out Dia.of Coupler(MM) | 20 | 22 | 26 | 29 | 32 | 36 | 40 | 44.5 | 50 | 56 | 62 |
| Inner Dia.of Coupler(MM) | 11.9 | 13.9 | 17.4 | 19.4 | 20.9 | 23.9 | 26.3 | 29.3 | 31.8 | 34.8 | 40.3 |
| Length of Coupler(MM) | 30 | 34 | 40 | 44 | 48 | 52 | 60 | 66 | 72 | 80 | 90 |
| Size of Thread(MM) | M14*
2 | M16*
2 | M20*
2.5 | M22*
2.5 | M24*
3 | M27*
3 | M30*
3.5 | M33*
3.5 | M36*
4.0 | M39*
4.0 | M45*
4.0
|
2.Working principle:
First, we use GD-150 to forging the end of rebar.
Second, we use the GZL-45 to threading the end of rebar.
Third, we use the coupler to link the two ends of rebar.
3.Advantages:
1), Adopts upset forging parallel thread connection technology;
2), Wide working range: Adaptable for 12mm-40mm same diameter, different diameter, bending, new and old, advance covered up rebar of GB 1499, BS 4449, ASTM A615 or ASTM A706 standard.
3), High strength: Stronger than the reinforcement bar and guarantees bar break under tensile stress(tensile strength of connection point =1.1 times of connected bar's specified tensile strength). It can satisfy the requirements stipulated in the Chinese standard JGJ107-2003, JG171-2005.
4), High efficiency: Upset forging and threading one joint only needs no more than one minute, and handy operation and quick link.
5), Environmental protection and economy profit: No envirement pullution, can work all day, not affected by weather, economize energy source and bar material.
4. Application:
Shanghai Jin Mao Tower
Dubai Metro
5. FAQ:
1) The packing of machine?
I set machine were packed into 3 wooden cases.
2) How many sets amchine can be put into a 20' container?
4sets
3) How can I know the quality of your rebar connection machine and rebar coupler?
Dear, please send us your rebar, we will make threading with our upset forging parallel thread machine, and link with our rebar coupler, then send you back to do the test. If the test is failed, we pay all the charges to you!
4) Where is your company, I want to come to check?
Our company is in Changzhou City, Jiangsu province, near Shanghai city, we are glad to pick you up in the airport. It takes 2 to 3 hours from Shanghai to our company by car.
5) Can I get your FREE SAMPLES?
Yes, for coupler, you can get the sample.
