| Prod Model: |
YD3150 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
Yd3150 |
| Export Markets: |
Global |
| Forging Forming Method: |
Mold Forging |
Product Description

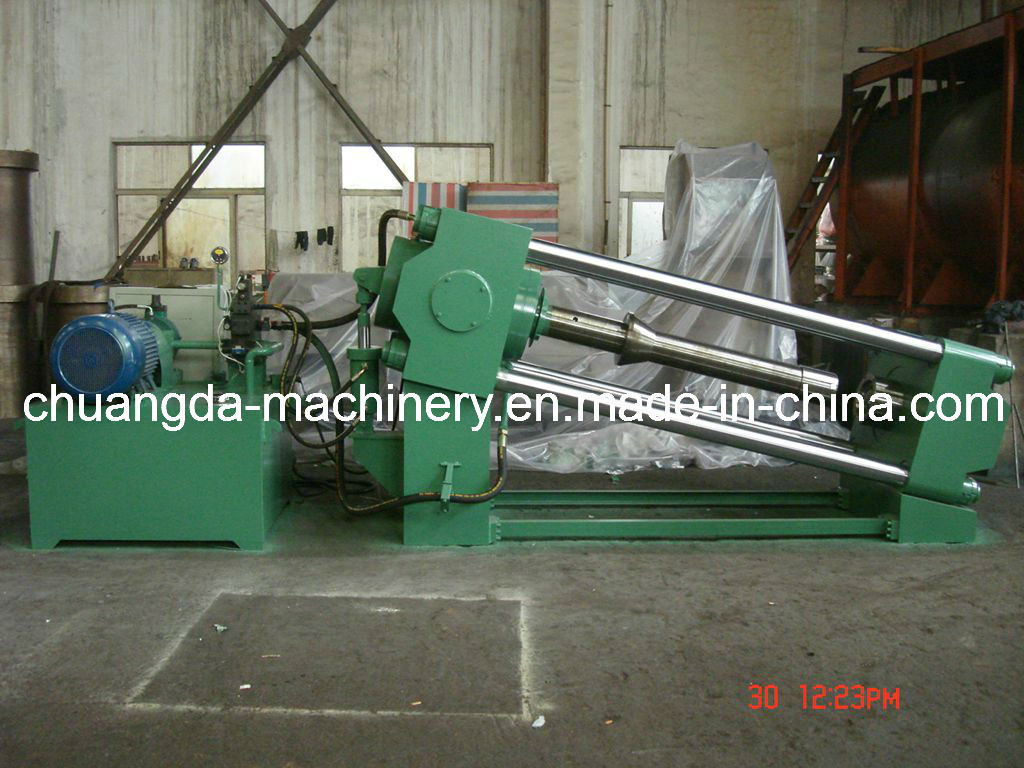

The machine is four pole horizontal hydraulic pressure machine. It special used for small steel bottle bottom moulding. Put closed steel bottle on the protruding film of machine, using the heat after closer finishing, once press moulding, then hydraulic pressure jar running protruding film, can draw out steel bottle and go on next procedure. Techn
Ology Parameter Normal pusher 1000KN Time of single circle 30s Overall dimension (L× W× H) 3000× 1500× 800 Motor power 11kw Weight 3.5T
Norminal pressure: 3150KN
Inner Diamension of Main cylinder: Φ 400
Turn over cylinder force: 306KN
Inner Diamension of turn over cylinder: Φ 125
System Max. Pressure: 25MPA
Single cycle time: 25s(non-load)
Motor: 30KW*1
Oil pump: 160YCY14-1B× 1
Bottom size: Φ 219-Φ 406(Wall thickness δ Max=10)
Operation way: Semi auto(PLC control)
Bottom size: Max diamension 406mm; Max length 1500mm
Jiangyin Chuangda Machinery Industry Co., Ltd. is located in Zhouzhuang Town, Jiangyin City, Jiangsu Province. Our factory is specialized in producing Hydraulic balers, briquetting presses, Alligators, as well as firefighting equipment and machinery, etc.
Most of our machines are used in recycling process in recycling companies and steel factories, and they use our machines to help recycle and compress waste metal & non-metal materials to save the space for delivery and store, and also help reuse the waste materials.
We have 150 employees and 17 engineers and technicians, and our factory also cooperates with experts with rich experience and innovative technology, guaranteeing the good quality of our presses and improvement in R&D.
We sincerely welcome friends from recycling, metallurgy & other fields to visit our factory and cooperate with us. We have exported equipment to East Europe, South Africa, America, Asia, the Middle East, and many other worldwide countries and regions. We have pleasant cooperation with all our customers.
