| Prod Model: |
CF-057 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package: |
Pallet, Manmade Wooden Case or as Your Requirement |
| Surface Finish: |
Polishing, Anodising, Powder Coating etc |
| Quality Certification: |
ISO 9001 CE SGS |
| Origine: |
Qingdao |
| Service: |
OEM and ODM |
| Export Market: |
Global |
| Brand: |
Chifine |
| Delivery Time: |
30 Days After Receiving The Payment |
| Weight: |
0.5kg-100kg |
| Machining: |
CNC Turning Milling Drilling Lathe |
| Casting Method: |
Thermal Gravity Casting |
| Material: |
Stainless Steel |
| Surface Preparation: |
Sand Blast |

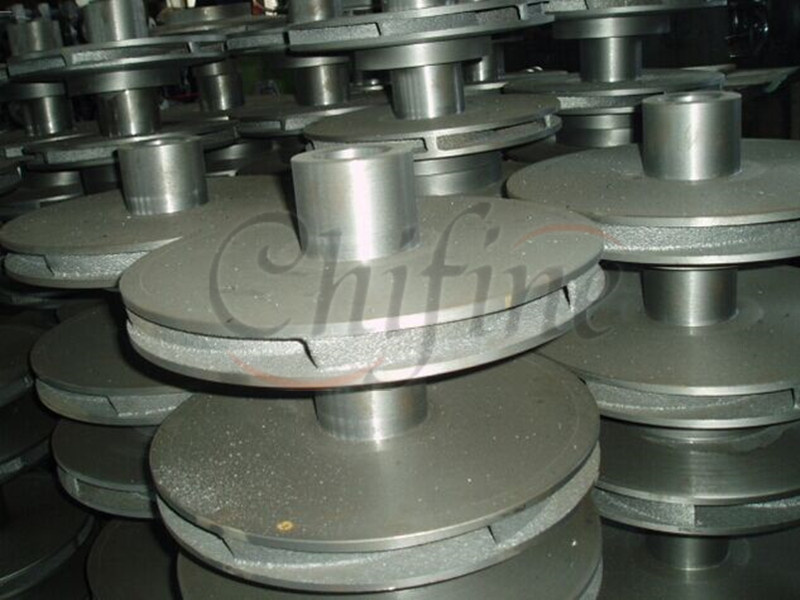

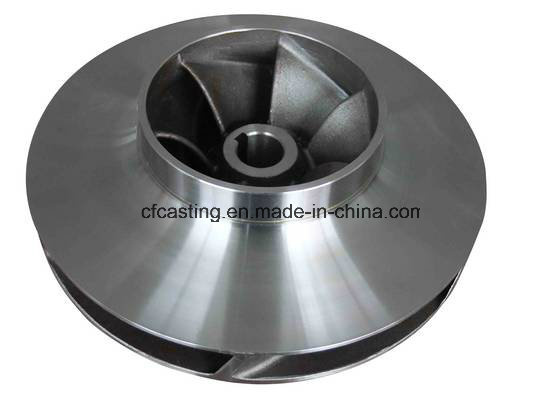

| Application: |
Pump Part |
Product Description
Product Introduction:
1. Material: Stainless Steel, Carbon Steel, Alloy Steel, like: SS304, SS316, 42CrMo4, 1Cr18Ni9Ti...
2. Process: Lost Wax Casting, Investment Casting by sodium silicate or silica sol and CNC machine...
3. Size: as per drawing or sample from 0.01 kg-100kgs unit weight.
4. Surface: Zinc-Plated, Hot Dip Galvanized, Polish, Painting, Lightly Oiled...
5. Non-Destructive Test: Ultronsic Test, Magnetic Particle Testing, X-Ray Testing
6. Package: In pallet or as your requirement
7.Surface finish process:blacking/polishing/anodize/chrome/plating/zinc plating/nickel plating, tinting,etc.
8. Tolerance: 0.05mm-0.1mm
9 .Surface roughness: Ra0.8-1.6
10. Main equipment used: CNC machine, milling machine, machining center,drilling machine, cutting machine, grinding machine, tipping machine,etc.
11.Standard: IS, ASTM, DIN, BS, etc.
12.Casting process:Model making→Core making→Mold assembling→Pouring→Cleaning→Shot blasting→Machining
13.Inspection:We have a full set of quality control system to guarantee best product quality. Depending on the products, we can make different Item Testing Plan, Manufacturing procedure etc.Quality control:
(1) Machinery properties and Chemical components testing after raw casting
(2) Hardness checking after heat treatment
(3) Dimensions testing after machining
(4) Quality control checks though all the following flow:
Drawings→ mould making →raw casting → sandblasting →rough machining or finish machining →surface treatment →product check→ packing →delivery strict
Service
(1) OEM and custom-made service.
(2) Full machining, primer painting, and surface treatment.
(3) Full material testing process.
(4) Quality control
Qingdao Chifine Machinery Co.,Ltd is one famous company in China which specialized in various metal casting products with over 10 years experience located in Qingdao China.It covers a comprehensive range of forging, stamping, sand casting, investment casting, die casting and machining and was widely used in Agriculture machinery, Motor Vehicle, Architecture,Railway and Engineering
As a professional company, Chifine have four groups of experienced teams to be in charge of deferent work:
Project team-customer service
Engineering team-provide R&D and technical support
QC team-productive process control and incoming parts inspection
Warehouse team-warehouse management and logistic service
| PROCESS |
MATERIAL |
STANDARD |
SAND CASTING |
Green Sand |
Grey Iron, Ductile Iron, Malleable Iron, Stainless Steel, Carbon Steel, Aluminium, Brass, Bronze |
AISI
ASTM
DIN
GB
BS
JIS
NF
AAR |
Furan Resin Sand |
Cold Harden Resin Sand |
INVESTMENT CASTING |
Sodium Silicone
(Water Glass) |
Stainless Steel, Carbon Steel, Special Alloy Steel, Bronze, Brass, Aluminium |
Silica Sol |
FORGING |
Hammer Forging |
Stainless Steel, Carbon Steel, Alloy Steel, Brass, Aluminium |
Die Forging |
Roll Forging |
STAMPING MACHINING |
|
All Metal Material |
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm

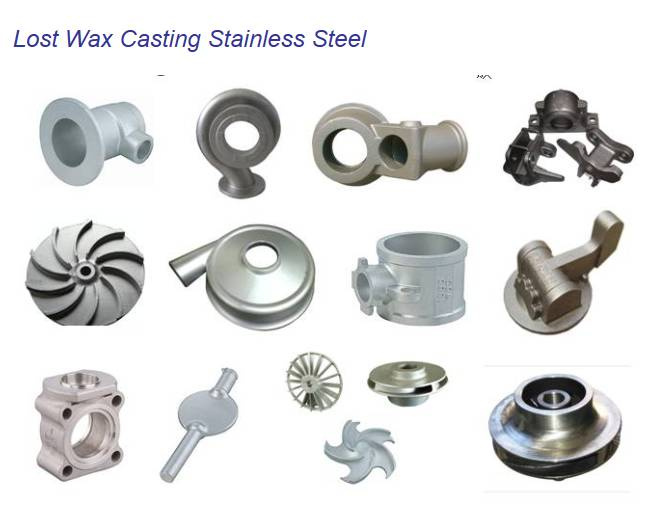

Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.

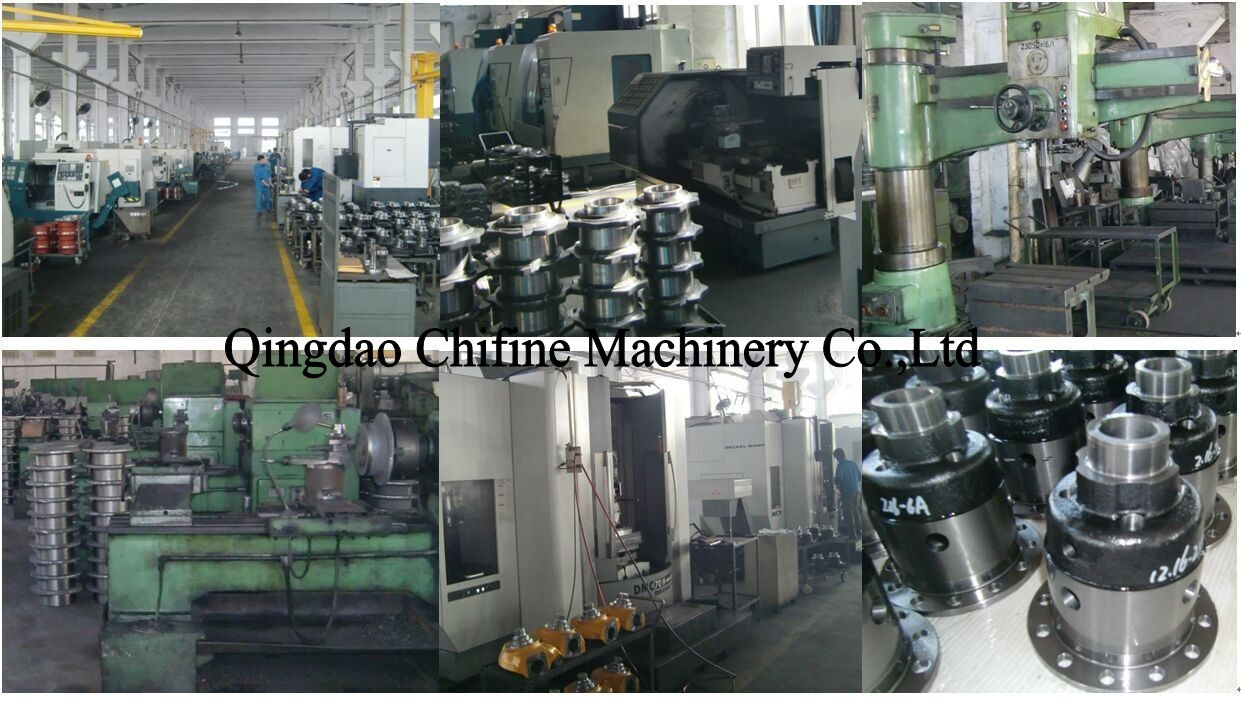

Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
