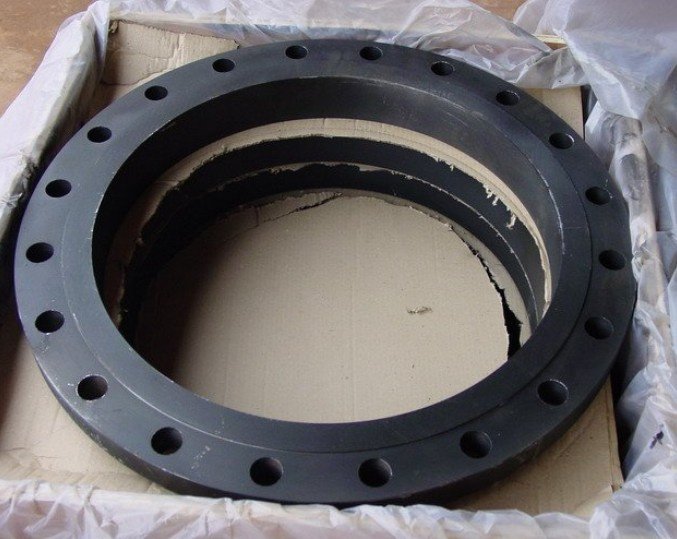

Steel Casting Flange

Name: Steel Casting Flange
Brand: china-castingforging.com
SKU: 677256542
Availability: InStock
Rating: 4.4 (44 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Cangzhou Xingye Pipe Fitting Co., Ltd.

Showroom Product Company Profile

Prod Model:	Steel Casting Flange
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	1/2"--72"
Manufacturing Way:	Casting
Material:	Carbon Steel
Type:	Welding Flange
Standard:	GOST

Product Description

Steel Casting Flange:

ISO9001: 2000
The competitive price and best quality

Other Type: Slip-on, welding neck, Blind, Socket Welding, Lap Joint and Plate ect.

Pressure Ratings: Class 150, 300, 600, 900, 1500 and 2500

Pressure Rating: PN6, PN10, PN16, PN25, PN40 and PN 64.

Pressure Rating: JIS 5K, 10K, 16K, AND 20K.

Standard: ANSI, DIN, BS, JIS, AWWA, BS and GB ect.

Material: Stainless steel, Carbon steel and Alloy steeel etc.

Size: Up to 5000mm

Treatment of Prevent Oxygenizement: Oil, Panit, Galvanization or based the willing of customers

Packing: Wooden case, sea-worthy plywood pallets or as per customers requirement

item	standard No.	size	PN	Type	Material
1	ANSI B16.5	1/2" --24"	150-2500LBS	BL, SO, SW, LJ, WN, THD	A105, A350LF2, A182 F11A182 F304/F304L, F316/F316L
2	LONG WN	1/2" --24"	150-2500LBS	Long welding-neck	A105, A350LF2, A182 F304/F304L, F316/F316L
3	ANSI B16.47 A(MSS SP-44)	26" --60"	150--900LBS	BL, WN	A105, A350LF2, A694, A182 F304/F304L, F316/F316L
4	BS3293-1960 STANDARD	26" --48"	150-600LBS	SO, WN	A105, A350LF2, A182 F304/F304L, F316/F316L
5	ANSI B16.47 B(API605)	26" --60"	75--900LBS	BL, WN	A105, A350LF2, A182 F304/F304L, F316/F316L
6	ASMEB16.36 STANDARD	1" --24"	300--2500LBS	SO, WN, THD	A105, A350LF2, A182 F304/F304L, F316/F316L
7	AWWA C207	4" --144"	Class B, D, E, F T/1	PL	A105, A181 A36, A516Gr. 60, 65, 70
8	EN1092-1: 20002 STANDARD	DN10-4000	PN2.5, 6, 10, 16, 25, 40, 63, 100	TYPE01, 02, 04, 05, 11, 12, 13, 21, 32, 33, 34	EN10025(S235JRG2), EN10222-2AND3 (P245GH ANDP280GH), EN10222-5(1.4303, 1.4306, 1.4307, 1.4401, 1.4404, 1.4435, 1.4541, 1.4571) A105/C21/1.0432 C22.8/ P150GH/1.0460
9	BS4504 SEC. 3.1/1989 STANDARD	NS15-2000	PN2.5, 6, 10, 16, 25, 40	CODE101, 102, 104, 105, 111, 112, 113, 121, 132, 133, 134	BS970 070M20 BS4360 GR. 43A BS1503-164 GR. 490 BS 1503-224 GR. 410 BS 1503-304S11 304S31 321S31 316S31 316S11
10	BS10-1962 STANDARD	NB10-3000	TABLE D/ E /F/H/J	SO THD BL WN	BS1501-161 GR. B AND C BS1633 GR. B BS 1503-240 GR. 240 BS 1503-620 BS3604
11	ISO 7005-1 STANDARD	DN10-4000	PN2.5, 6, 10, 16, 20, 25, 40, 50, 110, 150, 260, 420	TYPE01, 02, 03, 04, 05, 11, 12, 13, 14, 15, 21, 32, 33, 34	ISO2604-1 F8 F9 F13 F18 F22 F49 F62 F46 F59
12	NFE29203 STANDARD	DN10-600	PN2.5, 6, 10, 16, 20, 25, 40, 50, 100, 150, 250, 420	TYPE01, 02, 03, 04, 05, 11, 12, 13, 14, 15, 21, 32, 33, 34, 35	NFE29204 BF 42 BF42N BF48 BF48N
13	JIS B2220 STANDARD	10A-1500A	PN5K, 10K, 16K, 20K, 30K	SOP(PL) SOH(SO A B C ) WN	JIS G3101 SS41 JIS G3201 SF40A(S20C) AND SF45A(S25C) JIS G3202 SFVC1 AND SFVC 2A
14	DIN STANDARD	DN10-4000	PN2.5, 6, 10, 16, 25, 40, 64, 100, 160	SO, BL, PL, WN, LOOSE, THD	RST37.2/1.0038/ DIN17100C22.8/1.0460 A105/C21/1.0432 1.430 1.4307 1.4401 1.4404 1.4541 1.4571/DIN17440

As a small private company, Cangzhou Xingye Pipe Fitting Co., Ltd was born in 1990 with only 10 employees. Through its more than 20 years ongoing improvement on product quality, production technology, inspection precision and after sales services, it has evolved into an industrial leader and renowned manufacturer for flange and fittings with more than 150 skilled workers, 20 professional technicians and 30 office staff today.

Our comprehensive product inventory is from welding neck flange, slip-on flange, threaded flange, blind flange, socket welding flange, ASME/ANSI flange, DIN flange, JIS flange, EN flange, butt weld fittings, carbon steel fittings, alloy fittings and pressure fittings.

Quality is the prime concern in Xingye. A strict quality management system is implemented to control each phase of production. With the great help of our highly technical and qualified staff, we are able to offer a superior quality range of products. The state-of-art manufacturing equipment assists us in providing products as per customers' specific requirement and exceeds customer's expectation.

We, Cangzhou Xingye Pipe Fitting Co., Ltd would like to establish business relations with the valuable customers from all over the world on the management philosophy of "quality is first and client is highest". Please contact us freely by mail, phone or fax if you need any items of our products, we will give you the 100% satisfaction!
