Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Material: |
Carbon Steel |
Surface Preparation: |
Polishing |
Casting Method: |
Thermal Gravity Casting |
Product Description
Lost-wax casting is an ancient technique for replicating an object in metal. In casting a hollow piece, the interior of a mold is coated with layers of wax and the core of the wax shell is filled with heat resistant material. When heated, the wax drains off to leave a cavity that will later be filled with molten metal. A solid piece can be cast by encasing a solid wax model to form a casting mold. The process is also known in art as cire perdue and in industry as investment casting.
Examples of lost-wax casting have been found in multiple cultures dating to 3, 000 BC. The technique itself has essentially remained the same over the years. The components used have evolved from the original bronze, beeswax and pottery clay to modern alloys and synthetic materials.
Typically, the procedure begins with the creation of a model either by hand or by injection into molds taken of an original design. Wax or a similarly workable material is usually used. A mold of the result suitable for metal casting is then made. The interior of the mold is the exact negative image of the model. This allows any detail that can be worked into the model to be reproduced in metal.
Item |
Description |
Contents |
Lost wax casting mould |
Mold core material |
S45C ,Aluminium Alloy etc. |
Mold core treatment |
Vacuum hardening |
Mold base material |
45#, 50#, etc. |
Mold base treatment |
Thermal refining |
Max mould |
|
Leading time |
50 days |

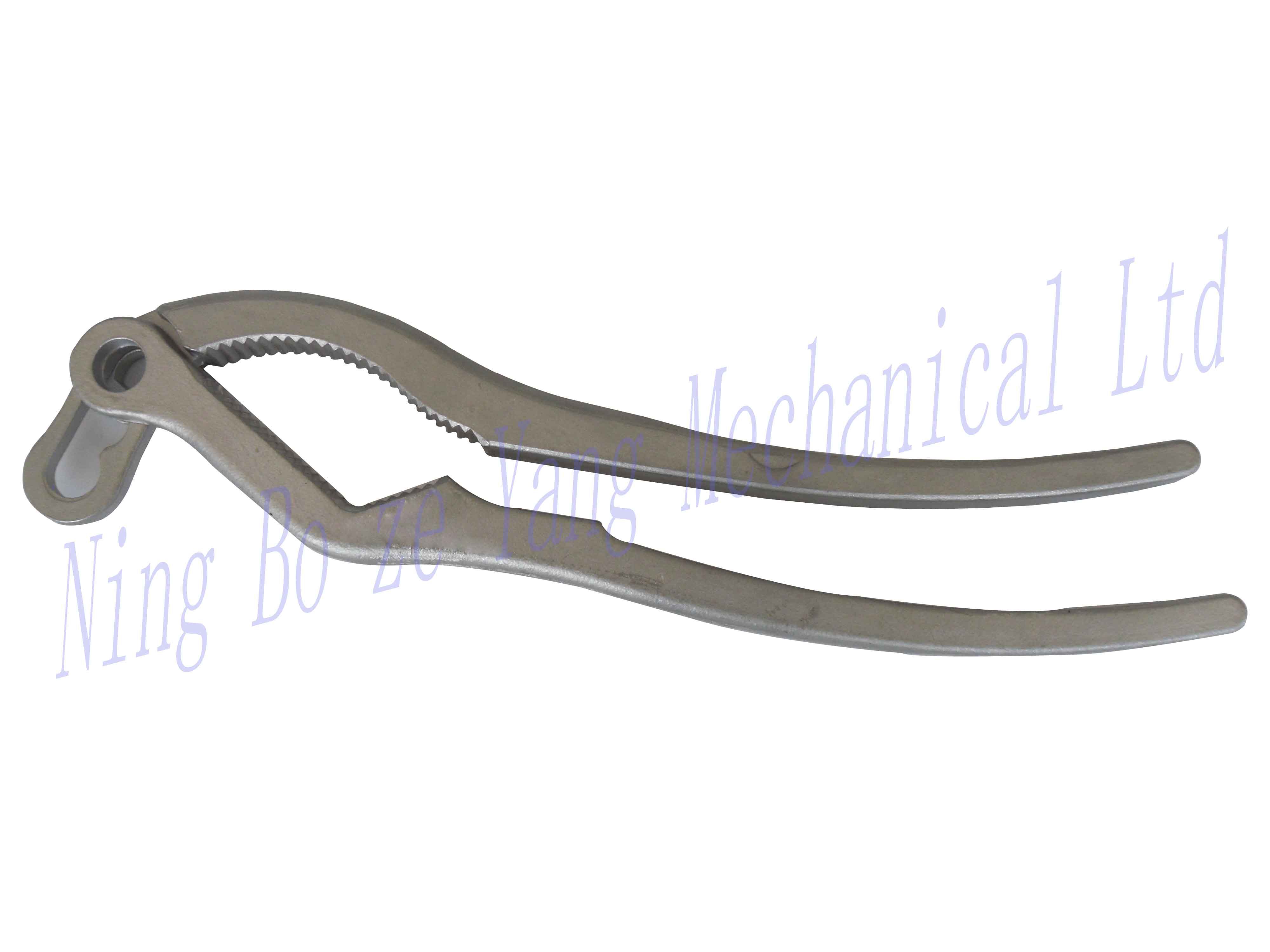

Lost wax casting parts |
Name: |
Nutcracker |
Material: |
Stainless steel |
Surface treatment: |
Polishing |
Package: |
Bubble Pack & Carton & Pallet |
Capacity: |
2000/month |
MOQ: |
200pcs |
Industry: |
Household |
Production Equipment |
Electric discharge machines /EDM: |
LCG703D2 16P DA7140 |
|
BM70 DA7135 |
|
BM50 EDM3540M-A |
Toshiba die casting machine |
|
LKTECH die casting machine |
|
Natural gas concentration meling furnace |
|
CNC amchining center: |
TMC-960 TMC-900 |
|
HTM-850G HTM-1500G |
CNC lathe: |
L-5A C6250A |
|
C0632A DB7155 |
Infiltration production line |
|
Shot-blasting machine |
|
Carving machine: |
DC-42 DC-2007 |
Knee type milling machine : |
X6130A 500T |
|
X53K 400T |
Grinding machine: |
MT140/G 280T |
|
M7163*12G/GM 160T |
Shot-blasting machine |
|
Testing Equipment |
Ultrasonic washing equipment |
1SET |
High-precision CMM |
3SET |
Spectrograph |
1SET |
X-ray flaw detector |
1SET |
Salt fog tester |
1SET |
Universal tensile testing machine |
1SET |
Roughness measuring instrument |
1SET |
Hardness tester |
1SET |
Projector |
2SET |
3000i Flexible 3D Measurement System |
1SET |
Rockwell Hardness Tester |
1SET |
Ningbo Jiangdong ZeYang Machinery Co., Ltd. is engaged in comprehensive multi-business, industry and trade integration of mold designing & manufacturing, aluminum alloy and zinc alloy casting, precision machining, heat treatment and surface treatment. It's located in No. 16-1 Zhousudu Road Jiangdong, Ningbo, China. Our own factory-Ningbo High-tech Zone Sansheng Aluminum Co., Ltd was established in 1998. We got export license at year 2008 with name of ZeYang. Our worldwide sales cover Canada, USA, Germany, Israel, France, Sweden, Norway, Italy, Chile, Peru, South Korea, etc. We are also qualified supplier of Flextronics. In 2012, we successfully set a new agent in Israel which is also responsible for worldwide sales.
From designing to delivery; From manufacturing to end testing; From single part to assembly, Zeyang people are full of enthusiam to focus on every single details to give every of our customers the star-level service!
We believe we can have a splendid cooperation in near future.
