| Prod Model: |
ingot mold |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Iron |
| Size: |
as Per Drawing |
| Shape: |
Round,Flat,Plum |
| Max Weight: |
50 Tons |
| Type: |
Steel-Making Equipment |
| Certification: |
ISO |
Product Description

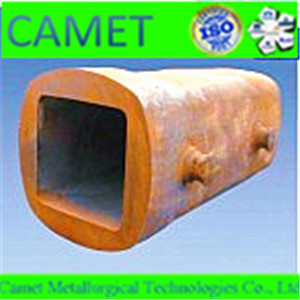

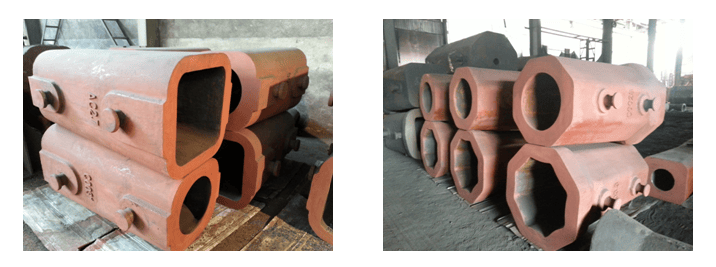

Steel casting ingot mold
DescriptionWe export cast iron ingot mould in various sizes and capacity made of ductile cast iron and vermicular cast iron. Resistant to cracks craze and distortion, our ingot mould has a long working life while low consumption, which meets the needs of heavy industry. These castings are highly durable and manufactured in compliance with the industry norms. Our castings are finished from all sides and provide excellent flexibility. We can also make these moulds in specific sizes and specifications to meet requirements of different application areas.
Specification
| Material | Max Weight (tons) | Shape |
| Grey Iron | 48 | Round, Square, Rectangular, Polygon |
| Ductile Iron | 30 |
Material
| Material | Code | C | Si | Mn | P≤ | S≤ | Mg | RE | ∑A≤ |
| Blast Furnace | Grey Iron | GHT1 | 4.10-4.90 | 0.40-1.20 | 0.40-1.00 | 0.1 | 0.05 | ~ | ~ | 0.3 |
| 3.80-4.90 | 0.40-1.20 | 0.40-1.20 | 0.15 | 0.07 | ~ | ~ | ~ |
| Rare Grey Iron | GHT2 | 3.80-4.90 | 0.40-1.20 | 0.40-1.00 | 0.1 | 0.05 | ~ | 0.01-0.03 | 0.3 |
| Ductile Iron | GQT | 3.60-4.70 | 0.80-1.80 | 0.40-1.00 | 0.1 | 0.03 | 0.02-0.06 | 0.01-0.04 | 0.3 |
| Material | Code | C | Si | Mn | P≤ | S≤ | Mg | RE | ∑A≤ |
| Cupola Furnace | Grey Iron | CHT1 | 3.30-3.90 | 1.20-1.80 | 0.60-1.20 | 0.15 | 0.1 | ~ | ~ | 0.3 |
| CHT2 | 3.40-4.10 | 1.10-1.80 | 0.40-1.00 | 0.15 | 0.1 | ~ | ~ | 0.3 |
| Ductile Iron | CQT | 3.40-4.00 | 2.20-3.00 | 0.20-0.80 | 0.1 | 0.03 | 0.03-0.08 | ≤0.03 | 0.3 |
Material: ductile cast iron/vermicular cast iron.
Cross section: round/square/flat/polygonal/plate.
Inner wall: convex/concave/plate/wave.
Size and weight: outer, inner size and thickness of ingot.
Mould customized as per client's drawings.
